Product Item: Heavy Duty 70 Tons 4 axle low bed trailer
Why choose our lowbed trailer?
1. Durable Material
The main frame of lowbed trailer is made of 16Mn high-tensile steel, reasonable structure, superior carrying capacity and no permanent deformation; It can be reinforced according to using requirement.
2. High Performance
The axle,tyre and other accessories of 4 axle lowbed trailer are the well-known products which supplied by the domestic and foreign professional manufacturers.The quality can keep better.
3. Loading
The continuous improvement of structure makes it much accord with practical loading and unloading requirements. The lowbed trailer can be custom-built as your requirements. The payload of low bed trailers from 30 tons to 200 tons.
Quality guarantee
1. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.
2. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.
3. Spare parts support services is available
4. We able to design and produce the low bed trailer as your requirment,ensure to meet your local road regulation
Technical data:
|
Product:
|
4 Axle lowbed semi-trailer
|
|
Feature:
|
Carry containers, bulk cargo, equipments
|
|
Dimension(L*W*H):
|
15600*3200*2500mm (custom-built)
|
|
Main frame:
|
Heavy duty and extra durability design; High tensible low carbon alloy Q345B steel
|
|
Model:
|
SS9700TDP
|
|
No. of axle:
|
4
|
|
Payload:
|
40,000 to 70,000kgs
|
|
Kingpin:
|
The world-famous JOST brand bolt-in/welded type 3.5”/2”
|
|
Landing gear:
|
JOST brand two-speed manual operation 19”
|
|
Tire size:
|
11R22.5 (Optional)
|
|
Rim size:
|
9.00*22.5
|
|
Axle:
|
L1 Brand /Fuwa Brand
|
|
Suspension
|
Fuwa brand with 8pcs of leafs spring
|
|
Brake system:
|
Dual line Re-6 emergency relay valve, T30/30 air chamber, 46L air tank
|
|
Electric system:
|
One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
|
|
Container locks
|
12(for 1x20GP,2X20GP,1X40HQ)
|
|
Painting:
|
S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting
|
|
Accessory:
|
One tool box
|

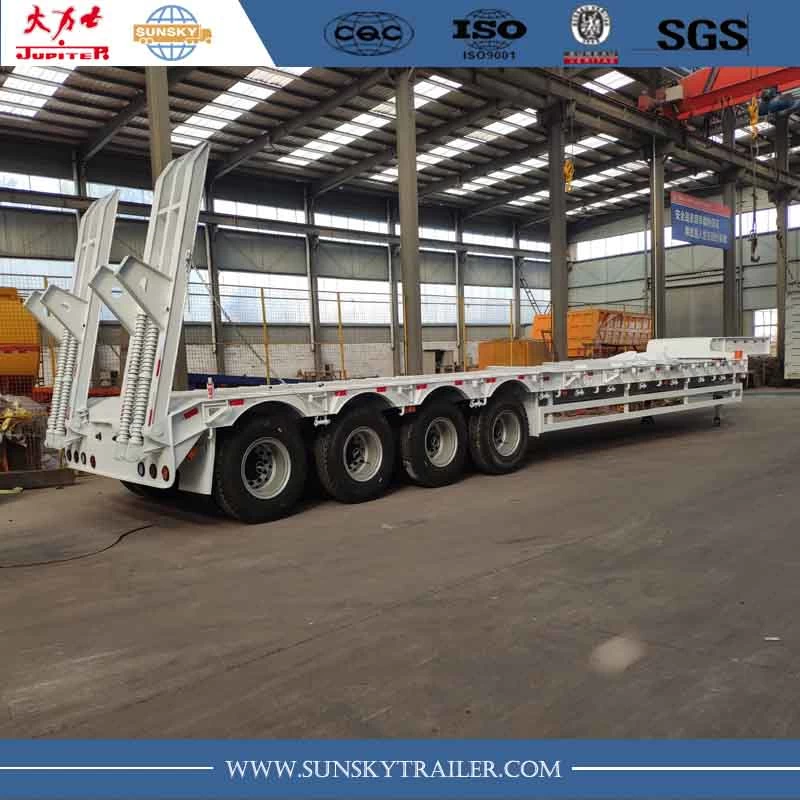

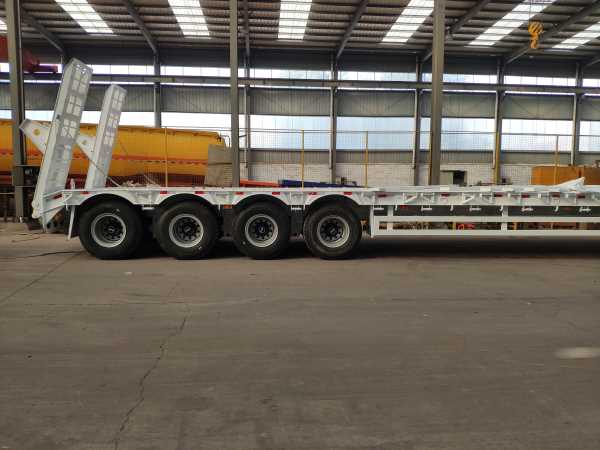

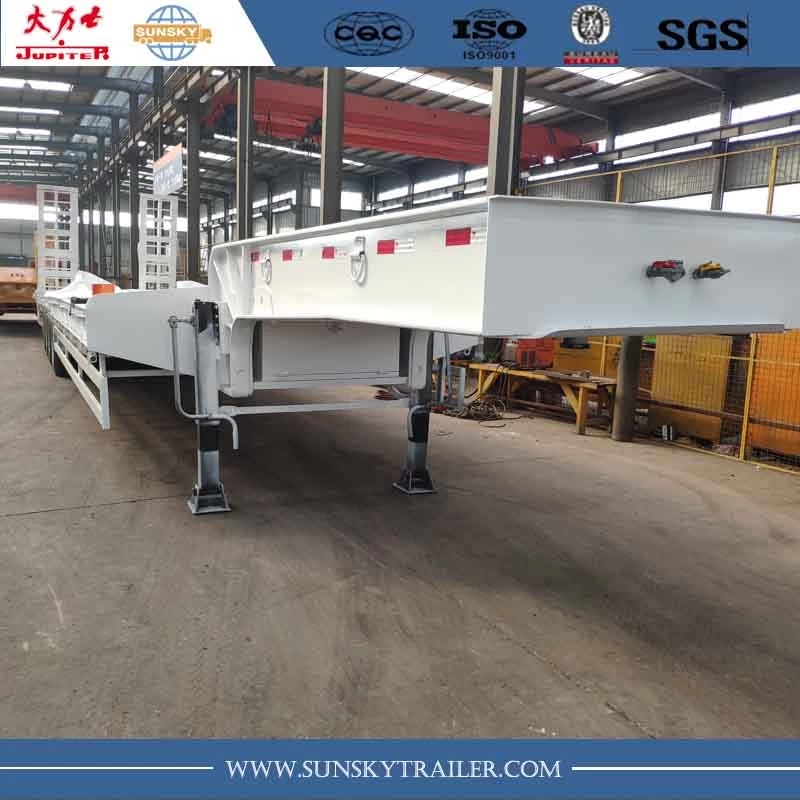

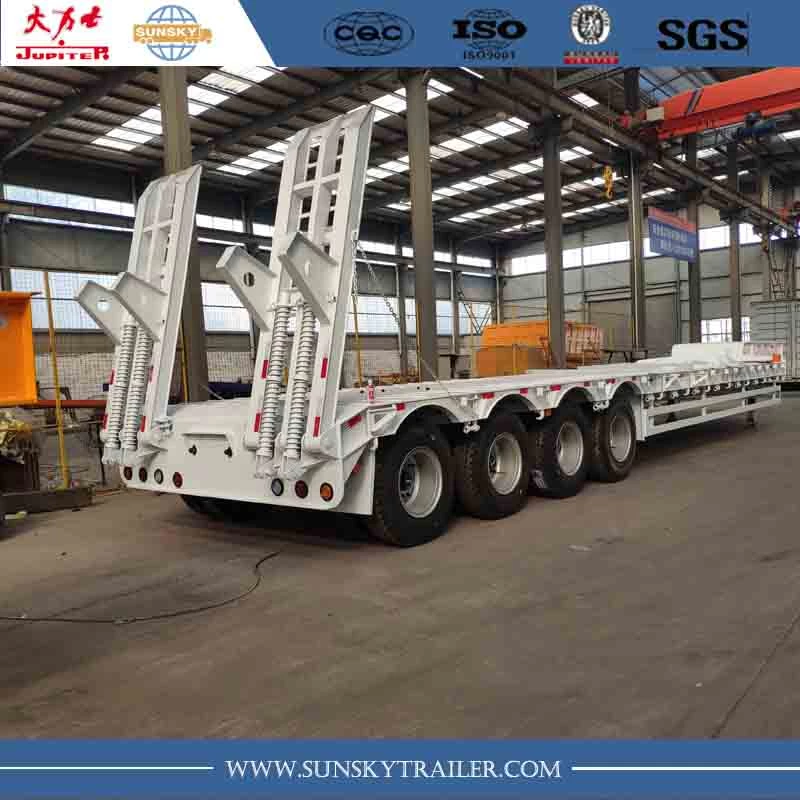

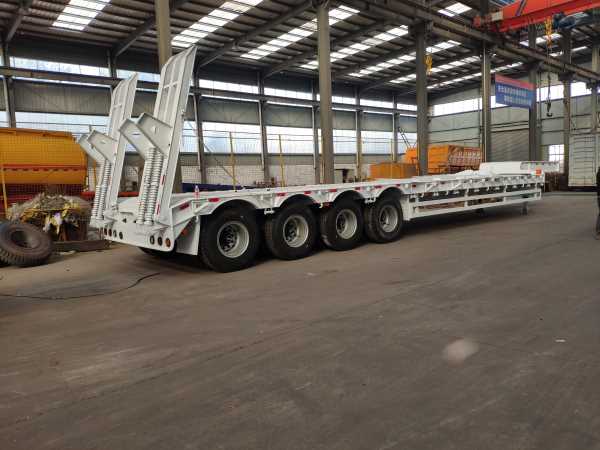

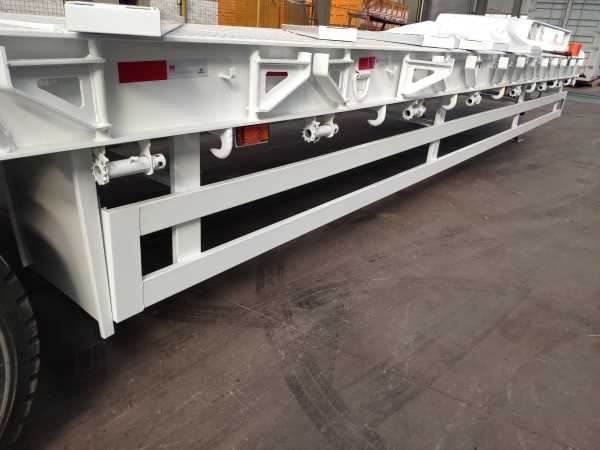

Detail Photo of 70 tons lowbed trailer
