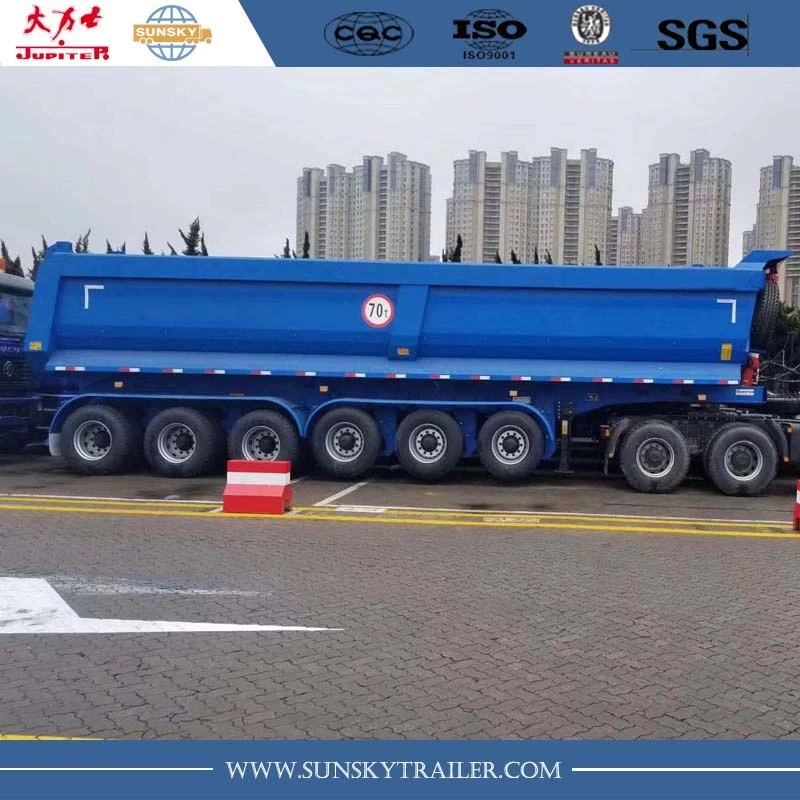

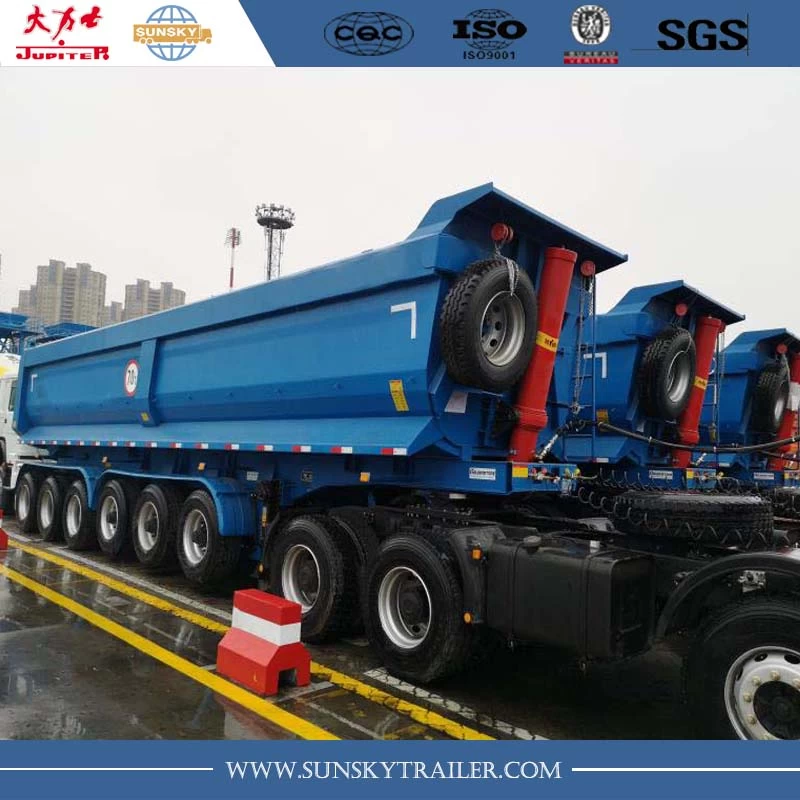

Item: Heavy Duty 70 Tons 6 Axle Tipper Trailer
Introduction of 6 axle tipper trailer
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1. Heavy duty and extra durability design. Opting high tensile low carbon alloy Q345B Steel. I beam welded by automotive arc-submerge process.
2. The main frame body is made of Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.
3. Use advanced over load design and welding technology for the chassis. Ensure the strong of trailer body. Make sure the tipper trailer still in good condition even in small overloading. The payload can be design max to 100 tons.
4. The tipper trailers equip full braking and electrical systems at home and abroad in accordance with ISO standard .Optional ABS system, braking, lighting is absolutely safe and reliable.
Quality guarantee
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1) Manufacturer,more than 30 years professional experience.
2) Two years guarantee term provided freely.
3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) We can produce the trailer and truck as your drawing or requirements, help you saving the cost and time.
Specification:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
|
Style
|
45CBM 6 Axle Tipper Trailer
|
|
Model
|
SS9700ZYX
|
|
Dimension(L*W*H)mm:
|
13500*2550*3700
|
|
Inner dimension(L*W*H)mm:
|
12000*2550*1600
|
|
The material of body
|
BS700MC high tensible 4mm
|
|
Payload(kgs):
|
70000
|
|
Volume(CBM)
|
45 CBM
|
|
Tare weight(kgs):
|
14500
|
|
Kingpin
|
JOST 3.5” bolt-in
|
|
Landing gear
|
JOST 19”
|
|
Tire and rim
|
315/80R22.5 and 385/65R22.5
|
|
Axle
|
Fuwa brand 14 tons ,3 Axle and 16 tons 3 Axle
|
|
Suspension
|
3 Axle Spring suspension Plus 3 axle airbag with lifting
|
|
Brake system
|
Re-6 emergency valve
|
|
Air Chamber
|
MBA T30/30
|
|
Hydraulic
system:
|
HYVA brand
|
