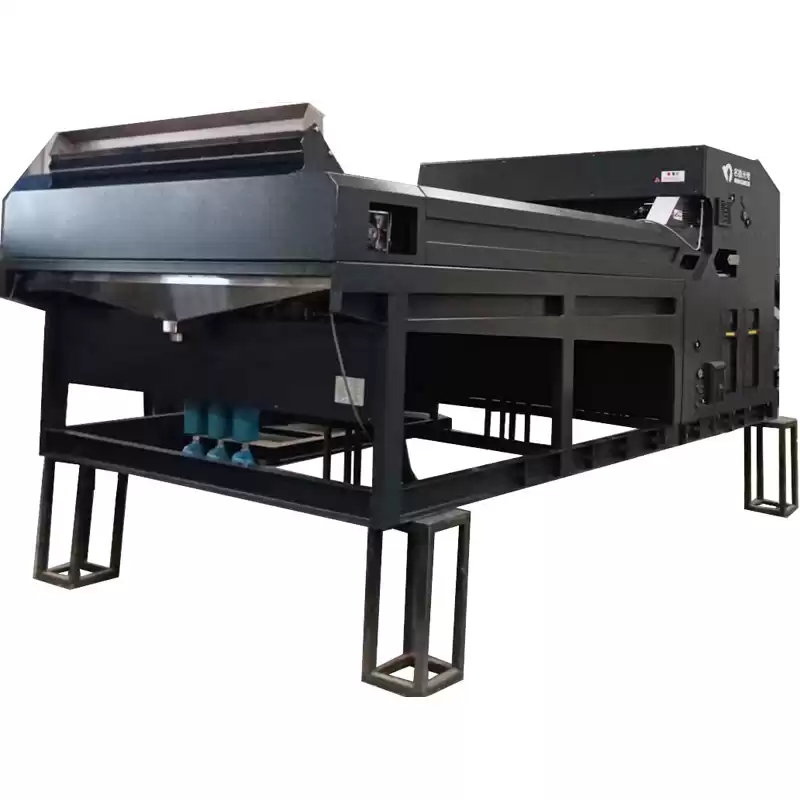

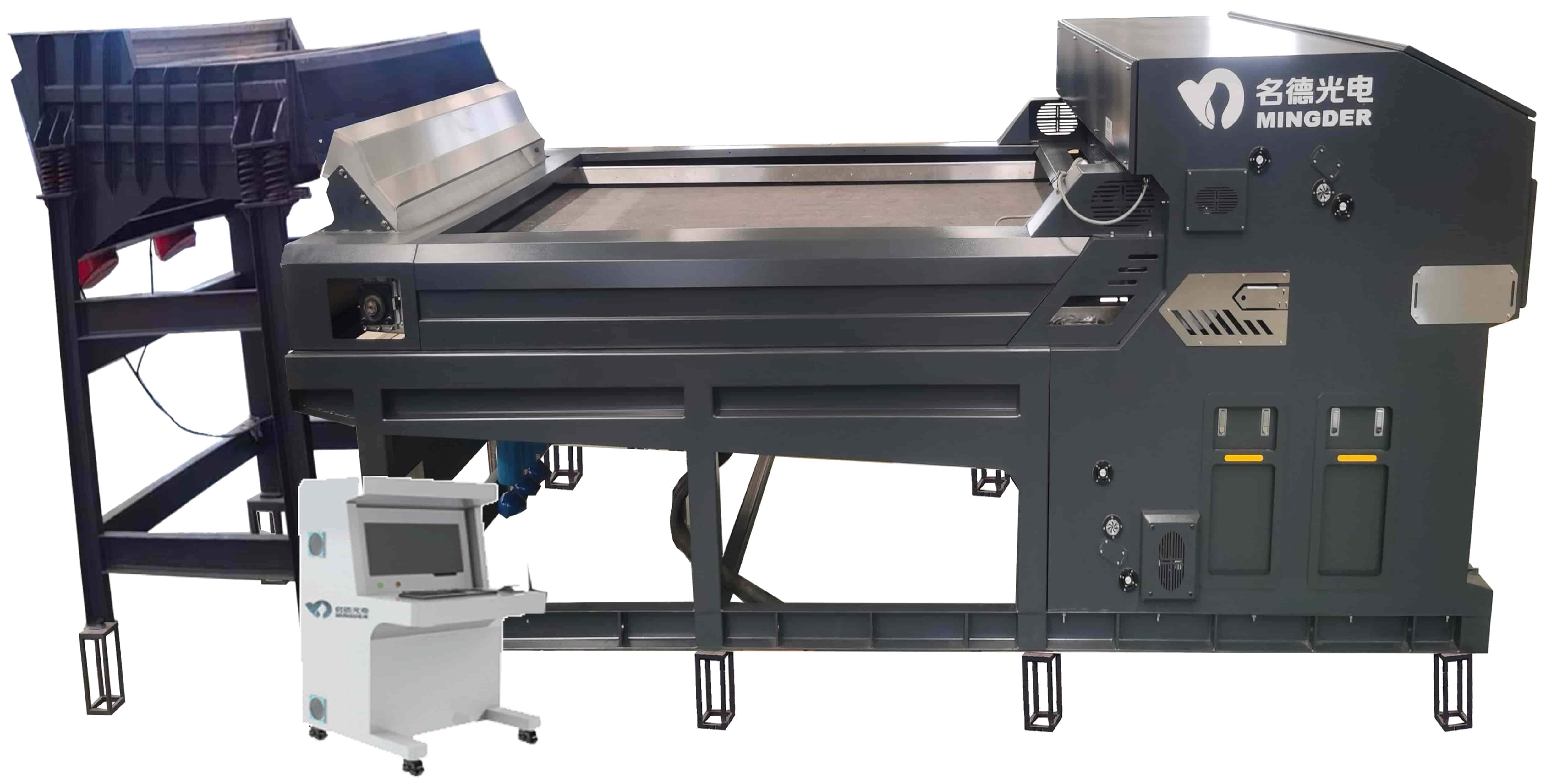

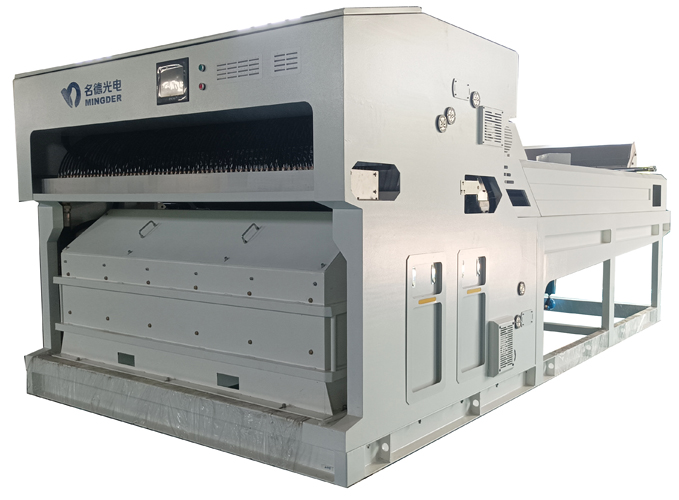

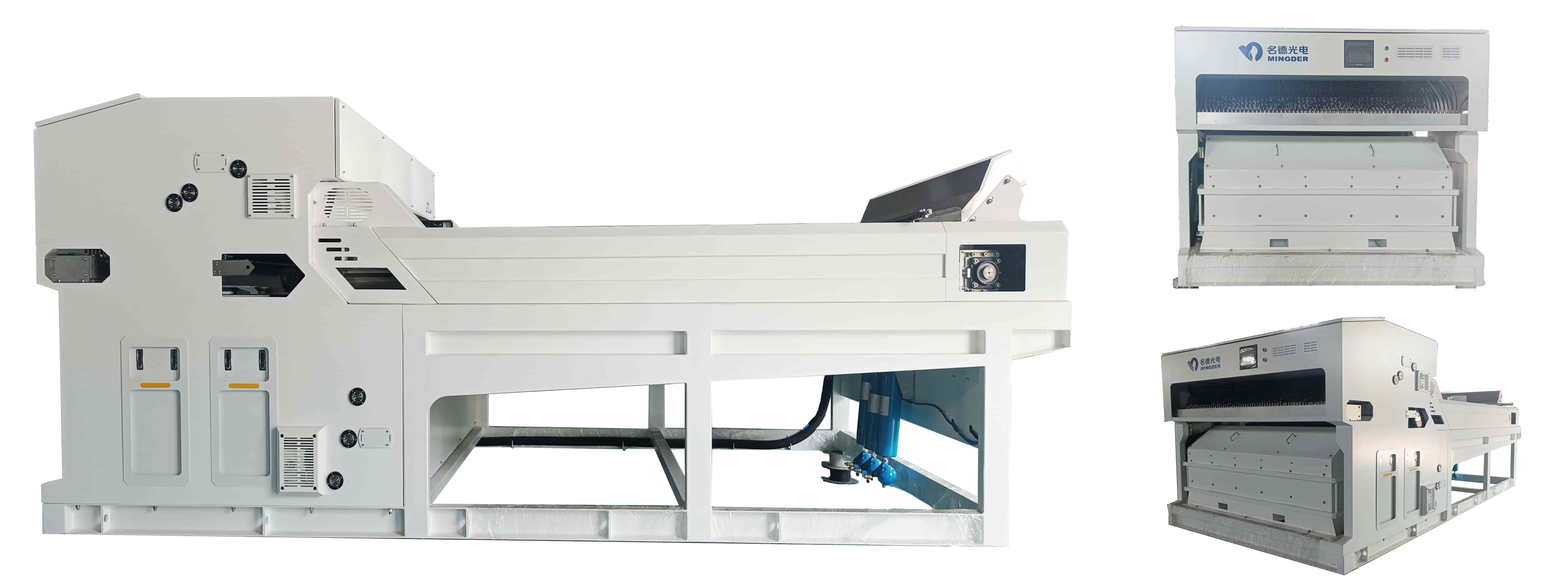

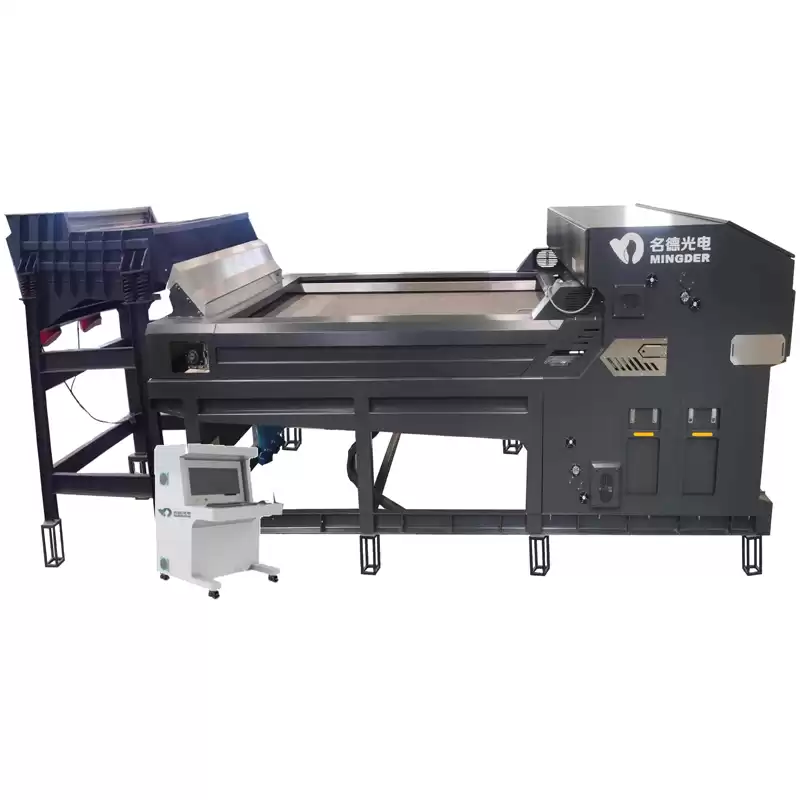

Heavy-duty Artificial Intelligence AI Ore Sorting machine MAI-TD6 ore sorting machine Mineral Separator
Heavy-duty ore color sorter MS-TD6
The new generation of Mingde MAI-TD6, MS-TD6 ore separator breaks through the existing ore separation technology, adopts heavy fast track design and has strong integration technology, which can sort large ore particles with high yield.
Taking metal silicon as an example, the particles selected are 3~8cm, and the hourly output can reach 50 tons. Compared with the traditional manual selection of metal silicon, the heavy artificial intelligence machine can quickly and stably separate the good and bad materials on the premise of reducing the cost of manual selection, which has the advantages of one-time investment, low operating cost and long-term high return.
In order to meet the requirements of different mineral separation, the equipment supports customized design, and is simple in operation, highly intelligent, and complete in after-sales service. Its application scope in the ore separation field covers various metals and nonmetals, such as silicon metal, talc, calcium carbonate, iron ore, phosphate rock, lead zinc ore, gold mine, etc. The intelligent ore separator can be used to separate ores that can be distinguished by eyes. It provides important technical support for improving efficiency, reducing cost and increasing income in ore separation field.
|
Model
|
Mineral particle size (cm)
|
Capacity
(T/H)
|
Air pressure (Mpa)
|
Sorting accuracy
|
Finished product Accuracy
|
Power(kW)
|
Dimension(mm)
|
Weight(kg)
|
|
MAI-TD6
|
3<d≤8
|
40~60
|
0.5~1.0
|
98
|
96%~98%
|
10
|
6790*2502*2190
|
4500
|
The above index is based on 15% impurity content Calcium carbonate as an example,The specific index varies with the material and impurity content.
Sortable ores
Applicable sorting ore materials
Talc, wollastonite ,calcite, quartzite
Fluorite, Potassium feldspar, Magnesite, Lithium pyroxene
Phosphate ore, Gold ore, High crystal silicon, oxide copper ore
Barite, bauxite ,lead-zinc ore and fluorite, barite lead-zinc ore
Medical Herbs ,grains
Not limited to the above ores, eye visible distinctions are applicable to AI sorting machines!
A wide range of sorting materials, can be applied to nuts, grains and cereals, Chinese herbs, dehydrated food and other materials sorting.
