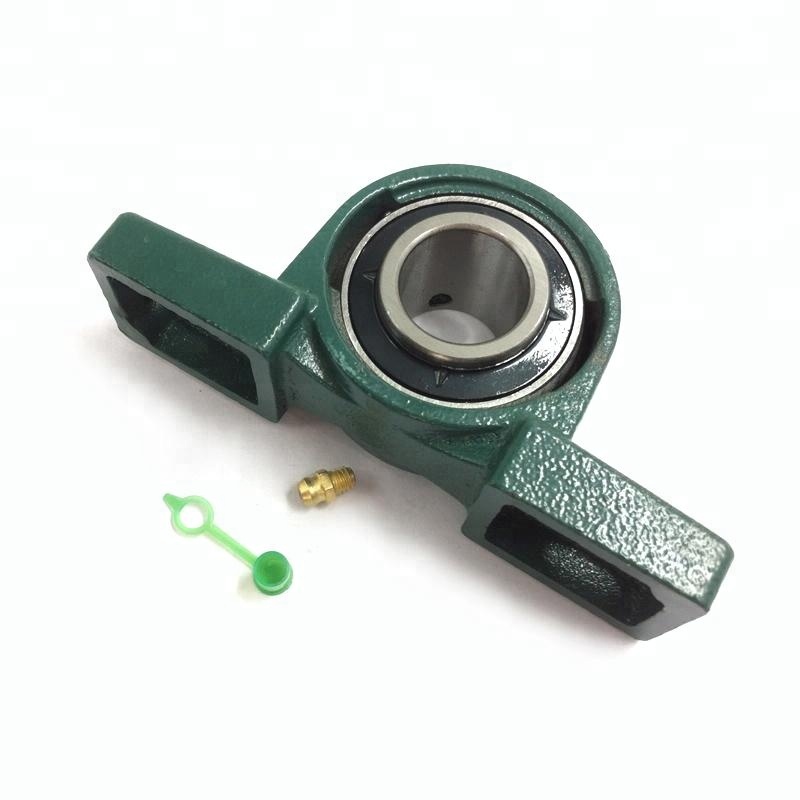

Pillow block bearing consist of outer spherical ball bearing and cast iron bearing seat. The internal structure of outer spherical ball bearing , in the outer ring, outer ring has a truncated spherical outside surface, with that surface ,this bearing can be adjust to match with different spherical surface of the bearing.Usually these bearings have a space between the inner hole and shaft, with the top silk, eccentric sleeve or be a set of bearing inner ring is fixed on the shaft, and with the axis of rotation.

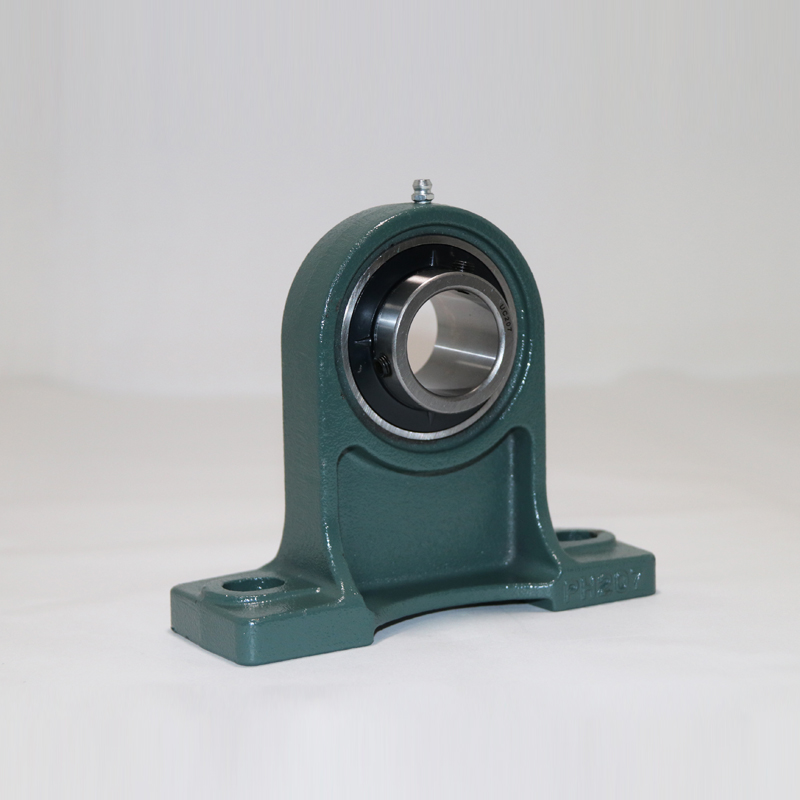

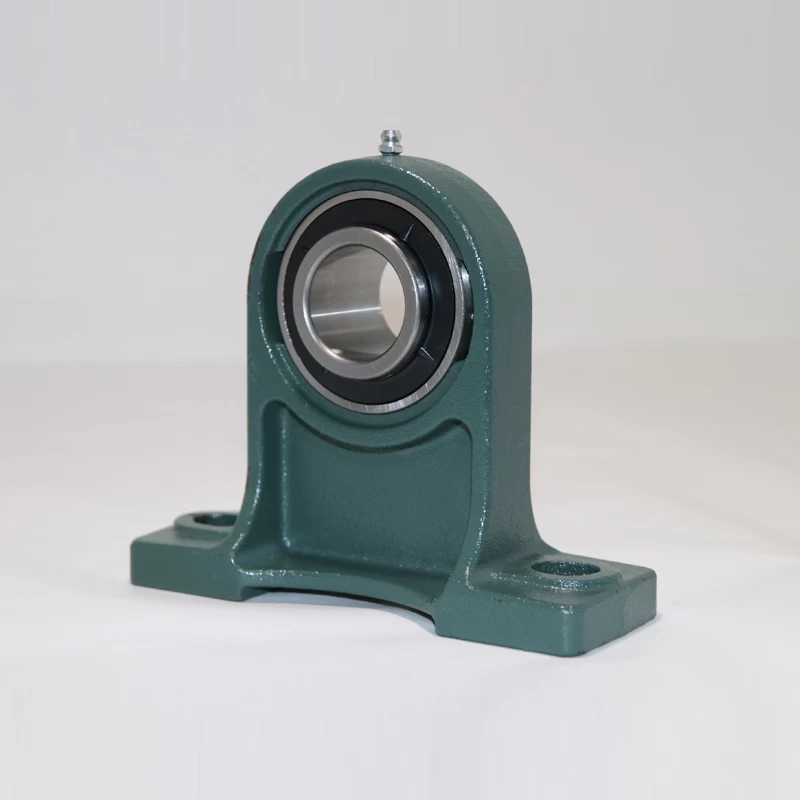

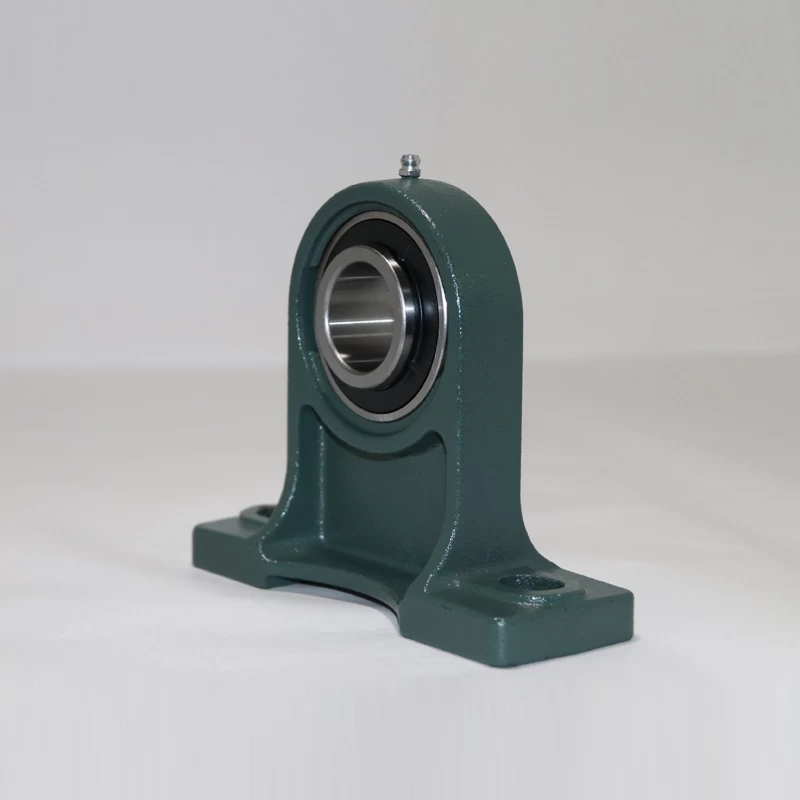

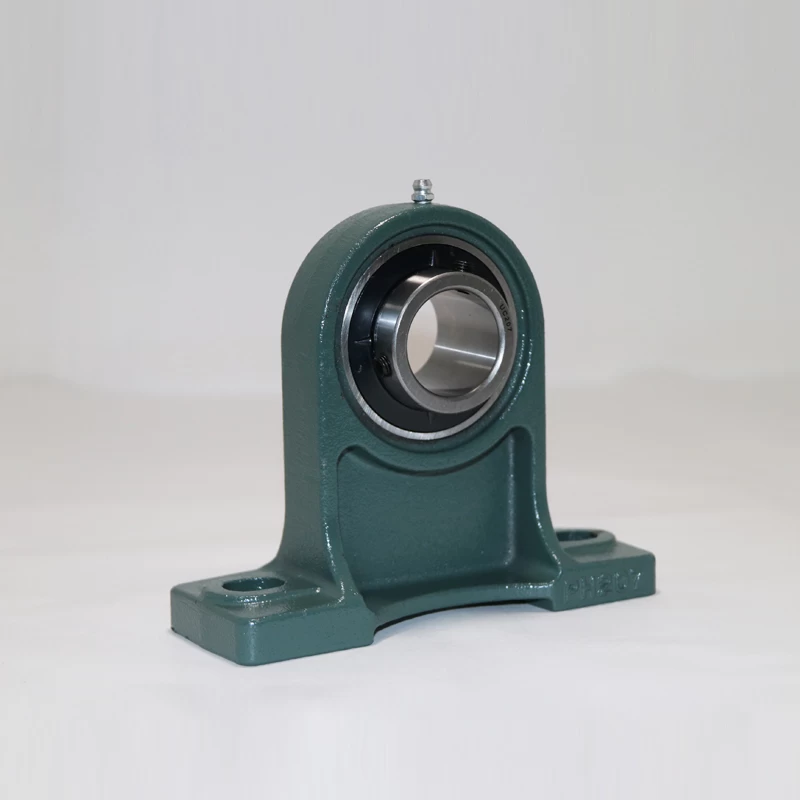

Bearing Housing UCPH208 Specification :
|
Product name
|
UCPH208 pillow block bearing
|
|
Brand
|
HGF,OEM
|
|
d(mm)
|
40
|
|
H(mm)
|
100
|
|
B(mm)
|
49.2
|
|
Weight(kg)
|
2.8
|
|
Material
|
Chrome steel/Stainless steel
|
|
Precision rate
|
P0 P6 P4 P5
|
Pillow Block Bearings With Housing Type:
China Bearing housing are also designed with a certain degree of self-alignment, they are easy to install, and have a double-structured sealing device that can work in harsh environments. There are many type of pillow block,such as vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat, etc. T).
1)Pillow blocks mounted bearings– these include UCP, HCP, UCLP, UKP, UCPX, and UKPX.

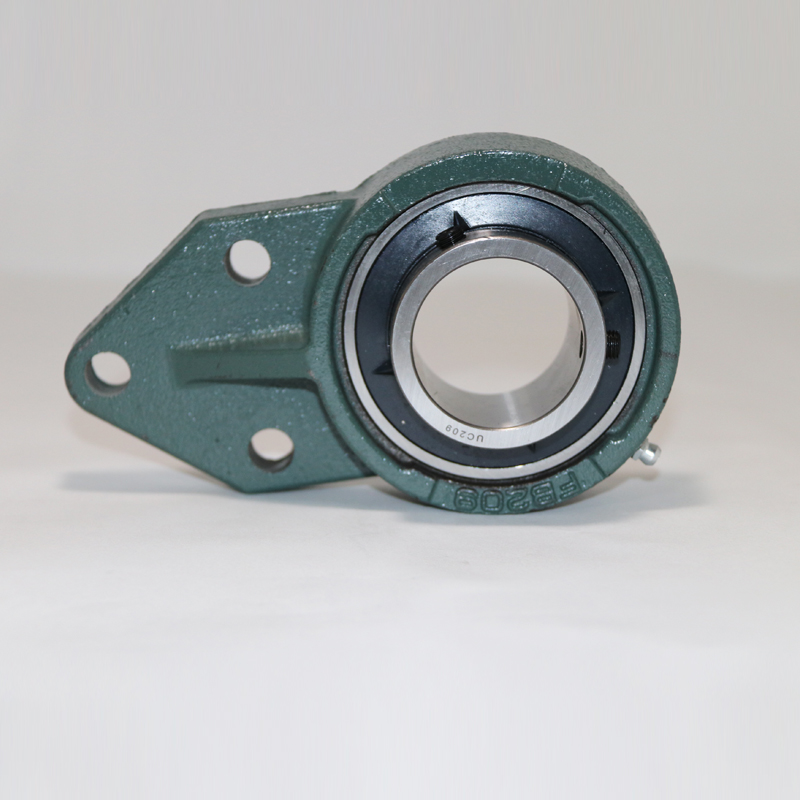

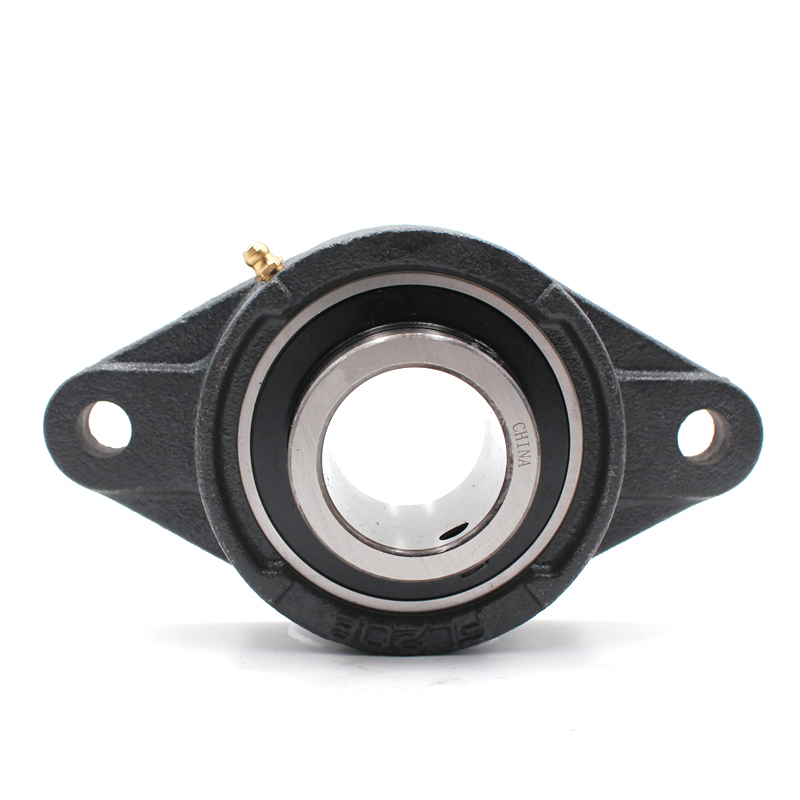

2)Flange type– includes UCF, HCF, UKF, UCFX, UKFX, UCFU, UCFC, UKFC, UCFS, UCFL, UKFL, UCFT.
These bearing housing are with square ,round types

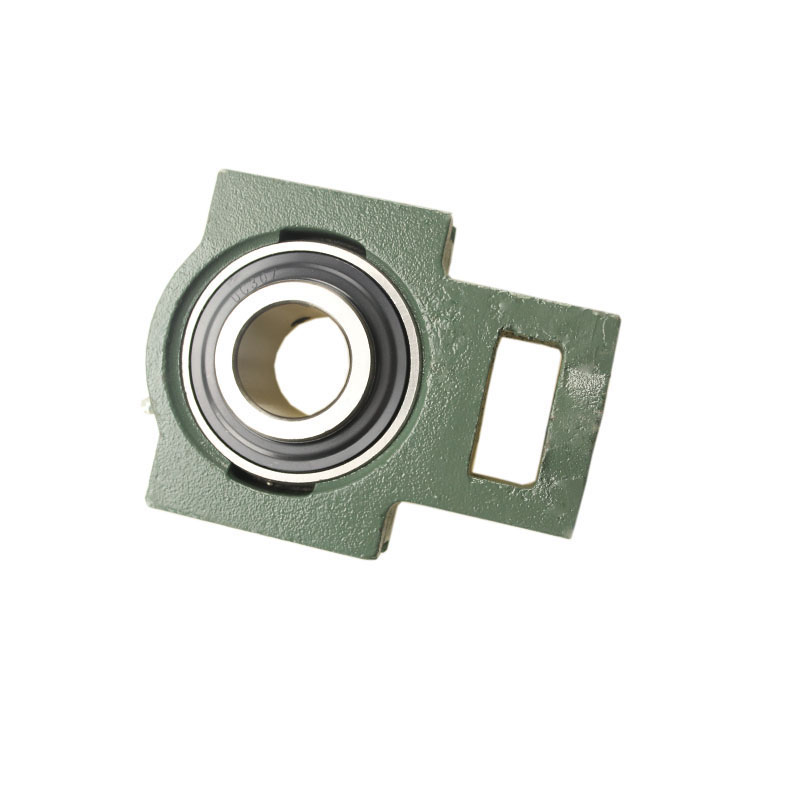

3)Take-up units type - UCT, HCT, and UKT.
These bearing housings are widely used in conveyor chains and conveyor belts.
China Best Bearing With Housing Bearing Number :
|
New Items
|
Longth x Width x Height (mm)
|
weight
|
|
UCPH201
|
127x40x101
|
0.96
|
|
UCPH202
|
127x40x101
|
0.96
|
|
UCPH203
|
127x40x101
|
0.96
|
|
UCPH204
|
127x40x101
|
0.96
|
|
UCPH205
|
140x50x114
|
1.2
|
|
UCPH206
|
161x50x130
|
1.6
|
|
UCPH207
|
167x60x140
|
2.1
|
|
UCPH208
|
184x66x149
|
2.7
|
|
UCPH209
|
190x70x157
|
3.1
|
|
UCPH210
|
204x70x165
|
3.5
|
|
UCPH211
|
217x75x181
|
4.07
|
|
UCPH212
|
236x80x197
|
6.31
|
We professional chinese bearing unit manufacturer in China ,we also are can provide other brand bearing units such as ,TNT ,NSK,IKO,NACHI ASAHI Pillow Block Bearing.
Pillow Block Bearing Applications:
Bearing housing with compact structure, convenient loading and unloading, perfect sealing, suitable for simple support are often used in below area:
1)Agriculture,
2)Light textile,
3)Mining,
4)Food &beverage,
5)Pharmaceutical,
6)Chemical processing,
7)Printing,
8)Dyeing,
9)Various kinds of conveying and rolling devices.
If you need quotation for bearing housing,pls feel free to contact with us ,bearing housing is main of our products .
