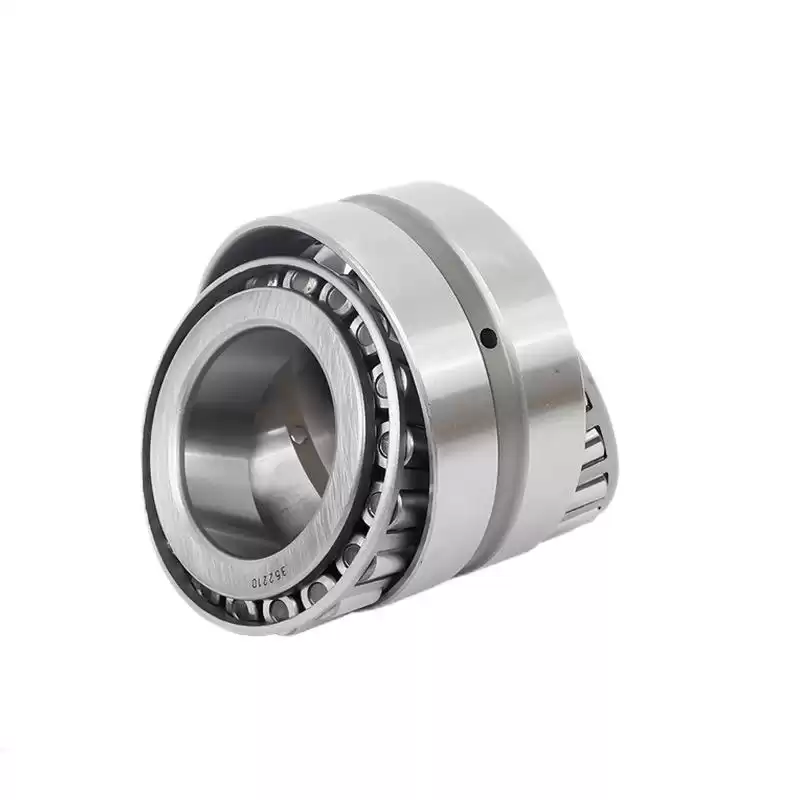

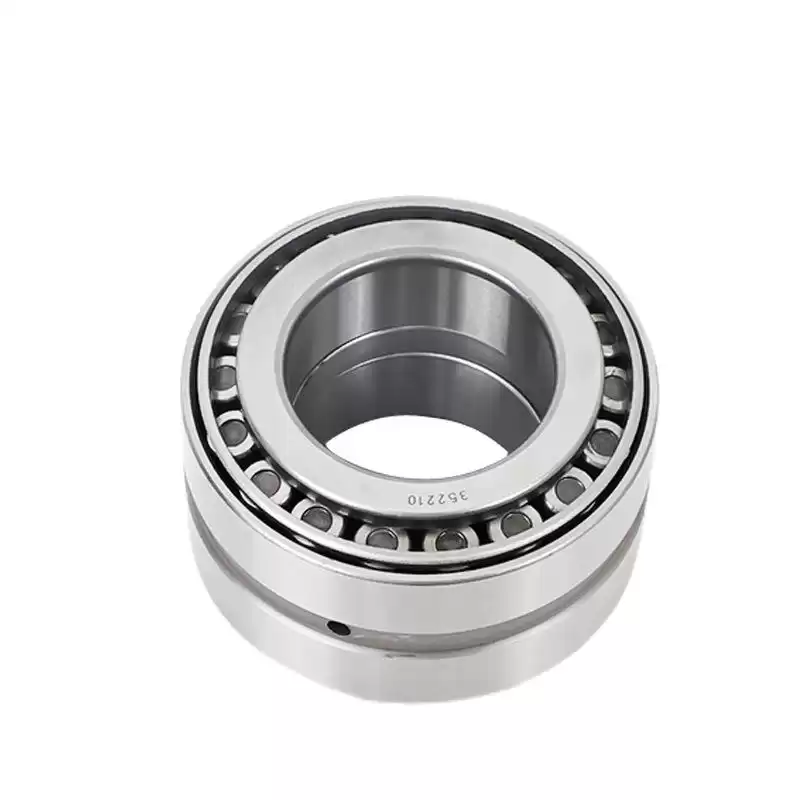

Heavy-duty Double Row Tapered Roller Bearings

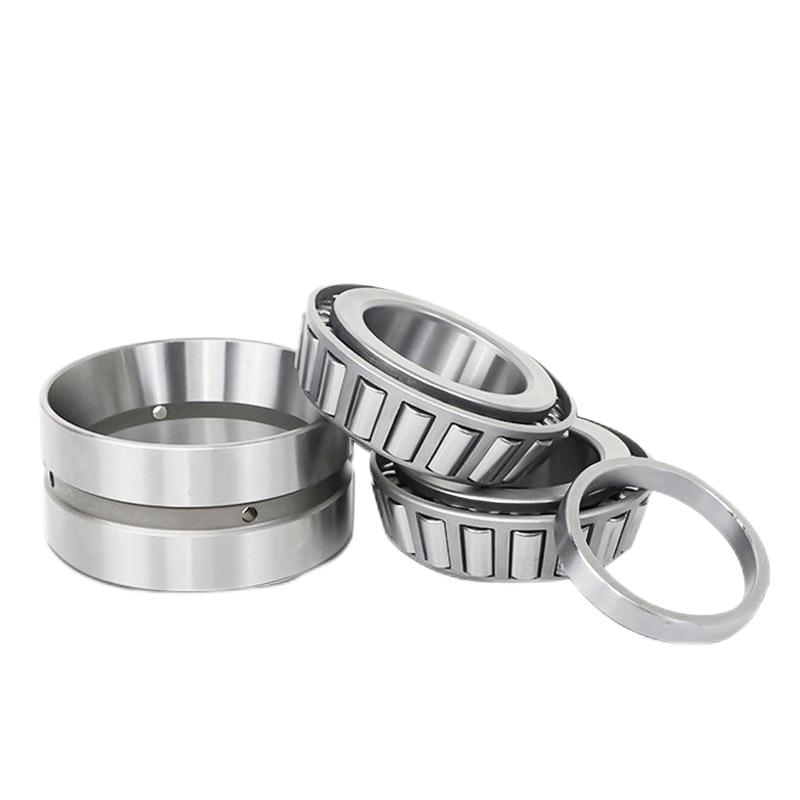

Tapered roller bearings consist of four interdependent components: the cone (inner ring), the cup (outer ring), the tapered rollers (rolling elements) and the cage (roller retainer). Tapered roller bearings are uniquely designed to manage both thrust and radial loads between a rotating and non-rotating member. The steeper the cup angle, the greater the ability of the bearing to handle thrust loads.
This double row tapered roller bearings can bear two-way axial load while bearing radial load. its clearance has been adjusted before the product leaves the factory, so it can be installed directly without adjusting the clearance. the double-row tapered roller bearing can limit the axial displacement of the bearing in both directions relative to the bearing seat within the axial clearance range of the bearing.
WIS Taper Roller Bearings Features :
- High quality bearing steel: not easy to rust and has high hardness, wear resistance, and corrosion resistance
- Super quiet effect: Exquisite technology, exquisite workmanship, coordinated operation of engineering and machinery, with good quiet effect
- Fine workmanship: The surface edges of the product are smooth, and the model is clearly engraved for customers to better identify
- Various models
Application :
It is widely use for
- Automobiles
- Agricultural machine
- Rolling mills
- Mining industry
- Plastic machinery
- Trailers and caravans
Display:
Double Row Taper Roller Bearings Size Chart :
|
Bearing No.
|
Principal Dimension
|
Weight
|
|
d
|
D
|
B
|
kg
|
|
352208
|
40
|
80
|
55
|
1.21
|
|
352209
|
45
|
85
|
55
|
1.55
|
|
352210
|
50
|
90
|
55
|
1.34
|
|
352211
|
55
|
100
|
80
|
1.36
|
|
352212
|
60
|
120
|
75
|
1.34
|
|
352213
|
65
|
120
|
15
|
3.39
|
|
352214
|
70
|
125
|
75
|
3.51
|
|
352215
|
75
|
130
|
75
|
3.64
|
|
352216
|
80
|
140
|
80
|
4.97
|
|
352217
|
85
|
150
|
85
|
5.67
|
|
352218
|
90
|
160
|
95
|
7.46
|
|
352219
|
95
|
170
|
100
|
9.02
|
|
352220
|
100
|
180
|
112
|
10.7
|
|
352221
|
105
|
190
|
115
|
13.7
|
|
352222
|
110
|
200
|
125
|
16.4
|
|
352224
|
120
|
211
|
132
|
19.1
|
|
352226
|
130
|
230
|
150
|
26.5
|
|
352228
|
140
|
250
|
158
|
30.6
|
|
352230
|
150
|
270
|
170
|
40.4
|
|
352232
|
160
|
290
|
180
|
46.2
|
|
352234
|
170
|
310
|
192
|
58.2
|
|
352236
|
150
|
320
|
190
|
62.7
|
|
352238
|
190
|
340
|
204
|
69.8
|
|
352240
|
200
|
360
|
218
|
93.3
|
Advantage of WIS Bearing:

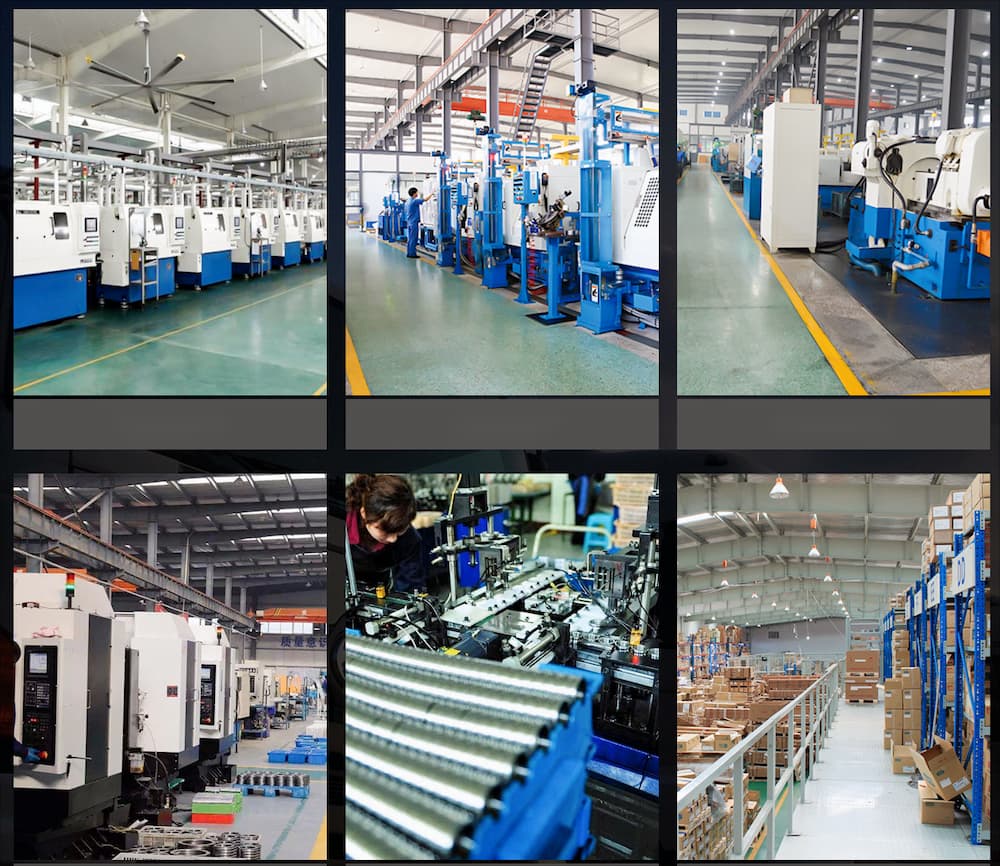

With over 15 years bearing industry experience ,we have perfect group pf technical engineers give you best support
- Competitive price and small MOQ
Direct manufacturer of bearings can offer you lowest price with small MOQ
WIS bearings can provide OEM and ODM service as to your sample or drawings.
We focus on quality during production and guarantee 100% quality inspection before delivery
WIS bearings give you on time delivery
