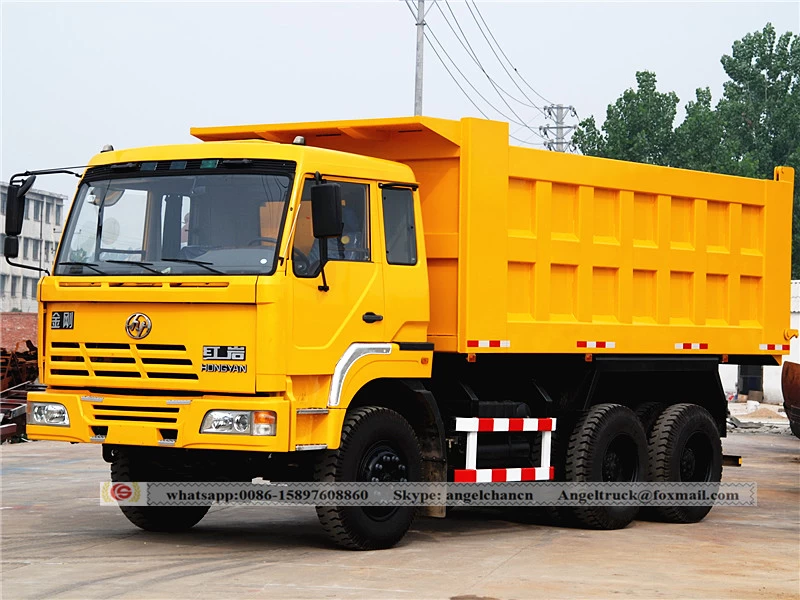

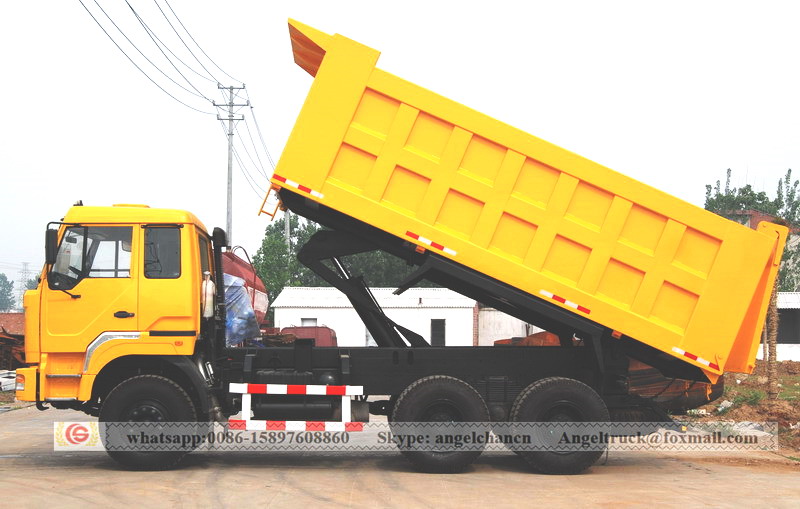

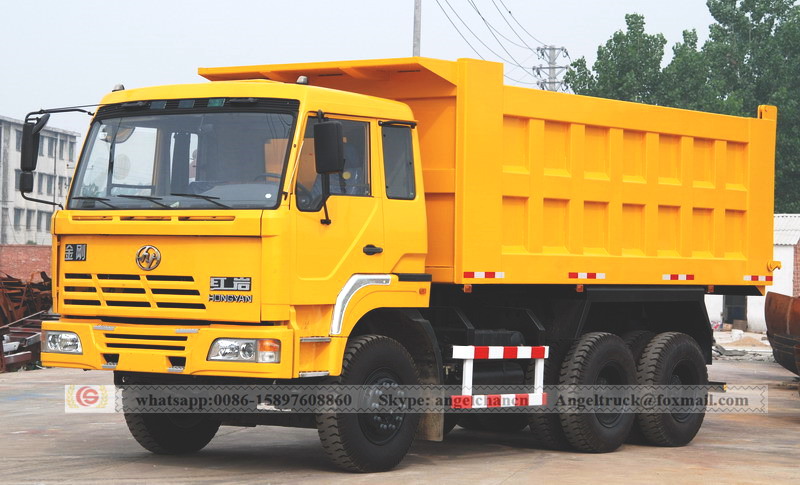

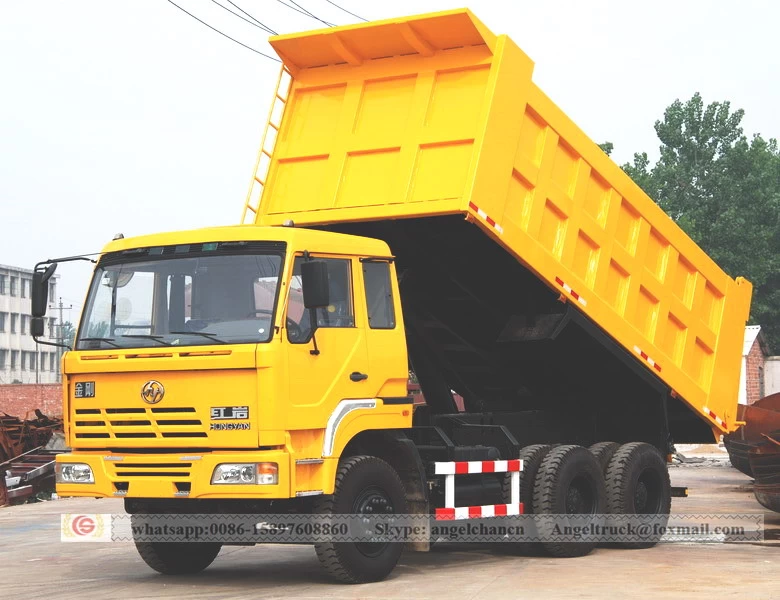

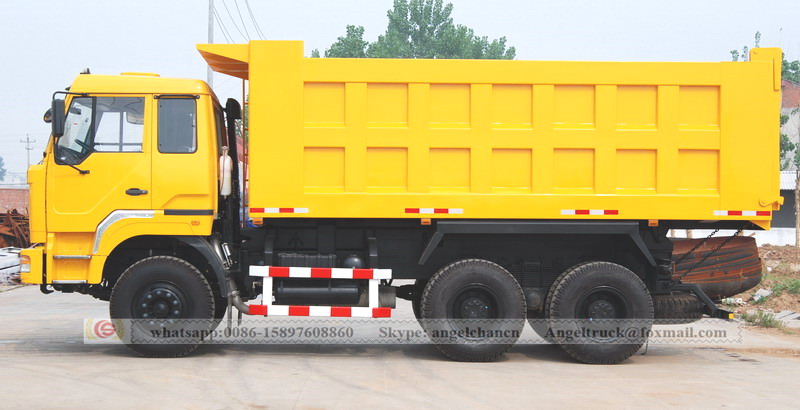

Heavy Duty Dump Tipper Truck 20 CBM IVECO
Dump truck is a vehicle that unloads goods by hydraulic or mechanical lifting. Also known as a dumper. It consists of automobile chassis, hydraulic lift mechanism, cargo box and retraction device. The car of the dump truck is divided into two types: backward overturning and lateral overturning. The movement of piston rod is controlled by the control system, and the backward tilting is more common, and the piston rod is pushed to overturn the carriage, and a few two-way tilting is achieved.
Truck description:
CNCSC dump truck (include dumper,tipper lorry,heavy duty tipper truck, dump tipper truck, dump tipper,dump lorry) is suitable for mining and rock excavation and construction site to transport sand ,stone,bulk material,coal,wood,and etc.
Advantage:
1. High quality carbon steel plate,high strength cargo box.
2. Different cargo box shape, “U” type,Grid shape,or as request.
3. Box dioxide protected welding ensure good appearance and reliable quality.
4. China famous brand cylinder.
5. Emission standard: Eruo II, Eruo III, Eruo IV,Eruo V
6. Drive type:Left hand drive,Right hand drive
Technical Specification:
We are able to custom manufacture Tipper Truck in a wide range of sizes and capacities as per customers' requirement.
IVECO Dump Truck 20 CBM
|
Truck Description |
Type |
6X4 dump truck |
||
|
GVW (kg) |
25000 |
|||
|
Kerb weight (kg) |
15110 |
|||
|
Overall dimension (mm) |
Length |
8560 |
||
|
Width |
2490 |
|||
|
Height |
3150 |
|||
|
Box dimension (mm) |
Length |
5800 |
||
|
Width |
2300 |
|||
|
Height |
1600 |
|||
|
Chassis |
Number of axles |
3 |
||
|
Air conditioner |
For option |
|||
|
Type of fuel |
Diesel |
|||
|
Engine brand |
IVECO |
|||
|
Exhaust/output |
8709ml/280kw |
|||
|
Tire specification |
12.00-20,12.00R20 for option |
|||
|
Tire quantity |
10+1 (with spare tyre) |
|||
|
Cargo box |
Material |
Q235 carbon steel |
||
|
Thickness |
Side (mm) |
8 or changed as request |
||
|
Bottom(mm) |
10 or changed as request |
|||
|
Other remark |
Above specification is just for reference,please send us your request details. |
|||
|
Contact us |
Ms.Angel chan E-mail:Angeltruck@foxmail.com whatsapp: 0086 15897608860 Skype: angelchancn |
|||
CNCSC truck is China leading professional truck manufacturer, we offer you various heavy duty truck, trailer and truck parts. contact us and get a detail of our trucks.
