Heavy Duty Steel Metal Highway Guardrail Roll Forming Machine

Heavy Duty Steel Metal Highway Guardrail Roll Forming Machine is for roll forming 2.5-3.0mm thickness w beam shape guardrail for highway barriers. It is heavy duty and each station driven by gear box system.


  • Cutting Blade MaterialCr12Mov
  • Roller MaterialGCr15
  • Shaft Diameter95mm
  • Driving Motor30KW
  • Forming Station16 station
  • Material Thickness2.5-3mm


Product Name: Heavy Duty Steel Metal Highway Guardrail Roll Forming Machine

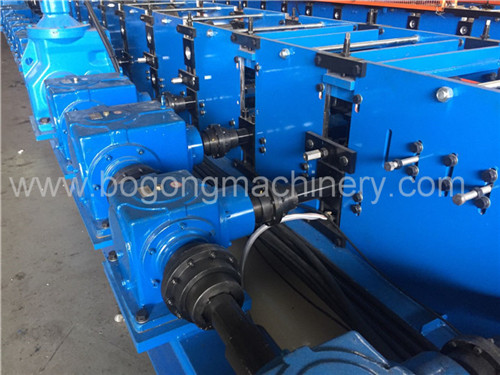

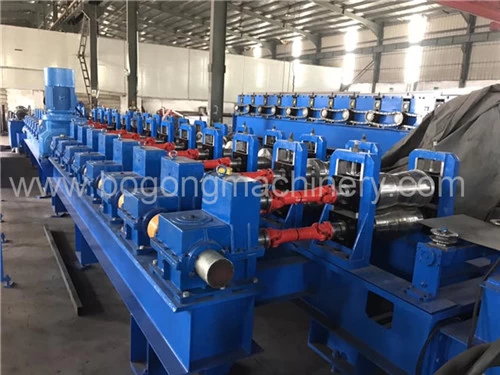

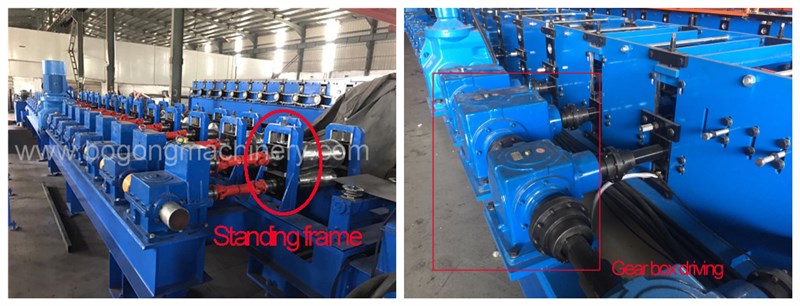

This heavy duty steel metal highway guardrail roll forming machine chooses standing frame types, all the standing frame are made from cast iron, it is more stronger than others. Whole highway guardrail roll forming machine includes 16 stations roll forming, and each station with one gear box driving to ensure the power is strong enough.

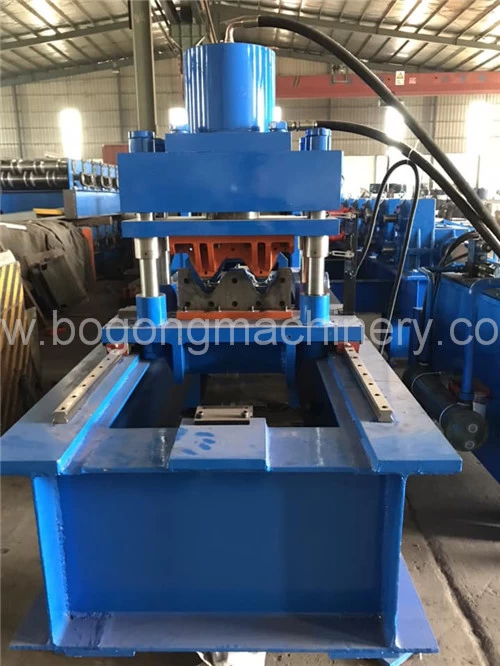

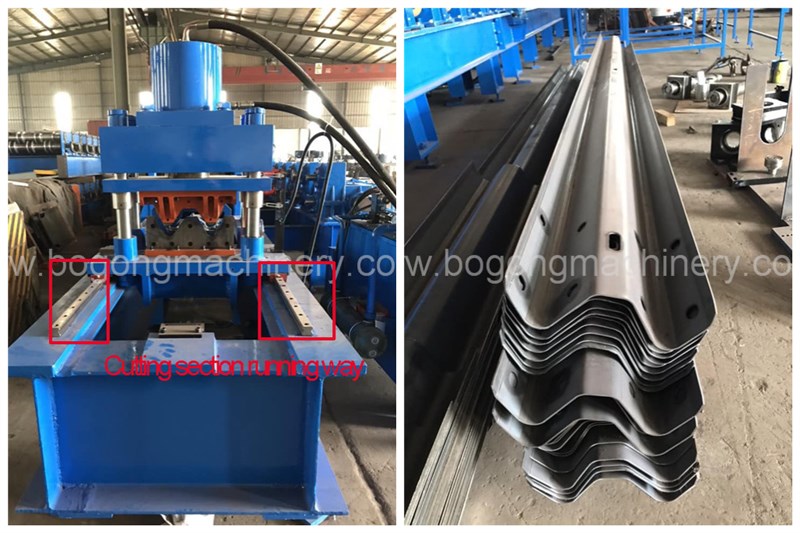

We have made cutting section running ways at cutting end, the whole cutting section will run together with guardrail samples a small distance, this can increase the producing line working efficiency. This Heavy Duty Steel Metal Highway Guardrail Roll Forming Machine is pneumatic type cutting, no waste cutting, the buyer needs prepare on air compressor at working site.

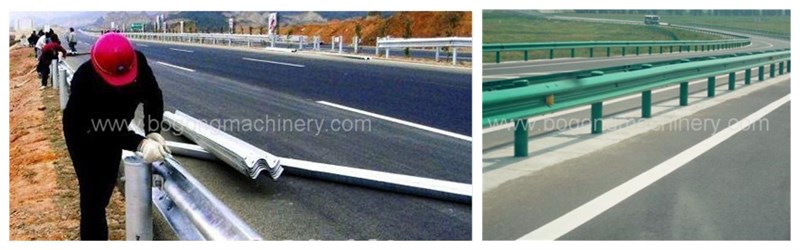

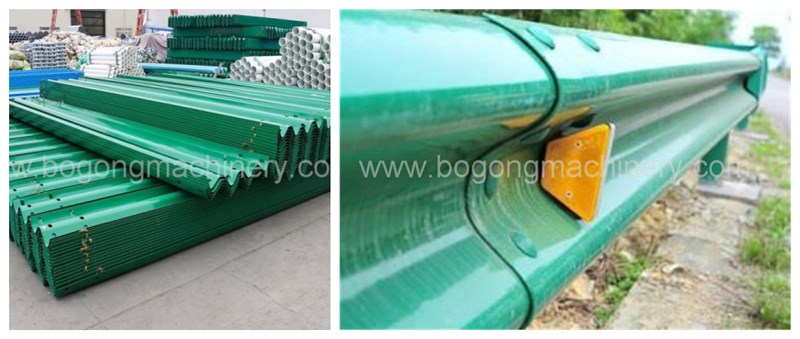

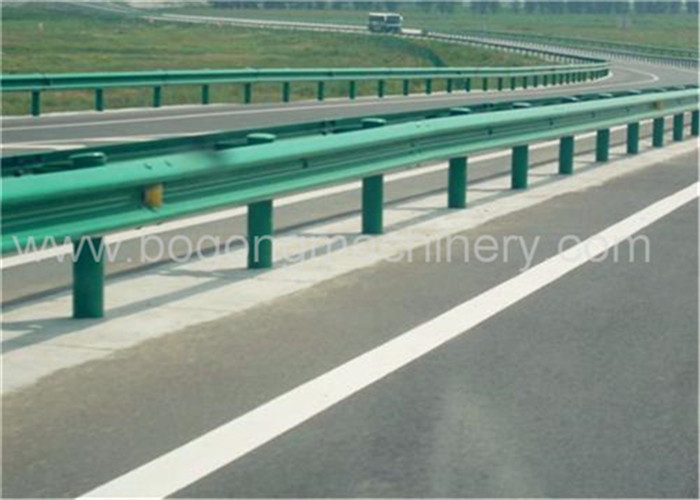

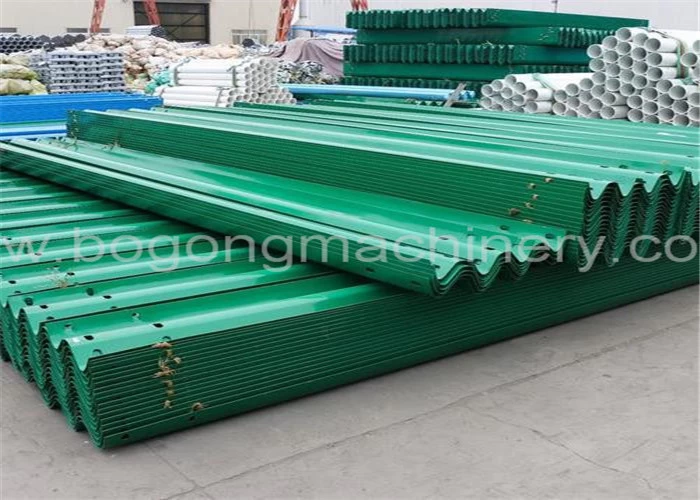

Highway guardrail samples and used in highway site, each pieces of sample as installed and connected by holes, the hole shapes and numbers can be customized designed also.



Technical Parameter

Parameters Specification
Voltage 380V/50HZ/3PH or custom
Driving Motor 30KW
Hydraulic Cuting Motor 15KW
Frame Type Standing frame
Forming Steps 16
Working Speed 15-20m/min
Thickness for Steel 12.5-3.0mm (GI Steel G550)
Shaft Diameter 95mm
Shaft Material High grade 45# forged steel
Roller Material GCr15 steel with polished and heat treatment
PLC Cabinet Schneider, Delta
Encoder Omron
Sprocket Wheel 45 steel high-frequencies quench
Cut-off System Post punching post cutting
Cutting Blade Material

Cr12Mov

Machine Frame Material Fine welded structural steel;
Roofing Material GI steel, hot-dip steel
Painted Color Blue+Gray White Or Customization
Overall Size 9000*1400*12500mm
Weight 150000KGS
