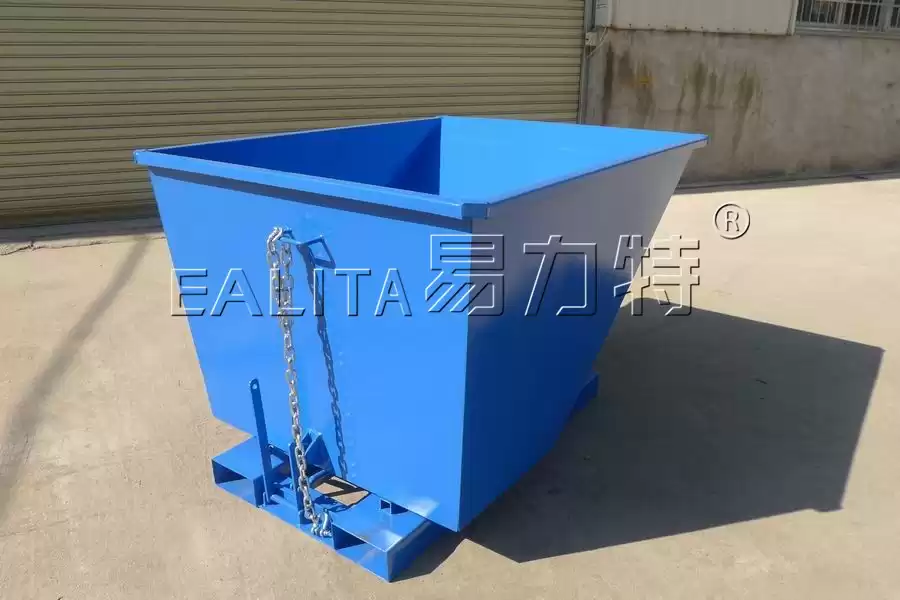

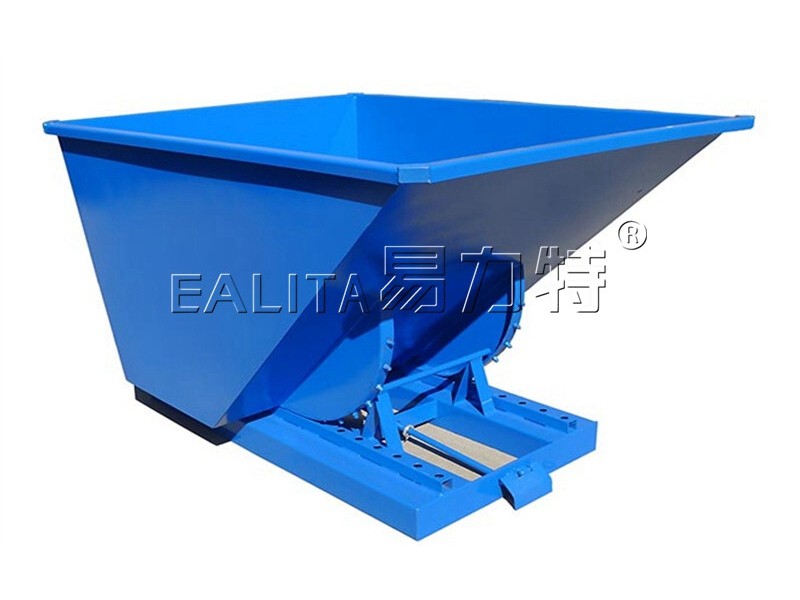

Tipping containers are the industry’s best tool for waste sorting, waste and material handling.
- Designed, reinforced and powder coated to provide maximum safety and service life.

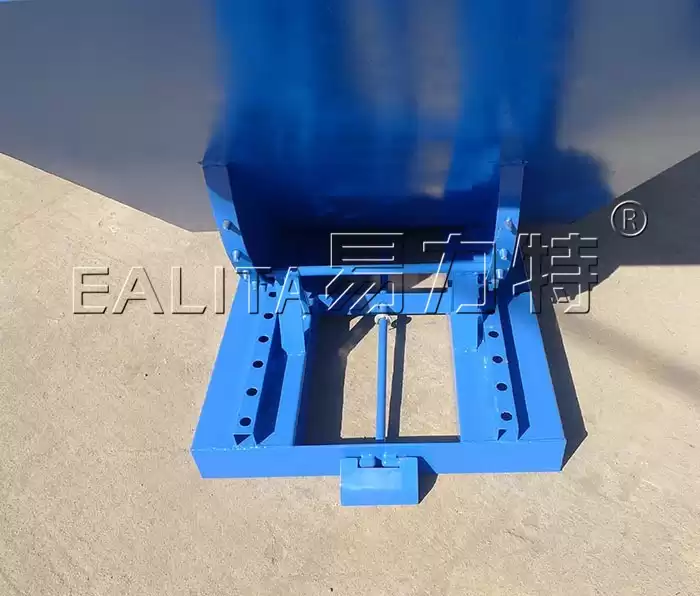

- Spring pressure plate on the base frame for automatic emptying.
- Also with manual tipping.
- Other sizes are manufactured on request.
TIPPO have reinforcements in the right places in order to deal with rough truck handling.
- Corner reinforcements raise the stiffness of the containers.
- Reinforced fork channels.

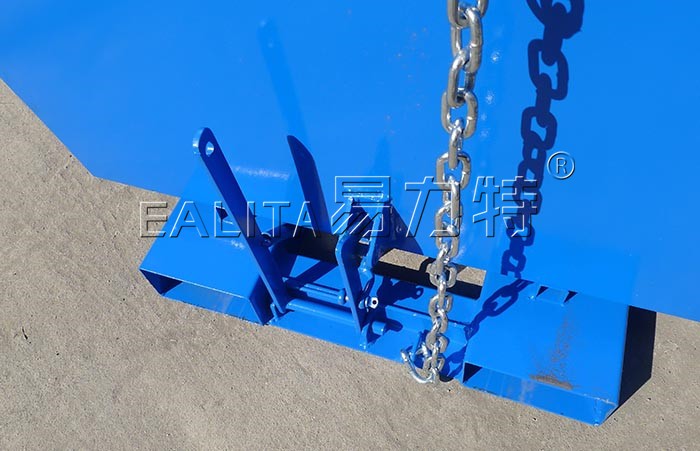

- The stop lug is well dimensioned in order to deal with the forces it can be exposed to.

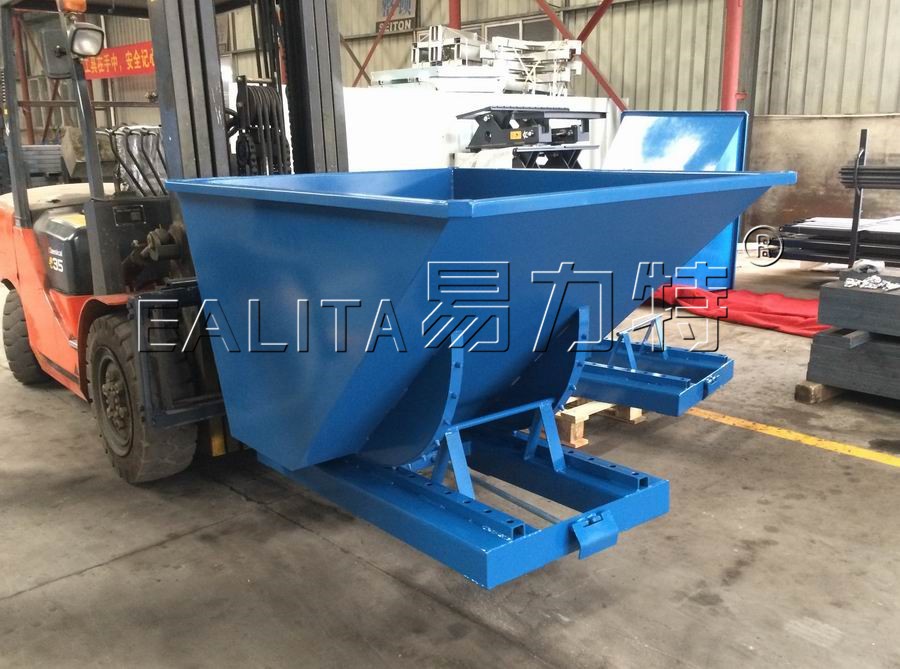

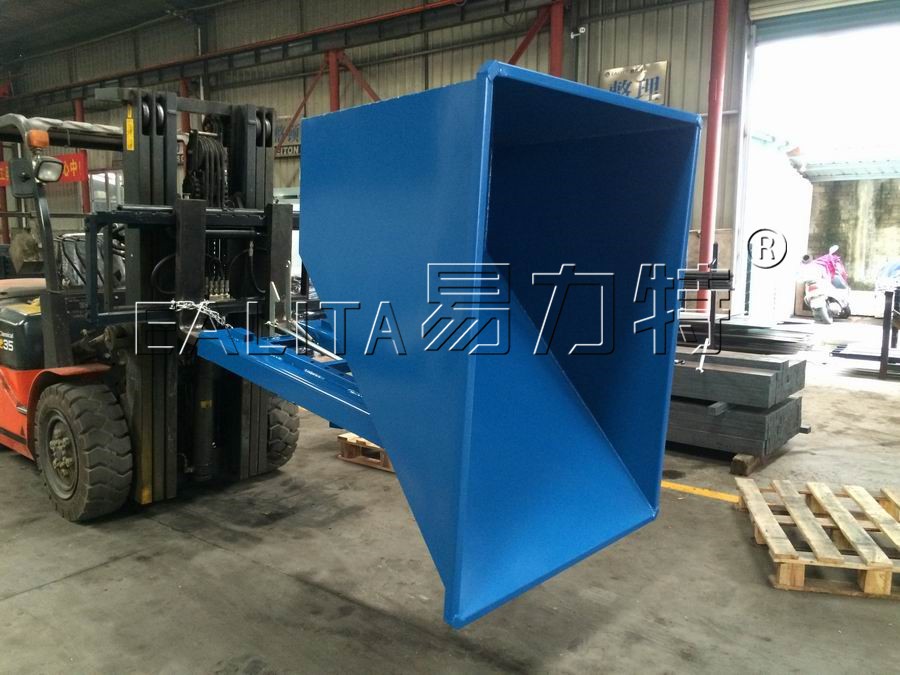

- The automatic tipping function does not only provide greater efficiency, it also raises safety during emptying at greater heights as TIPPO cannot slide from the forks.
- Tipping containers are exceptionally suited to waste sorting.
- They can be supplied in colours as recommended by the public waste collection service.
Specification
|
Type
|
Code
|
Volume
|
SWL
|
Fork Pocket Size
|
LxWxH
|
Weight
|
F-TS15
|
03.01.03.0016
|
0.15cu.m
|
1200kg
|
200 x 100mm
|
815x760x580mm
|
100kg
|
F-TS30
|
03.01.03.0023
|
0.30cu.m
|
1500kg
|
200 x 100mm
|
1235x840x750mm
|
145kg
|
F-TS60
|
03.01.03.0024
|
0.60cu.m
|
2000kg
|
200 x 100mm
|
1525x865x870mm
|
170kg
|
F-TS90
|
03.01.03.0013
|
0.90cu.m
|
2000kg
|
200 x 100mm
|
1525x1215x870mm
|
190kg
|
F-TS110
|
03.01.03.0014
|
1.10cu.m
|
2000kg
|
200 x 100mm
|
1700x1215x1045mm
|
220kg
|
F-TS160
|
03.01.03.0025
|
1.60cu.m
|
2000kg
|
200 x 100mm
|
2073x1066x1248mm
|
260kg
|
F-TS200
|
03.01.03.0026
|
2.00cu.m
|
2000kg
|
200 x 100mm
|
2073x1316x1248mm
|
305kg
|
F-TS250
|
03.01.03.0027
|
2.50cu.m
|
2000kg
|
200 x 100mm
|
2073x1566x1248mm
|
330kg
|
F-TS300
|
03.01.03.0028
|
3.00cu.m
|
2000kg
|
200 x 100mm
|
2073x1866x1248mm
|
355kg
|
