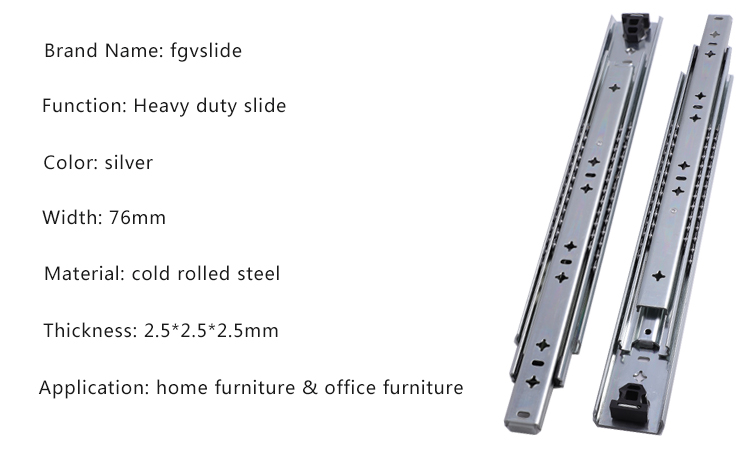

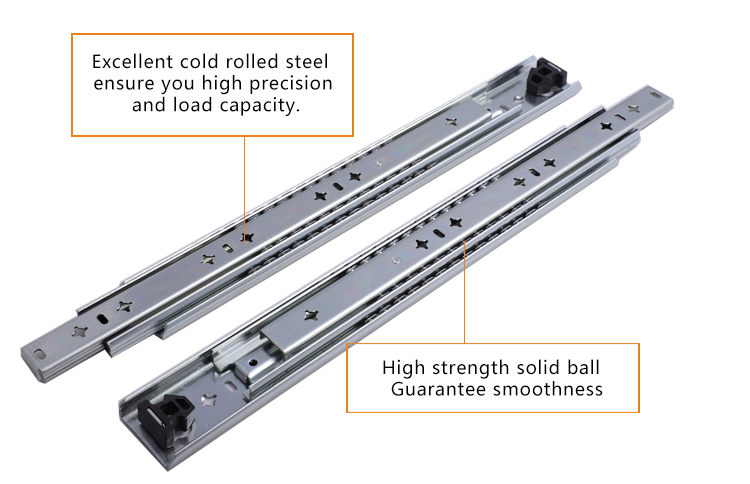

Heavy Duty Telescopic Industrial Slide Rails
|
|
200kg heavy duty telescopic industrial slide rails
|
|
DY7601S
|
|
|
Standard
|
|
Zinc Plated
|
|
|
200 KGs
|
|
10 to 74 inches
|
|
BALLS
|
2 Balls / 3 Balls
|
EDGE
|
Oval / Square
|
|
INSTALLATION
|
side mount
|
MOQ
|
1000 pairs
|
|
EXTENSION
|
full extension
|
TEST
|
pass 48hrs salt spray test
|
|
Testing
|
SGS TEST
|
|
Passed over 50,000 open-close
|
|
Passed 48 hours salt spray test
|
|
Passed 75 pounds load test
|
|
Sample
|
Sample free and small order can be accepted
|
|
Features
|

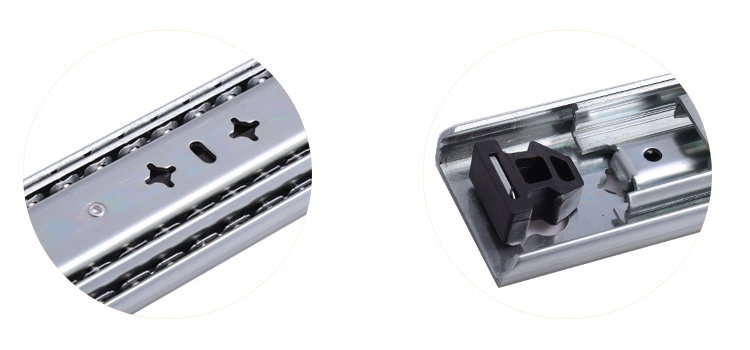

Strengthened adjustable screw can widen the adjustable ranges and longer using life.
|
|
Strengthened spring, thickness 2.5mm instead of common one thickness:
1.2*1.2*1.5mm or 1.0*1.0*1.2mm
|
|
Adopt advanced hydraulic system,longer life time,smaller volume
|
|
Thickness(mm)
|
Length(mm)
|
N.W.(kg)/box
|
G.W.(kg)/box
|
CTN SIZE(mm)
|
|
1.0*1.0*1.2
|
250
|
10.95
|
11.45
|
270*200*100
|
|
1.0*1.0*1.2
|
300
|
13.14
|
13.64
|
320*200*100
|
|
1.0*1.0*1.2
|
350
|
15.33
|
15.83
|
370*200*100
|
|
1.0*1.0*1.2
|
400
|
17.52
|
18.02
|
420*200*100
|
|
1.0*1.0*1.2
|
450
|
19.71
|
20.21
|
470*200*100
|
|
1.0*1.0*1.2
|
500
|
21.9
|
22.4
|
520*200*100
|
|
1.0*1.0*1.2
|
550
|
24.09
|
24.59
|
570*200*100
|
|
1.0*1.0*1.2
|
600
|
26.28
|
26.78
|
620*200*100
|
Our Services
1. Prompt and flexible quotation
2. Customized package
3. Considerate after-sale service
4. Well-known global market
5. Reliable quality
200kg heavy duty telescopic industrial slide rail
