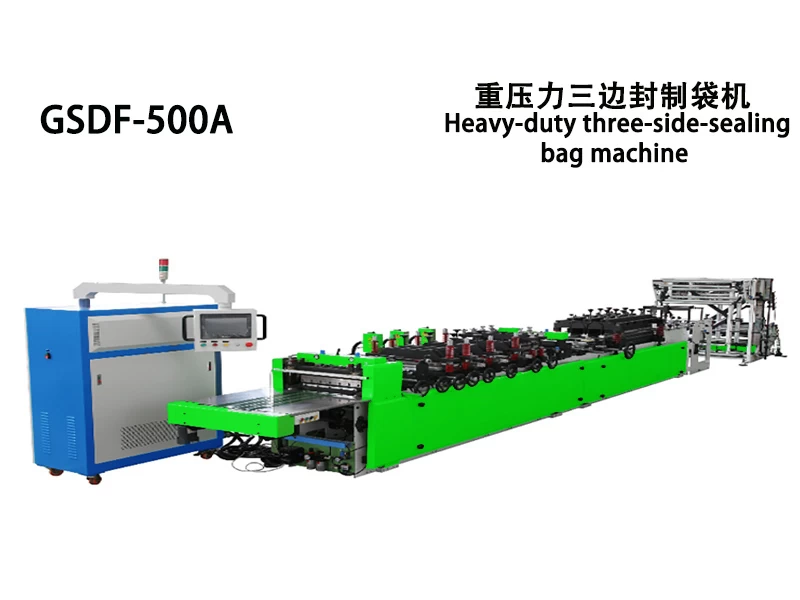

Heavy-duty three-side-sealing bag machine
Application:
GSDF-500A heavy-duty three-side-sealing bag machine is widely used to produce three-side-sealing bag under heavy duty device and feeding control system with double servo motors. According to requirements of clients, we will design and customize the details of the machine.
Features:
●GSDF-500A heavy-duty three-side-sealing bag machine belongs to newly high-tech products made in our factory combining advanced technologies from domestic and overseas and practical experience for years.
●The machine is equipped with industrial PC control device, CRT display and feeding control system with double servo motors.
●Designed with photoelectric deviation correction device, the machine will test feeding process which runs in variable frequency. And the machine adopts synchronous control between feeding analog quantity control and host analog quantity control to realize continuous feeding.
●Advancements with reverse way of feeding trough hole for quarter trim panel and M-plate avoid problem of wire drawing in color printing side for three-side sealing as well as guarantee that film will be automatically controlled by consistent tension.
●The machine is designed with lifting-pressing multiple in-feed function to improve greatly operation availability, which mostly accords with practice of production and technique.

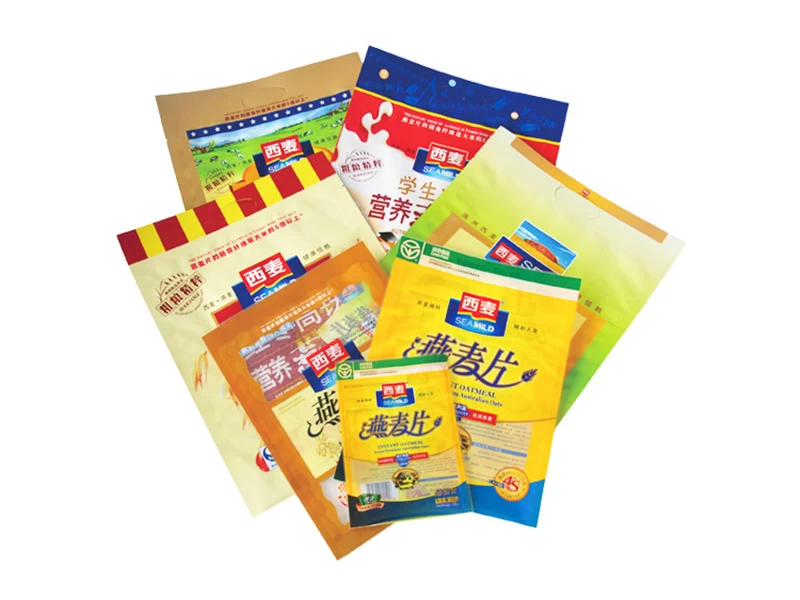

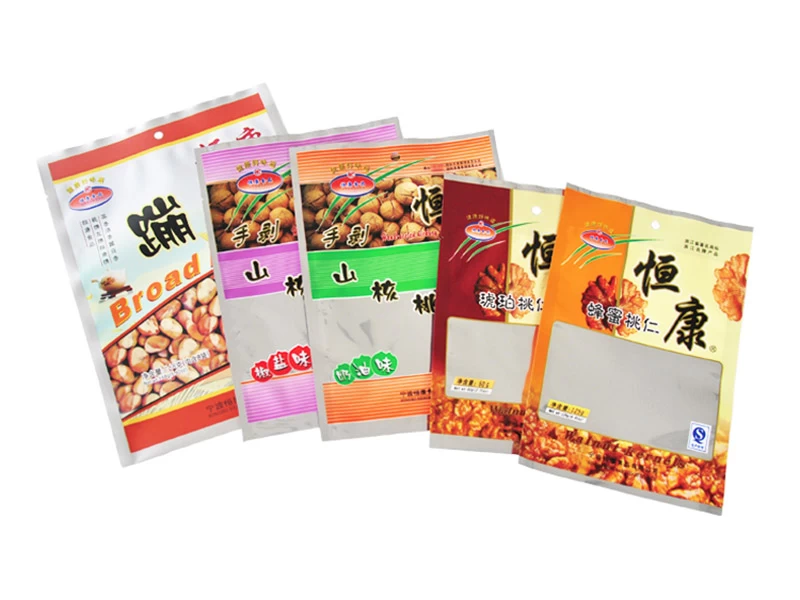

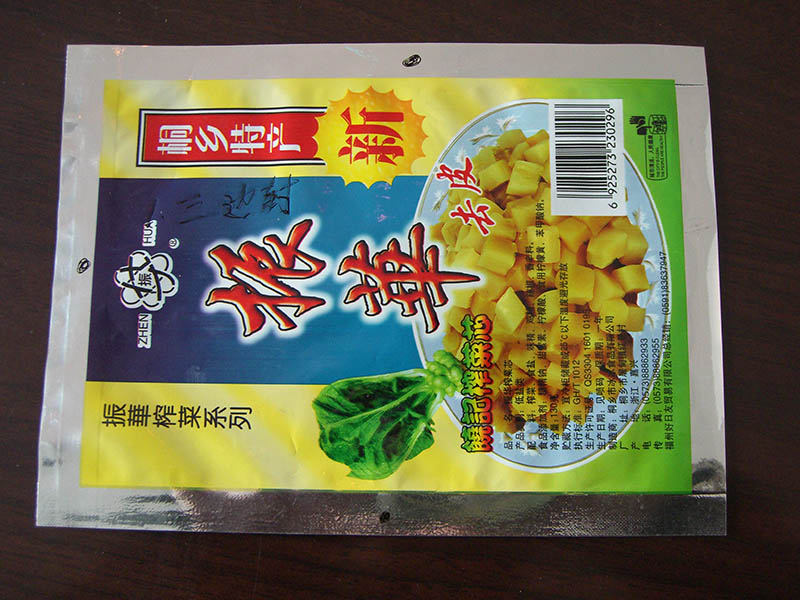

●Three-side-sealing bags made in the machine, characterized by vacuum and cooking package, are the newly ideal bag products among bags made in current domestic bag machines.
Main Parameter:
|
Bag-making speed
|
Max speed: 150 pcs/min
|
|
Bag-making length
|
30-400mm (adopt multiple material feeding when length goes beyond 400mm)
|
|
Bag-making width
|
70-500mm
|
|
Unwinding diameter
|
600mm
|
|
Bag-making precision
|
≤±1mm
|
|
Temperature control
|
0-300℃
|
|
Total power
|
32kw
|
|
Weight
|
4300kg
|
|
dimension
|
9200*1150*1800mm
|
