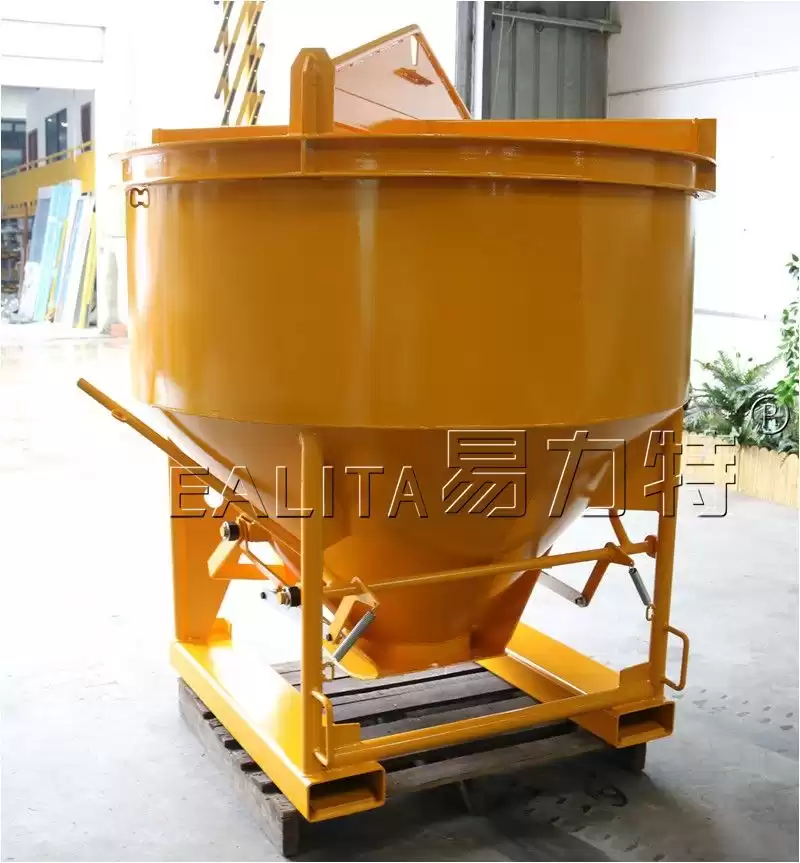

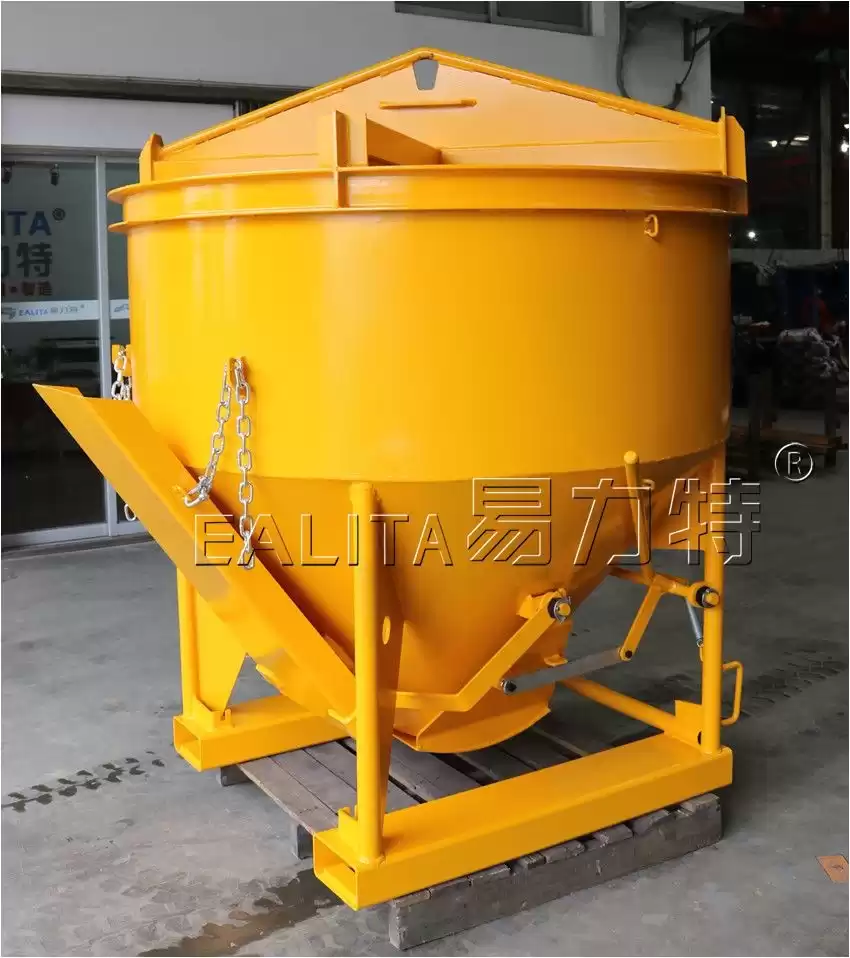

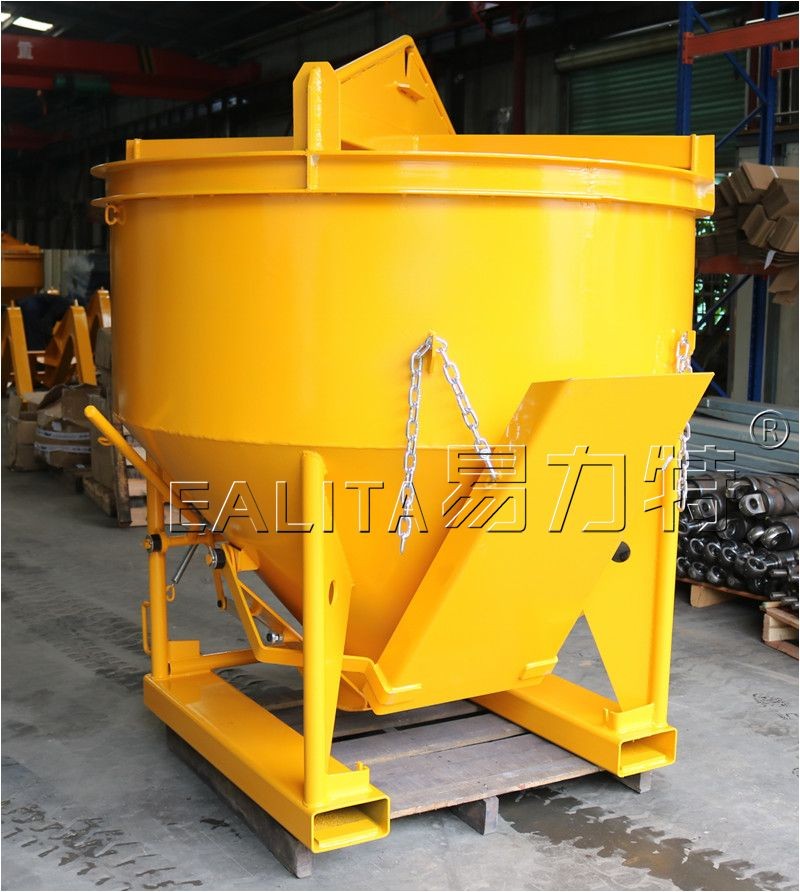

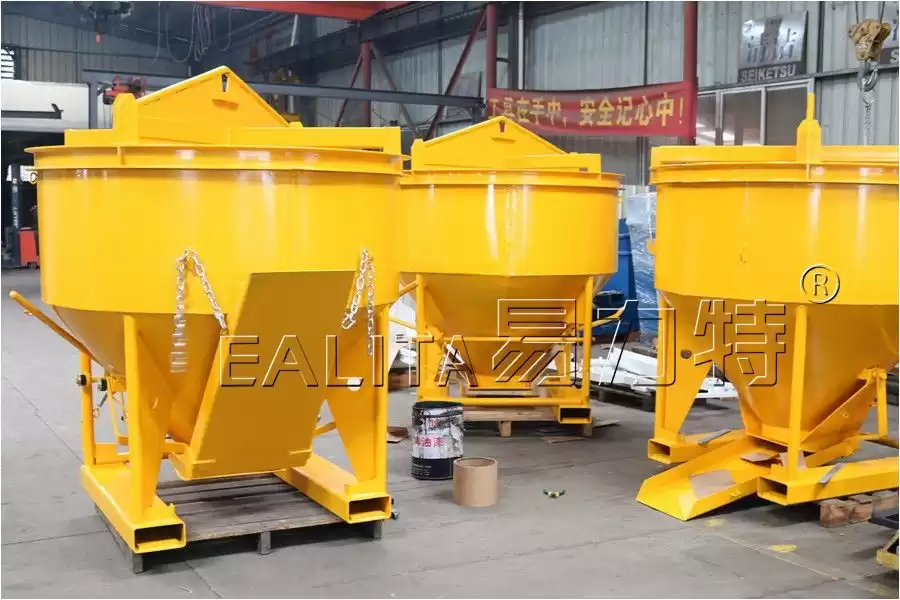

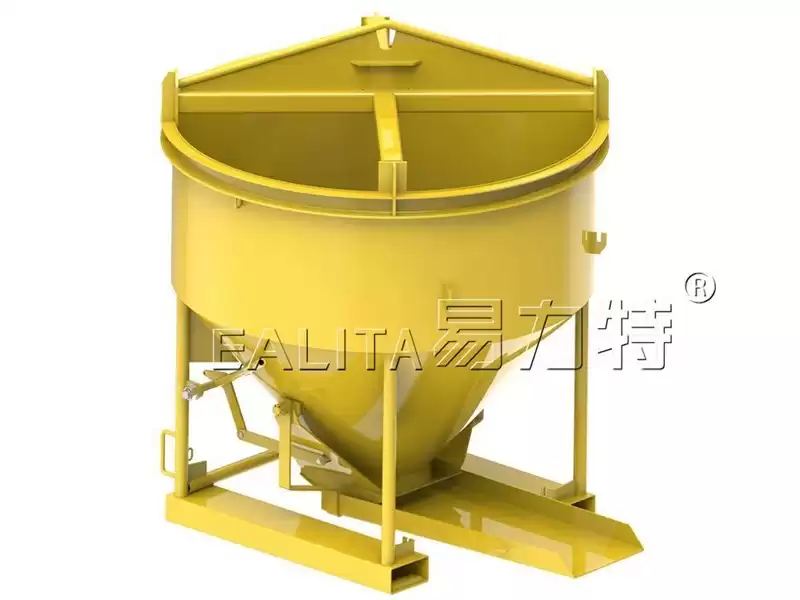

New type 1.5 cu.m Concrete Kibbles have been designed for easy transfer of concrete on site by overhead crane.
- This lightweight, yet heavy duty Kibble, can be used for both bottom orside discharge with the use of the adjustable chute.
- This unit is lever operated from either side, allowing flexible operation.
- The unit has been fitted with Forklift pockets for transport purposes about the work site.
Specification
- Working Load Limit (WLL) 4000kg
- Volume Capacity 1.5 cubic metres
- Unit Weight 429kg
- Fork Pocket Size 185 x 60mm
- Fork Pocket Centres 870mm
- Painted ‘Safety Yellow”
- Length 1850mm
- Width 1653mm
- Height 1970mm
