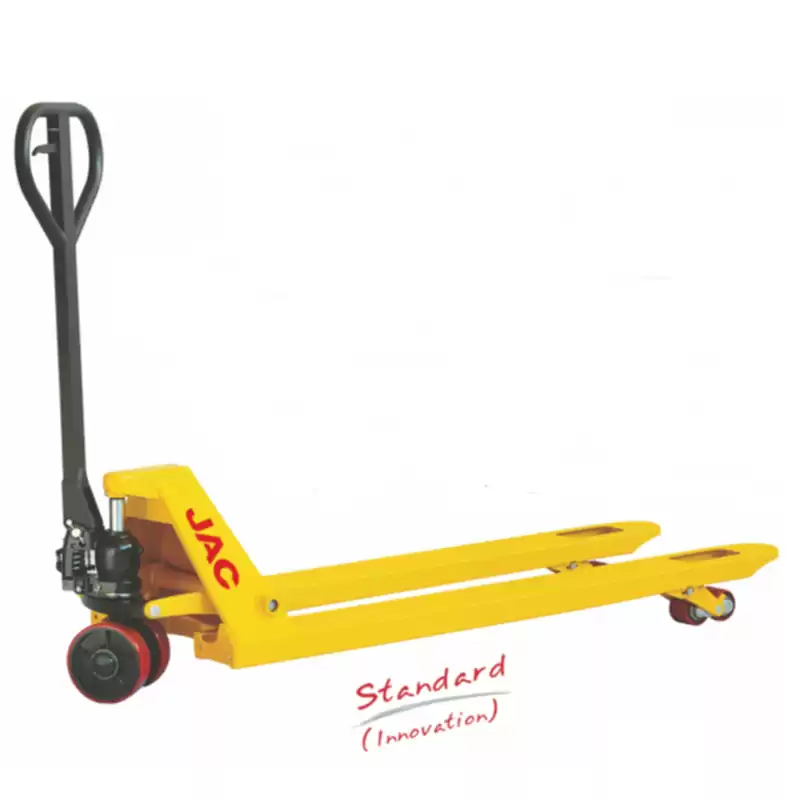

Features:
• High reliability and long service lift of 5 years.
• Double lifting speed when loads under 600kg,which turns back to regular speed when above it.
• Impact free lifting ensures safety of cargo loading.
• The Lifting system is equipped with overloading protection valve to ensure the safe operation.
• The utilized structural design guarantees the convenience of assembling and disassembling.
• Light-weight fork frame,made from high rigidity steel plate.
• Compact appearance,innovative separated Rock Arm,ensure the whole truck evenly pressed.
• There is a finger hole in the connection of handle and pump,easy to assemble.
|
Model
|
|
WB
|
|
Capacity
|
Q(kg)
|
5000
|
5000
|
|
Lowered fork height
|
h13(mm)
|
88
|
78
|
|
Steering wheel
|
mm
|
φ200
|
φ180
|
|
Fork wheel single
|
mm
|
~
|
~
|
|
Fork wheel tandem
|
mm
|
φ85×80
|
φ75×80
|
|
Max. lift height
|
h3(mm)
|
205
|
195
|
|
Total height
|
h14(mm)
|
1253
|
1243
|
|
Overall length
|
l1(mm)
|
1544/1614
|
1544/1614
|
|
Fork length
|
l(mm)
|
1150/1220
|
1150/1220
|
|
Width overall forks
|
b5(mm)
|
550/685
|
550/685
|
|
Ground clearance,centre of wheelbase
|
m2(mm)
|
28
|
18
|
|
Aisle width for pallets 1000×1200 crossways
|
Ast(mm)
|
1744/1814
|
1744/1814
|
|
Aisle width for pallets 800×1200 lengthways
|
Ast(mm)
|
1794/1814
|
1794/1814
|
|
Turning radius
|
Wa(mm)
|
1300/1370
|
1300/1370
|
|
Service weight
|
kg
|
103-110
|
103-110
|
