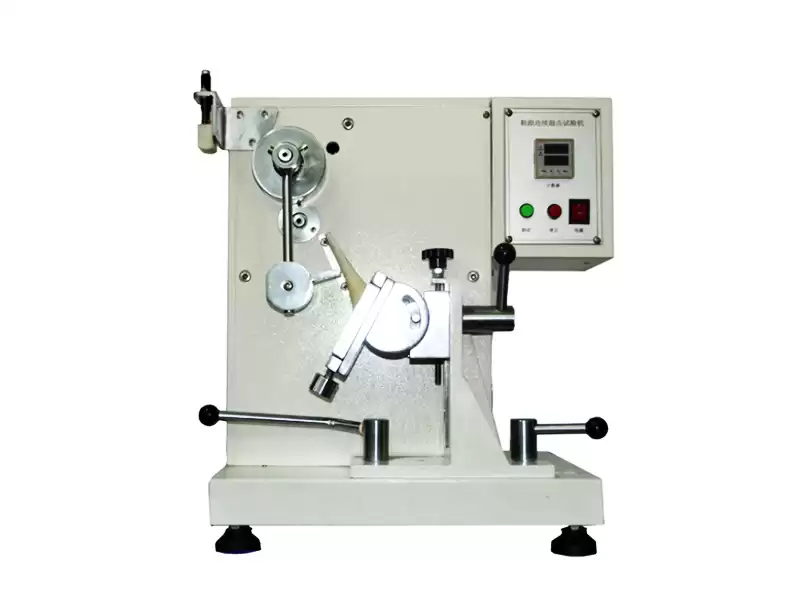

Heel Fatigue Tester

Heel Fatigue Tester is used to evaluate the performance of heels of ladies' shoes to resist the repeated impacts.

Test Standards

BS-5131 4.9, ISO 19956, QB/T 2864, etc.

Parameters

Model AT-F3015
Impact energy 0.68J ± 0.02J
Impact frequency 60blows/min
Impact angle 90°
Pendulum bob Dia. 57 ± 1 mm, Thickness 20 ± 1 mm
Impact shaft Dia. 12.5± 1 mm
Distance from the bob centre to the hub centre  152±2  mm
Striker head L35 ×W20×T6mm
Striker head corner radius R 3mm±0.5mm
Pendulum Moment 0.68N.m±0.02N.m
Counter LCD display 0~999,999
Power 1 phase AC 200V~240V, 3A



If you are looking for more lab testing equipment, please feel free to contact .
