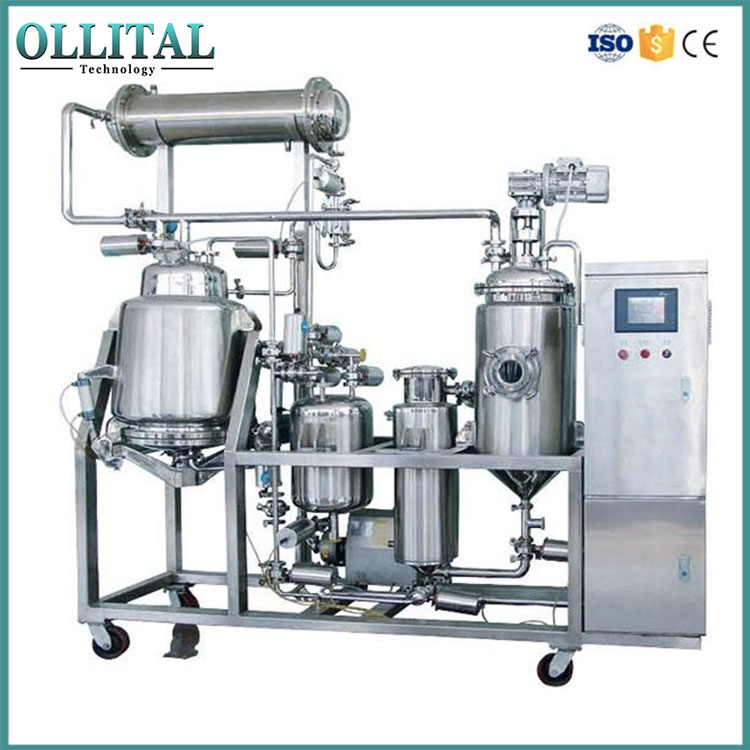

Countercurrent circulation ultrasonic extraction unit is widely used in a variety of volatile or non-volatile solvent extraction of natural products active ingredients, suit for medicine, food, health products, cosmetics and other laboratories and production, can also be used for ultrasonic dispersion, emulsification, release slow drugs AMD capsules and nanocapsules Preparation of research use, this is the ideal equipment of schools and research institutes and pharmaceutical companies.
1)This countercurrent circulation ultrasonic extraction unit uses Ultrasonic countercurrent cycle extraction and extract Vacuum evaporated a variety of pharmaceutical technology as one. Automatic operation, PLC automatic control inverter, touch screen dynamically displays the whole workflow. Test data can be external PC Print Save.
2)Shanghai Yuda countercurrent circulation ultrasonic extraction unit adaptability: it’s do not limited to ingredients polarity and molecular size for extract Chinese herbal. countercurrent circulation ultrasonic extraction unit is applies to the extract of vast majority of Chinese herbal extracts and various ingredients
3)Equipment selectable frequency range: 15KHz,20KHz,28 KHz,30 KHz,35 KHz,40 KHz,50 KHz,60 KHz,80KHz.
4)The countercurrent circulation ultrasonic extraction unit is dynamic extraction cycle, do repeated ultrasound, repeated extraction to the material. The extraction rate of this countercurrent circulation ultrasonic extraction unit higher than the average ultrasonic extraction.
5)Countercurrent circulation ultrasonic extraction unit using frame structure, compact structure, convenient operation, comes with cleaning function.
6)The countercurrent circulation ultrasonic extraction unit with different filter systems according to the different materials of customer.
7)Countercurrent circulation ultrasonic extraction unit, use high-power of shaped ultrasonic generator. The ultrasonic power can be adjust, the ultrasonic electronic control is touch screen dynamic display control system.
1 Total power: 12.5KW.
2 vacuum pump: 1.75KW, with control valve.
3 mixing system: centrifugal pump liquid circulation mixing system
4 Scraper Motor: 1.5kw (also done CIP cleaning)
5. extraction tank heating area: 0.95M2
6 condenser condensing area: 1.63 M2
7 scraper concentrated heating area: 0.95 M2
8 sandwich working pressure: 0.3MPa;
9 water extraction temperature: room temperature to 100 degrees;
10 alcohol extraction temperature: room temperature to 85 degrees
11 Vacuum degree: -0.05 ~ -0.08MPa;
12 scraper concentrated distillation temperature: 45 to 80 degrees
13 Extraction tank effective volume: 100L
14. scraper concentrate tank volume: 100L, three heat preservation heating structure, scraper agitator, 360 CIP cleaning components.
15 Material: machine uses the high quality SUS304 2B, liner 3mm, jacket 3mm, shell body 3mm.
16 Equipment surface treatment: tank inter surface mirror polishing , outer surface drawing inferior smooth processing.
17 Equipment size: 1850x850x2370, customized according to customer demand.
