HEX4 Mono Half Cell 375W 120cells Solar Panel

BLUESUN EU USA Warehouse Solar Energy Photovoltaic Solar Panels 370 Watt 375 Watt Solar Panel In Stock


  • PaymentT/T, L/C,Western Union
  • Lead Time15 Days
  • CertificateCE/TUV/UL/CEC
  • Size1755 *1038*35MM
  • Power Range355-375W
  • Number Of Cells120 (6*20)
  • Solar Cell166*166mm
  • ModelBSM375M-60HPH
  • Warranty25 Years

Product Description

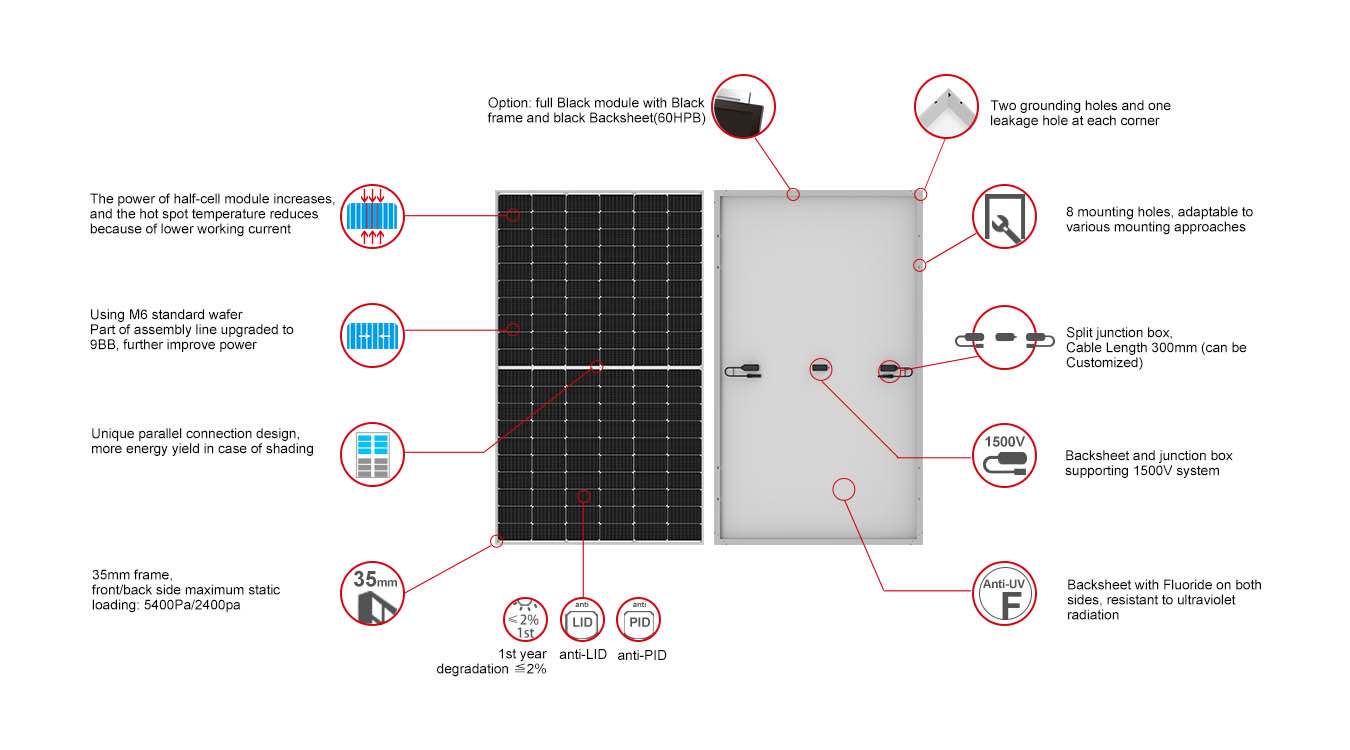

Bluesun HEX4 series monocrystalline solar panels use half cell PERC cells,it has a passivated rear side and a laser grooving process,which significantly improves the cell efficiency,power range from 355-375w.Passed IEC 61215, IEC 61730,UL 61730,INMETRO test for harsh environment.


*Suitable for ground power plants and distributed projects    *Advanced module technology delivers superior module efficiency

*Excellent outdoor power generation performance                 *High module quality ensures long-term reliability



                   Module Type

          BSM355M-60HPH

          BSM360M-60HPH

          BSM365M-60HPH

          BSM370M-60HPH

          BSM375M-60HPH



STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

Maximum Power(Pmax/W)

355

264

360

268

365

271

370

275

375

278

Operating Voltage(Vmpp/V)

34.0

31.4

34.3

31.6

34.6

31.9

34.9

32.1

35.2

32.3

Operating Current(Impp/A)

10.45

8.43

10.50

8.46

10.56

8.50

10.61

8.55

10.66

8.60

Open-Circuit Voltage(Voc/V)

40.5

37.7

40.7

37.9

40.9

38.0

41.1

38.2

41.3

38.4

Short-Circuit Current(Isc/A)

11.10

8.96

11.15

9.00

11.20

9.04

11.26

9.09

11.31

9.13

Module Efficiency(%)

19.3

19.6

19.8

20.1

20.4

STC: Irradiance 1000W/,Cell Temperature 25°C,Air Mass AM1.5   NMOT: Irradiance at 800W/,Ambient Temperatue 20°C,Air Mass AM1.5,Wind Speed 1 m/s
