Product Description

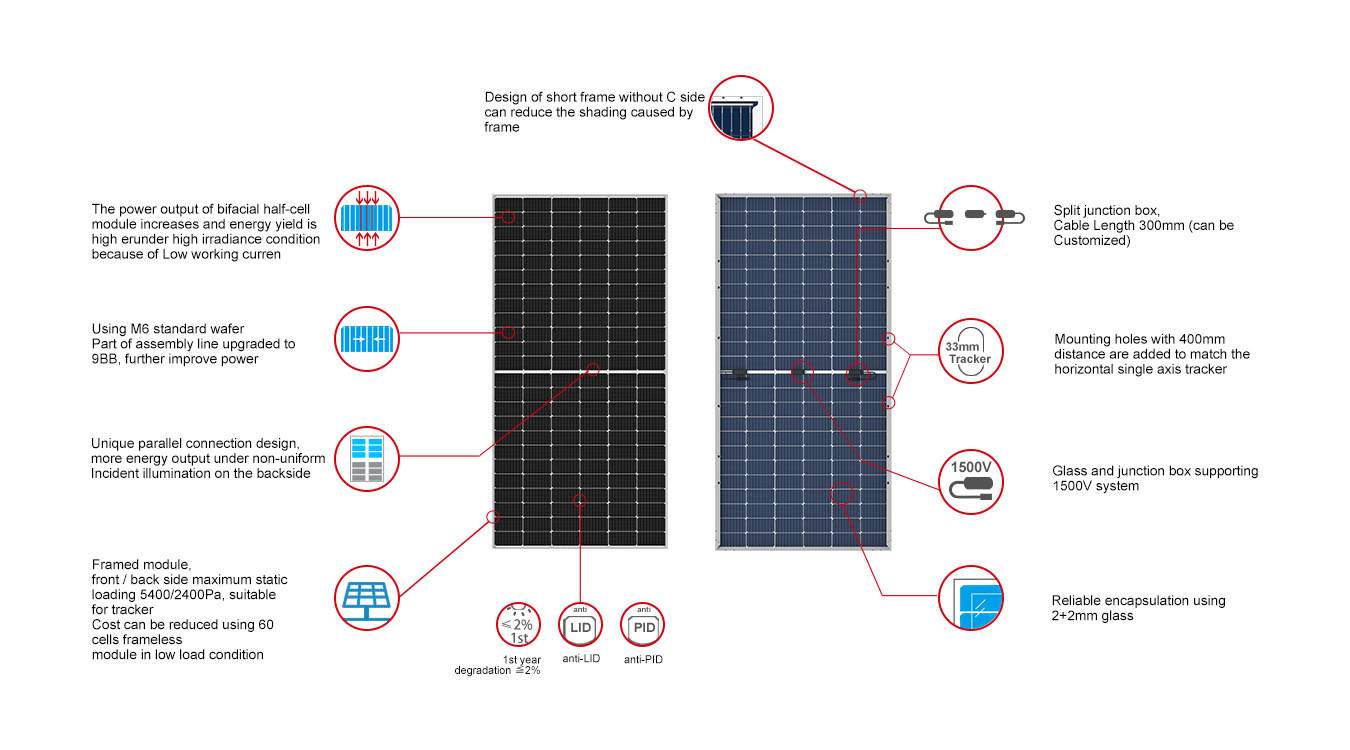

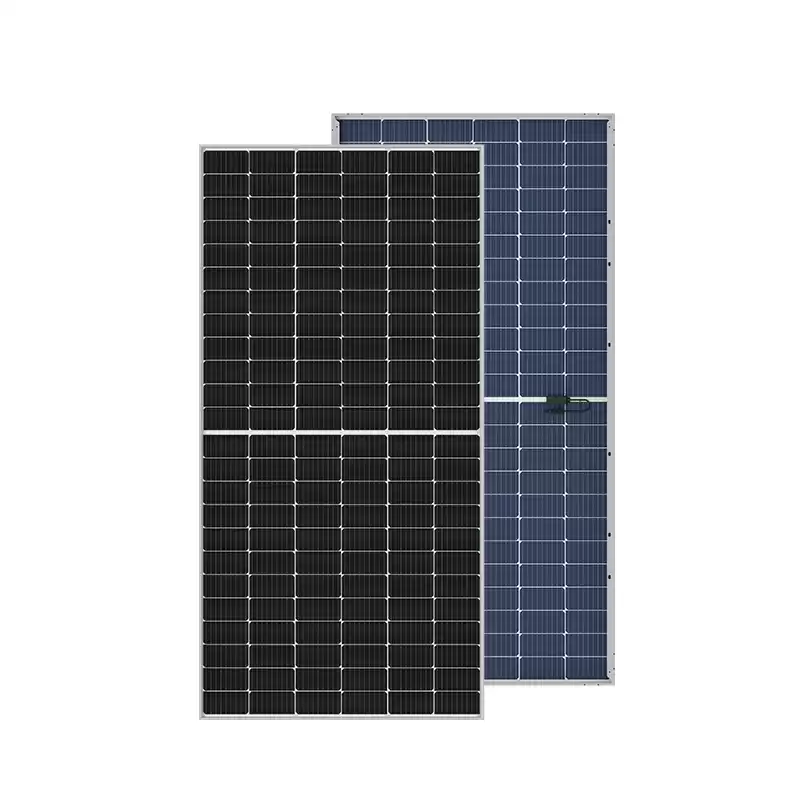

Bluesun HEX4 series monocrystalline solar panels use half cell PERC cells,it has a passivated rear side and a laser grooving process,which significantly improves the cell efficiency,power range from 440-460w.Passed IEC 61215, IEC 61730,UL 61730,INMETRO test for harsh environment.
*Suitable for ground power plants and distributed projects *Advanced module technology delivers superior module efficiency
*Excellent outdoor power generation performance *High module quality ensures long-term reliability
|
Module Type
|
BSM440M-72HBD
|
BSM445M-72HBD
|
BSM450M-72HBD
|
BSM455M-72HBD
|
BSM460M-72HBD
|
|
|
STC
|
NMOT
|
STC
|
NMOT
|
STC
|
NMOT
|
STC
|
NMOT
|
STC
|
NMOT
|
|
Maximum Power(Pmax/W)
|
440
|
327
|
445
|
330
|
450
|
334
|
455
|
337
|
460
|
341
|
|
Operating Voltage(Vmpp/V)
|
41.6
|
38.9
|
41.8
|
39.1
|
42.0
|
39.3
|
42.2
|
39.4
|
42.4
|
39.6
|
|
Operating Current(Impp/A)
|
10.58
|
8.41
|
10.65
|
8.47
|
10.72
|
8.52
|
10.79
|
8.57
|
10.86
|
8.62
|
|
Open-Circuit Voltage(Voc/V)
|
50.0
|
46.8
|
50.2
|
46.9
|
50.4
|
47.1
|
50.6
|
47.3
|
50.8
|
47.5
|
|
Short-Circuit Current(Isc/A)
|
11.22
|
9.04
|
11.29
|
9.10
|
11.36
|
9.16
|
11.43
|
9.21
|
11.50
|
9.27
|
|
Module Efficiency(%)
|
20.2
|
20.5
|
20.7
|
20.9
|
21.2
|
STC: Irradiance 1000W/㎡,Cell Temperature 25°C,Air Mass AM1.5 NMOT: Irradiance at 800W/㎡,Ambient Temperatue 20°C,Air Mass AM1.5,Wind Speed 1 m/s
