Product Description

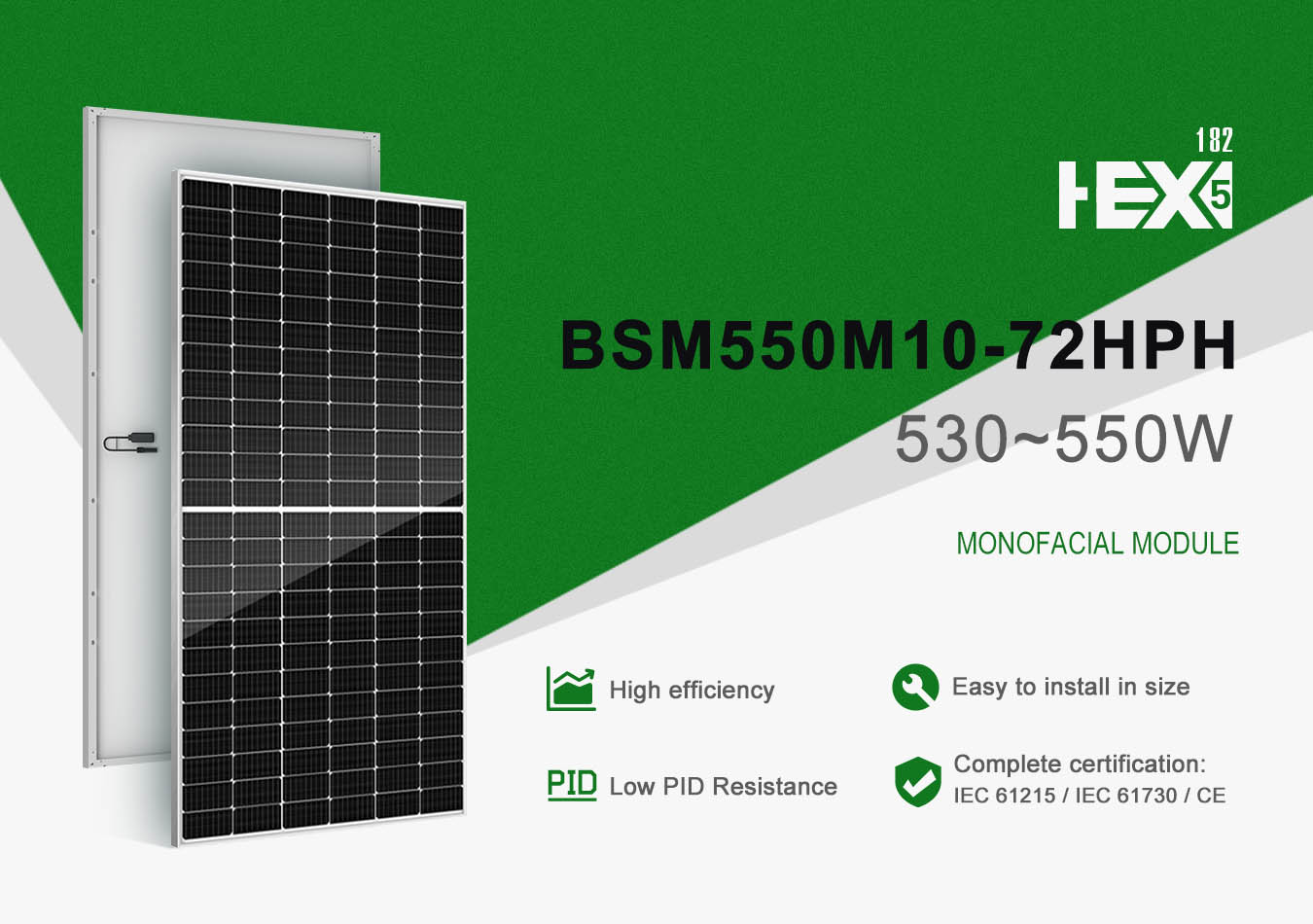

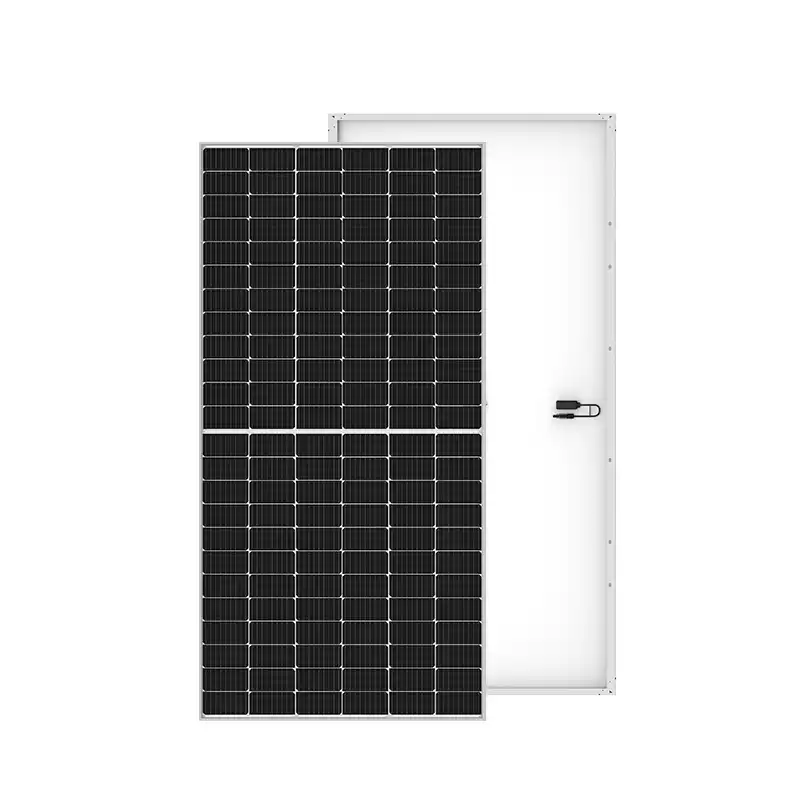

Bluesun HEX5 series monocrystalline solar panels use half cell PERC cells,it has a passivated rear side and a laser grooving process,which significantly improves the cell efficiency,power range from 530-550w.Passed IEC 61215, IEC 61730,UL 61730,INMETRO test for harsh environment.
*High module conversion efficiency *Withstanding harsh environment
*Excellent Anti-PID performance *Excellent weak light performance
|
Module Type
|
BSM530M10-72HPH
|
BSM535M10-72HPH
|
BSM540M10-72HPH
|
BSM545M10-72HPH
|
BSM550M10-72HPH
|
|
|
STC
|
NMOT
|
STC
|
NMOT
|
STC
|
NMOT
|
STC
|
NMOT
|
STC
|
NMOT
|
|
Maximum Power(Pmax/W)
|
530
|
395
|
535
|
398
|
540
|
402
|
545
|
406
|
550
|
410
|
|
Operating Voltage(Vmpp/V)
|
41.32
|
38.6
|
41.48
|
38.7
|
41.64
|
38.8
|
41.80
|
39.0
|
41.96
|
39.1
|
|
Operating Current(Impp/A)
|
12.83
|
10.24
|
12.90
|
10.30
|
12.97
|
10.36
|
13.04
|
10.41
|
13.11
|
10.47
|
|
Open-Circuit Voltage(Voc/V)
|
49.32
|
46.4
|
49.46
|
46.50
|
49.60
|
46.7
|
49.76
|
46.8
|
49.92
|
47.0
|
|
Short-Circuit Current(Isc/A)
|
13.72
|
11.06
|
13.79
|
11.12
|
13.86
|
11.17
|
13.93
|
11.23
|
14.00
|
11.28
|
|
Module Efficiency(%)
|
20.5
|
20.7
|
20.9
|
21.1
|
21.3
|
STC: Irradiance 1000W/㎡,Cell Temperature 25°C,Air Mass AM1.5 NMOT: Irradiance at 800W/㎡,Ambient Temperatue 20°C,Air Mass AM1.5,Wind Speed 1 m/s
