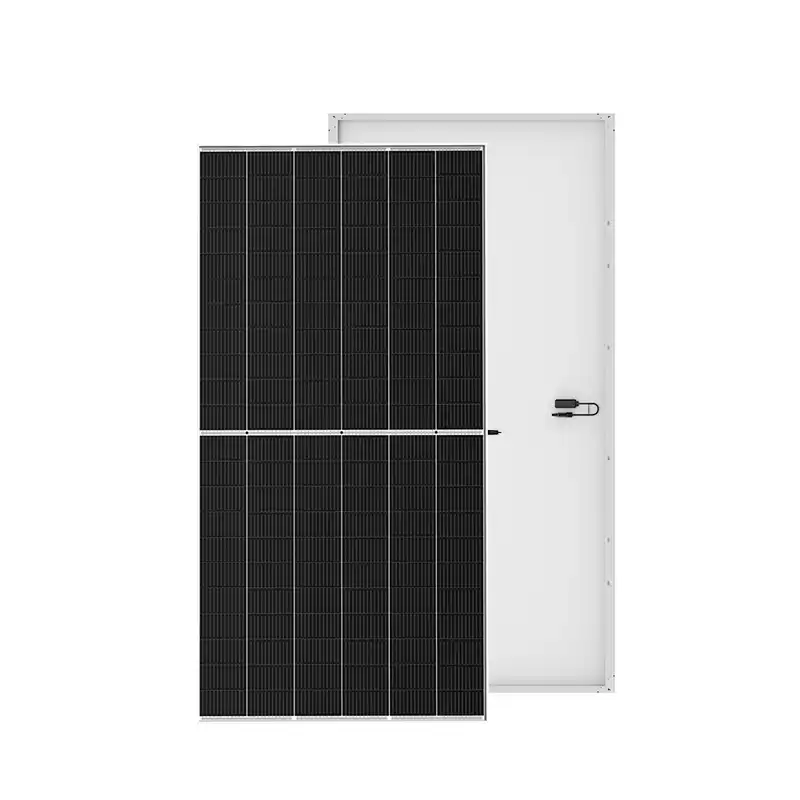

HEX6 Mono Half Cell 670W 132cells Solar Panel

Bluesun High Efficiency Solar Panel Suppliers 660W 670W Solar Panel With High Efficiency

Warranty25 Years
PaymentT/T, L/C,Western Union
Lead Time15 Days
CertificateCE/TUV/UL/CEC
Size2385*1303*35MM
Power Range650-670W
Number Of Cells132 (6*22)
Solar Cell210*210mm
ModelBSM670G12-72HPH

Facebook Twitter Pinterest LinkedIn 分享

Description

Product Description

Module Type	BSM650G12-66HPH		BSM655G12-66HPH		BSM660G12-66HPH		BSM650G12-66HPH		BSM670G12-66HPH
	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT
Maximum Power(Pmax/W)	650	492	655	496	660	500	665	504	670	509
Operating Voltage(Vmpp/V)	37.4	34.9	37.6	35.1	37.8	35.3	38.0	35.5	38.2	35.7
Operating Current(Impp/A)	17.38	14.09	17.42	14.13	17.46	14.18	17.50	14.22	17.54	14.27
Open-Circuit Voltage(Voc/V)	45.2	42.6	45.4	42.8	45.6	43.0	45.8	43.2	46.0	43.4
Short-Circuit Current(Isc/A)	18.46	14.85	18.50	14.88	18.55	14.92	18.60	14.96	18.65	15.00
Module Efficiency(%)	20.9		21.0		21.2		21.4		21.5

STC: Irradiance 1000W/㎡,Cell Temperature 25°C,Air Mass AM1.5 NMOT: Irradiance at 800W/㎡,Ambient Temperatue 20°C,Air Mass AM1.5,Wind Speed 1 m/s
