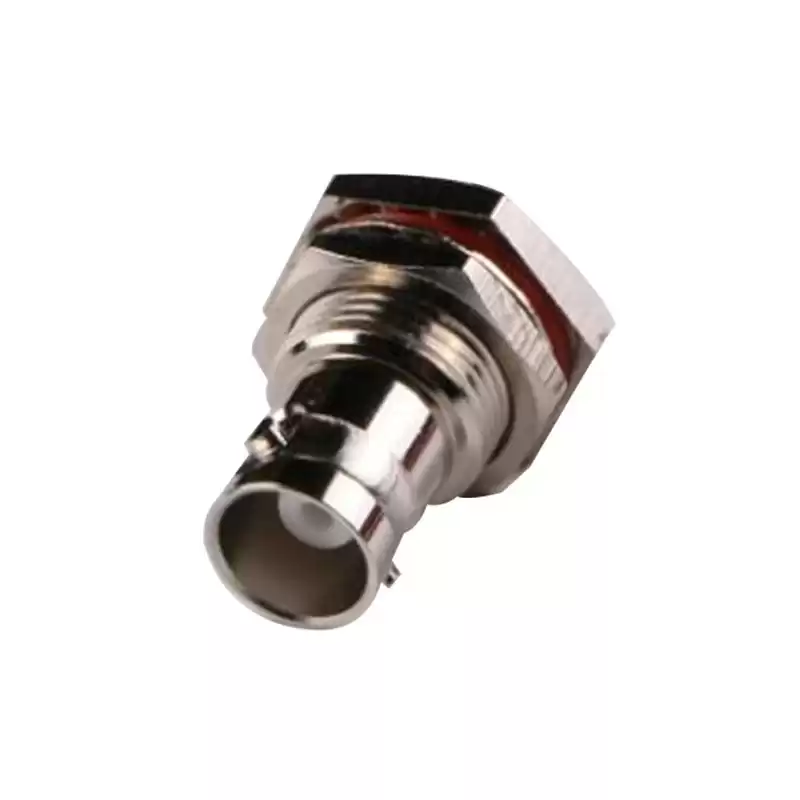

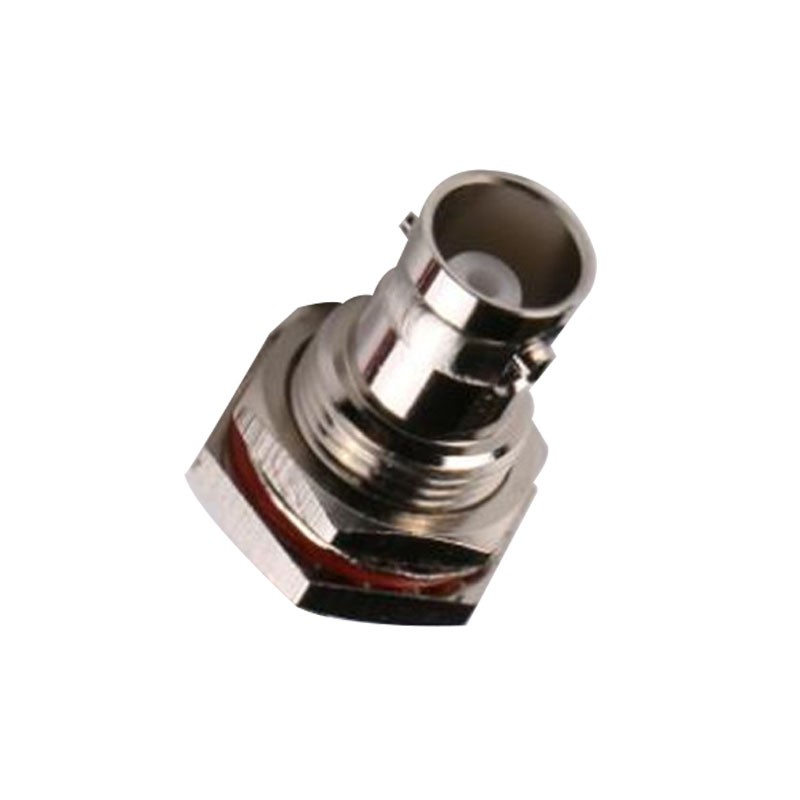

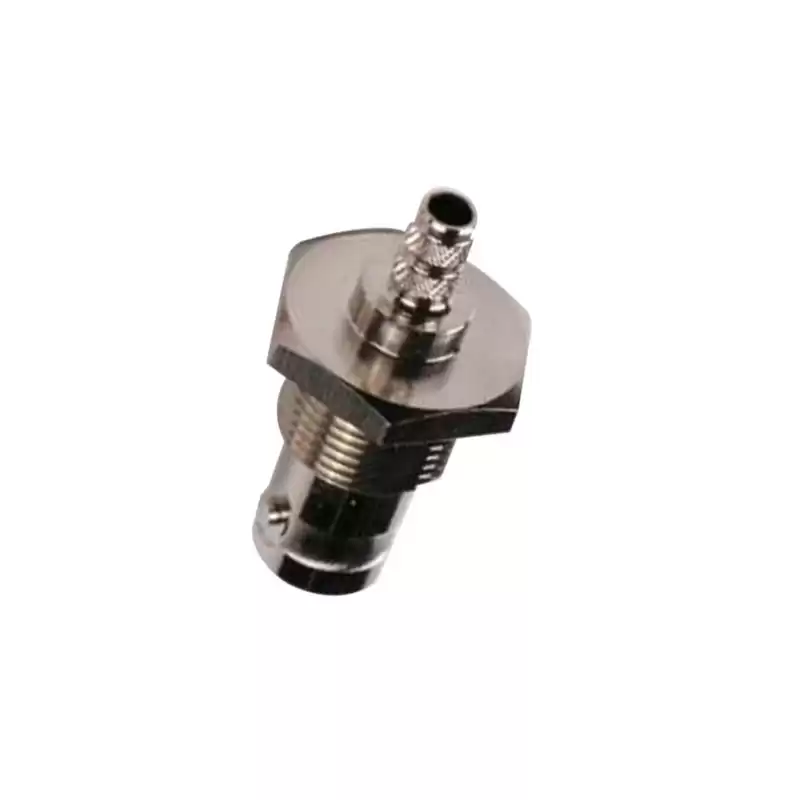

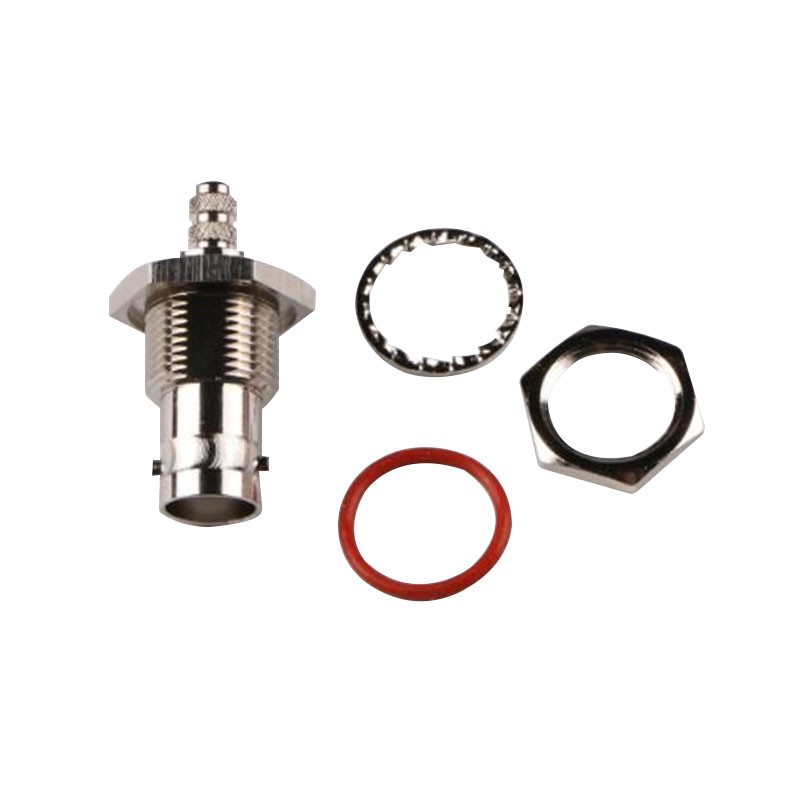

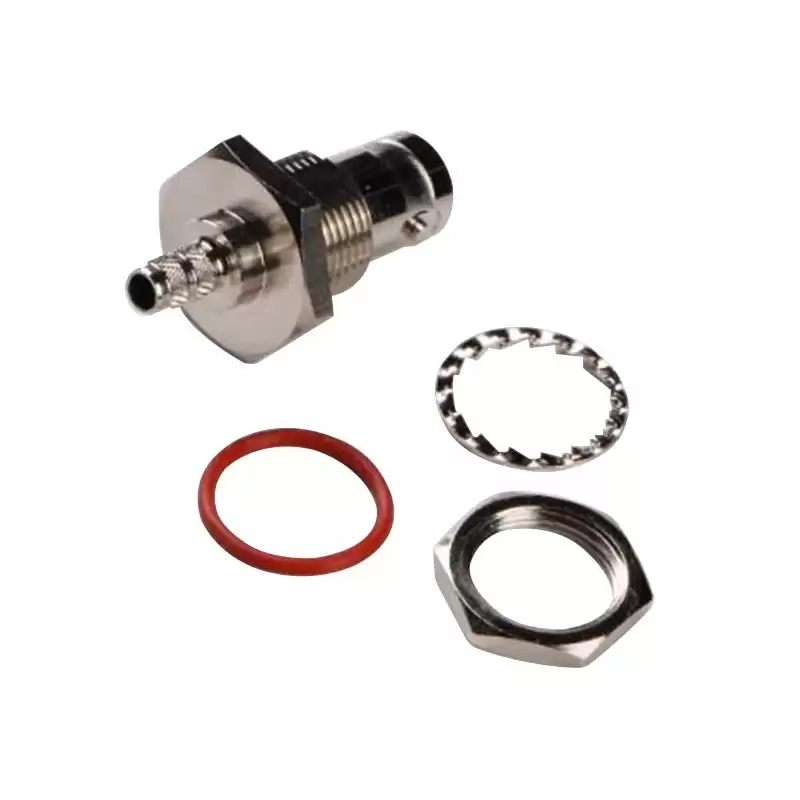

Hexagonal Straight Female Jack RF Coaxial BNC Connector for RG316/11 Cable
ROHO offers a full line of BNC connectors types in a multitude of female and male options. BNC connectors are miniature, lightweight and reliable. 50 ohm BNC and 75 ohm BNC connectors are available in configurations ideal for commercial and military-grade applications;BNC RF connectors are suited to accommodate a large variety of RG and industry-standard coaxial cables, in a variety of termination styles.
Specifications
50 OHM
| ELECTRICAL DATA |
|
| Impedance |
50Ω |
| Frequency range (for connector interface) |
DC- 4 GHz (DC - 12 GHz on Extended Range Designs) |
| Dielectric withstanding Voltage (at sea level) |
1500V rms, 50Hz (depending on cable) |
| Working voltage (at sea level) |
500V rms, 50Hz (depending on cable) |
| Insulation resistance |
≥ 5000 mΩ |
| Contact resistance |
centre contact≤1.5mΩ |
| outer contact: ≤ 1 mΩ |
| RF-leakage (between 2÷3 GHz) |
≥55 dB |
| MECHANICAL DATA |
|
| Coupling nut torque |
7Ncm--28Ncm / 0.6 in.lbs--2.5 in.lbs |
| Coupling nut retention force |
≥450N / 101.2 lbs |
| Contact captivation |
≥27N / 6.1 lbs |
| Durability (matings) |
≥500 |
| VSWR Right angle |
≤ 1.3 |
| ENVIRONMENTAL DATA |
|
| Temperature range |
-65°C to +165°C |
| MATERIAL DATA |
|
| Bodies |
Brass--Ni plating |
| Pin contacts |
Brass--Au / Ag plating |
| Socket contacts |
Copper--beryllium Au / Ag plating |
| Crimp ferrules |
Copper alloy--Ni plating |
| Insulator |
PTFE |
| Gaskets |
Silicone rubber |
75 OHM
| ELECTRICAL DATA |
|
| Impedance |
75Ω |
| Frequency range (for connector interface) |
DC- 4 GHz (DC - 12 GHz on Extended Range Designs) |
| Dielectric withstanding Voltage (at sea level) |
1500V rms, 50Hz (depending on cable) |
| Working voltage (at sea level) |
500V rms, 50Hz (depending on cable) |
| Insulation resistance |
≥ 1000 mΩ |
| Contact resistance |
centre contact≤1.5mΩ |
| outer contact: ≤ 1 mΩ |
| Durability (matings) |
≥500 |
| VSWR Right angle |
≤ 1.5 |
| ENVIRONMENTAL DATA |
|
| Temperature range |
-65°C to +165°C |
| MATERIAL DATA |
|
| Bodies |
Brass--Ni plating |
| Pin contacts |
Brass--Au / Ag plating |
| Socket contacts |
Copper--beryllium Au / Ag plating |
| Crimp ferrules |
Copper alloy--Ni plating |
| Insulator |
PTFE |
| Gaskets |
Silicone rubber |
Applications
- Antennas
- Broadcast (75 ohm)
- Telecommunications
- Automotive
- Computers/LANs
- Medical Equipment
- Medical Equipment
- Base Stations
- Cable Modems
- Instrumentation
- Military/Aerospace
