Key Properties:
-
High permeability µi (200KHZ), high L and impedance Z in the high frequency range
-
High saturation flux density (1.2T)
-
High curie temperature (580 °C) and excellent temperature characteristics
-
Low remanent flux density Br with DC-tolerance
|
Typical Parameter
|
|
|
Saturation flux density
|
Bs = 1.25 T
|
|
Density
|
D= 7.2 kg/m3
|
|
Vickers Hardness
|
Hv= 880 kg/mm2
|
|
Electrical Resistivity
|
ρ=1.3 µΩcm
|
|
Crystallization Temperature
|
Tx >510°C
|
|
Tap Thickness:
|
approx. 18µm
|
|
Core Losse (20KHz, 0.5T)
|
PFe ≤ 20W/kg*
|
|
Br/Bs
|
≤0.2
|
|
Magnet Hysteresis loop
|
|
Product Specification:

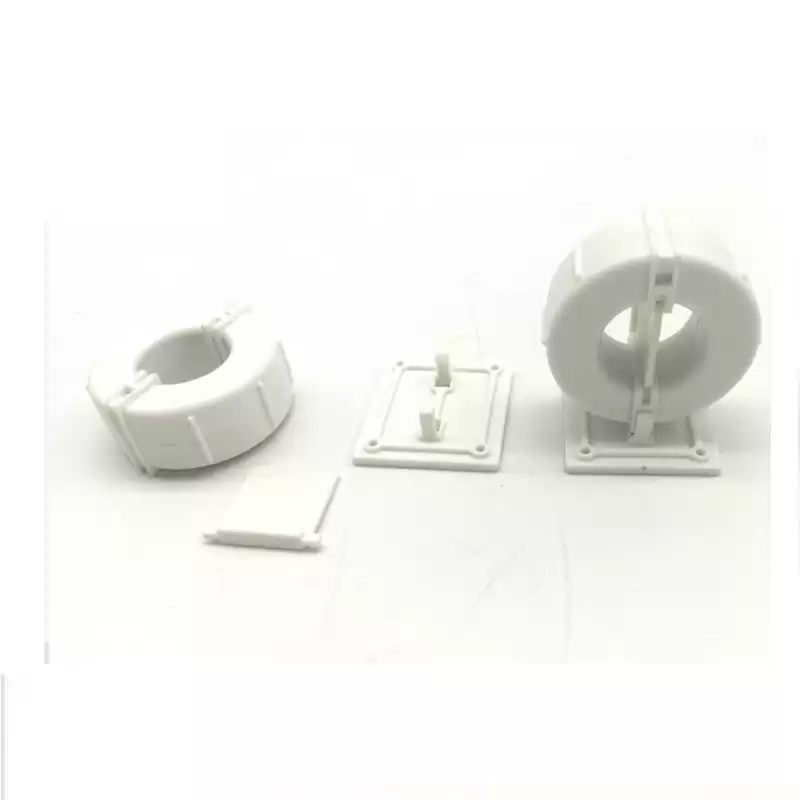

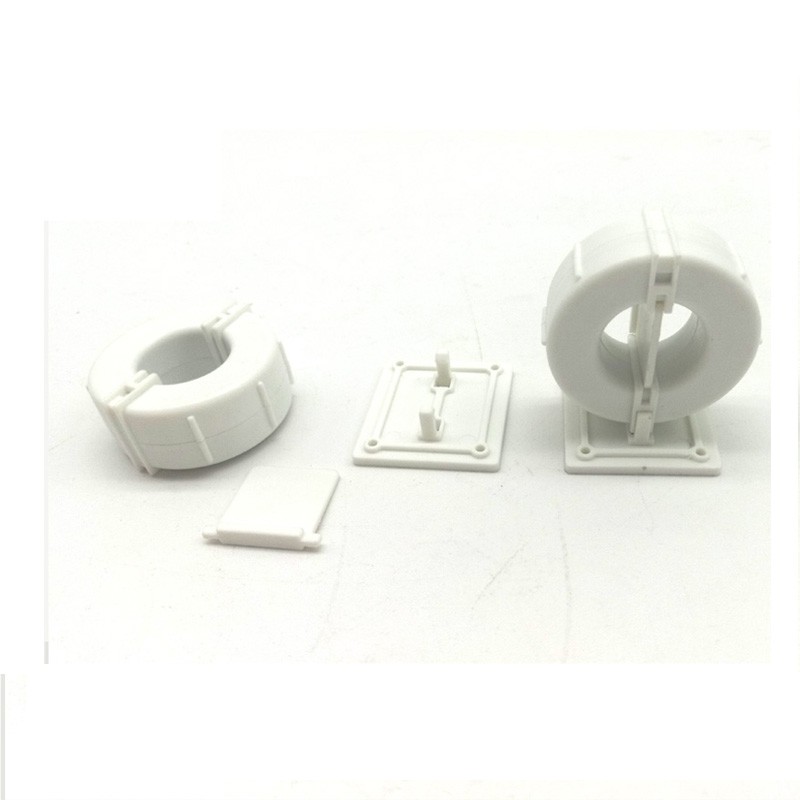

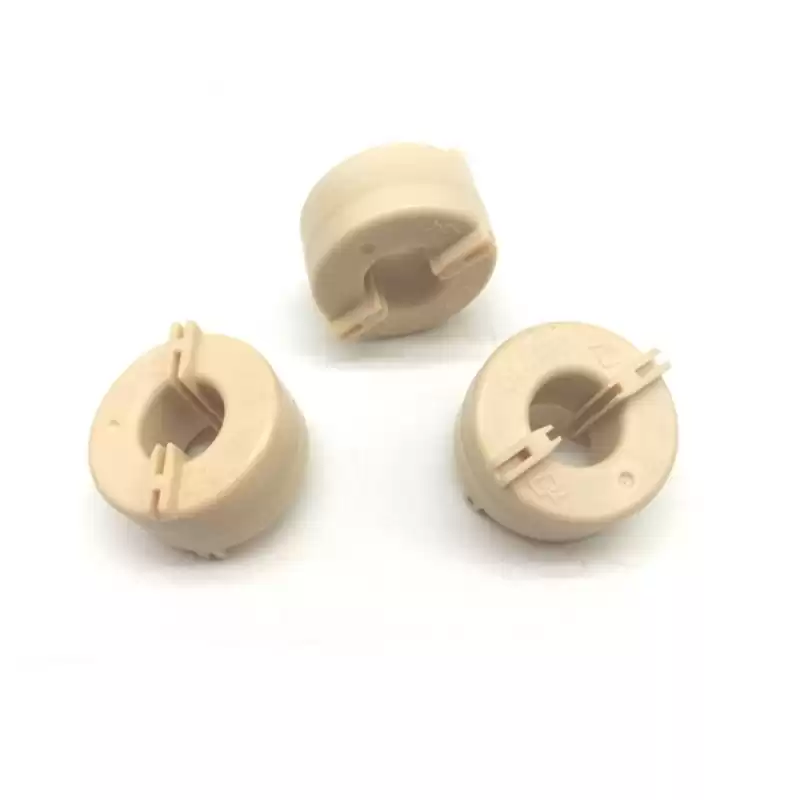

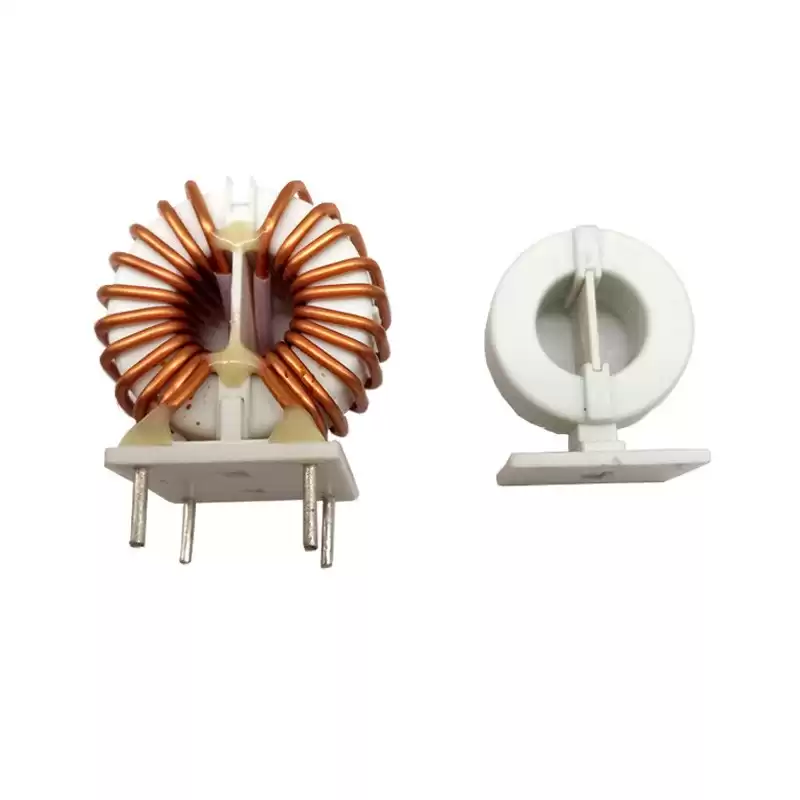

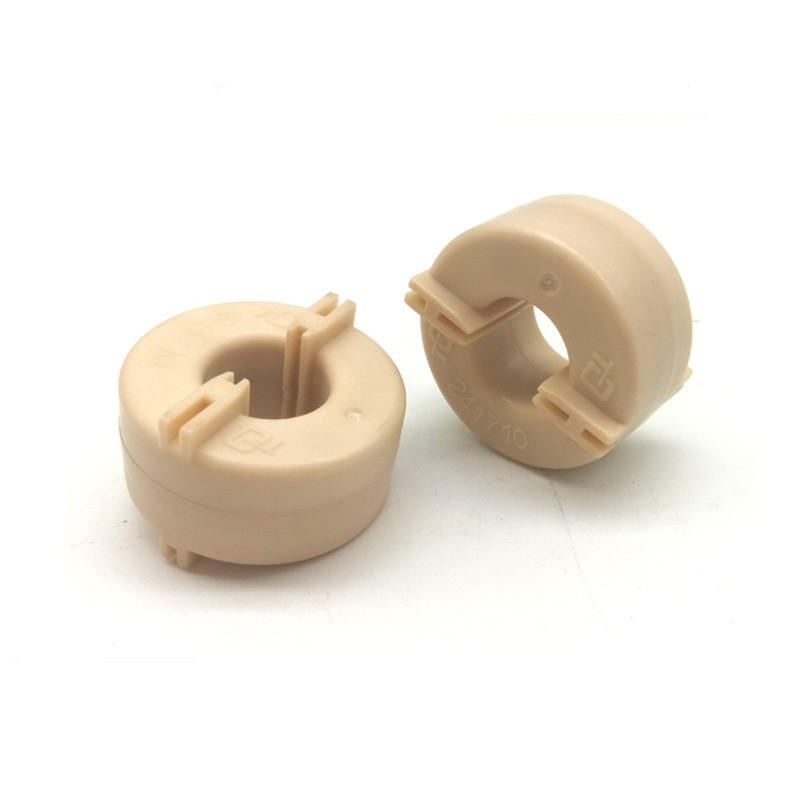

Nanocrystalline Common Mode Choke Core covering: 1-phaseCMCs, 3-phase CMCs, 4 - Fold CMCs.
Common Standard High Frequency & High Impedance Common Mode Choke Core Product list download here.
OEM design is supported. We design & produce goods based on specifications & drawing, specification including:
1.Bare core size, Size finished
2.Al requirement @ different frequency
Main Application:
-
EMC filters
-
Home Application
-
Switched -mode power supplies (SMPS), Power supplies
-
Solar inverters
-
Uninterruptable power supplies (UPS)
-
Welding equipment
-
Wind generators
-
Frequency converters
As an leading manufacturer of amorphous and nanocrystalline core products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about common mode choke quickly!
