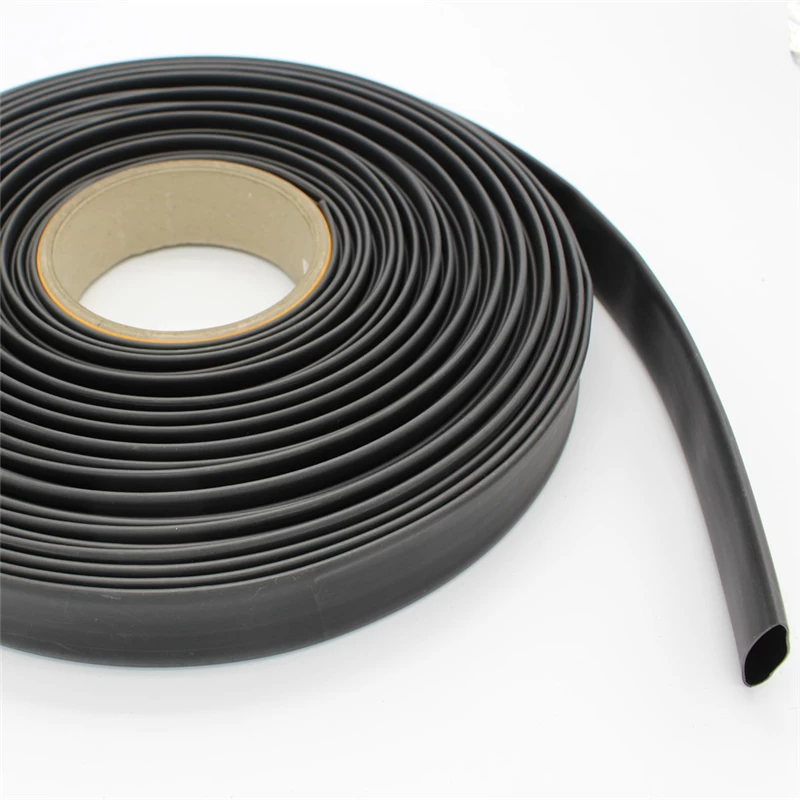

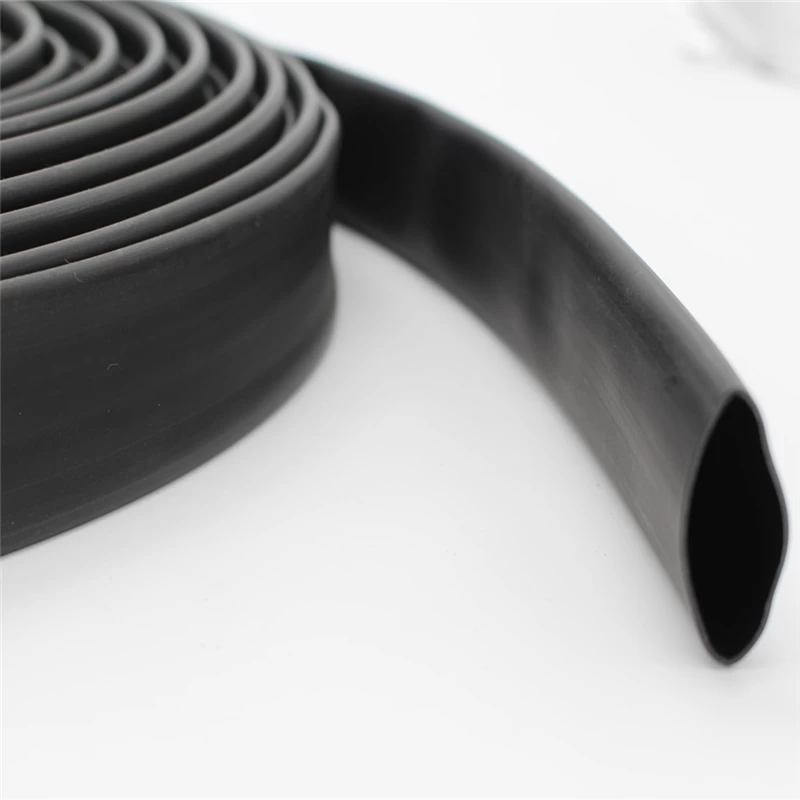

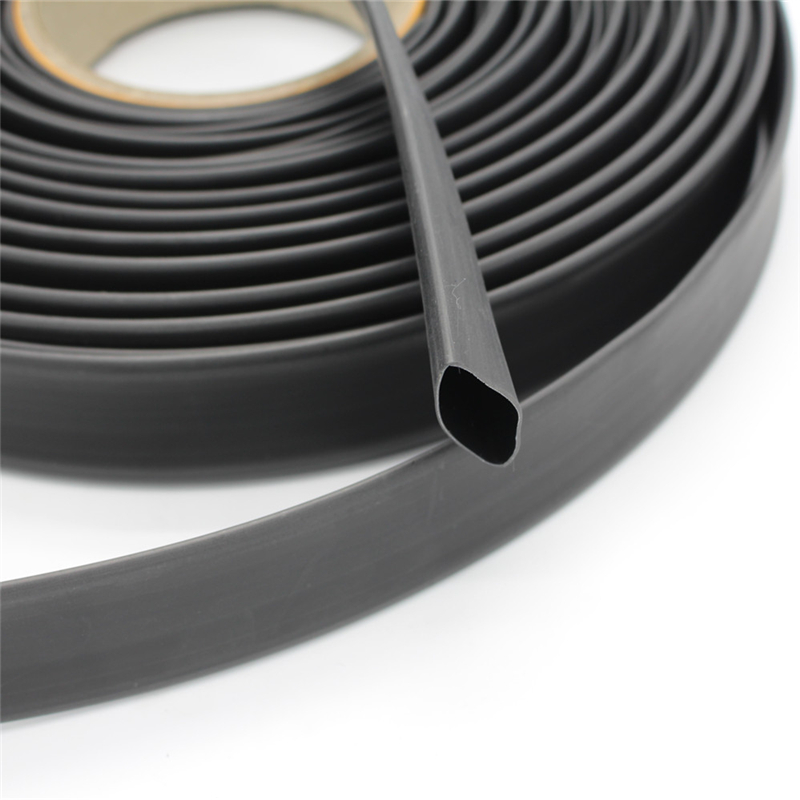

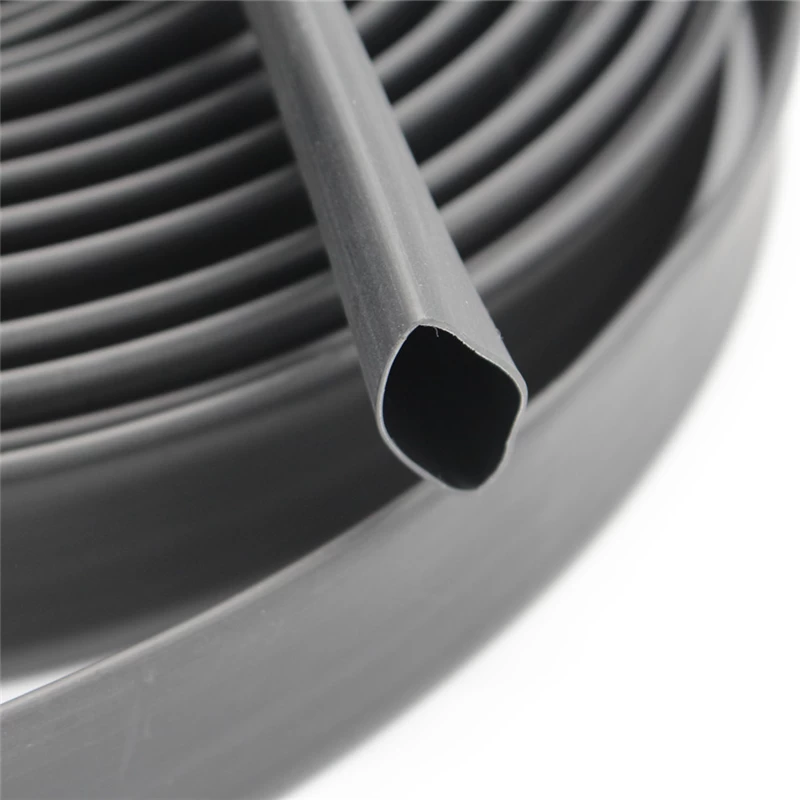

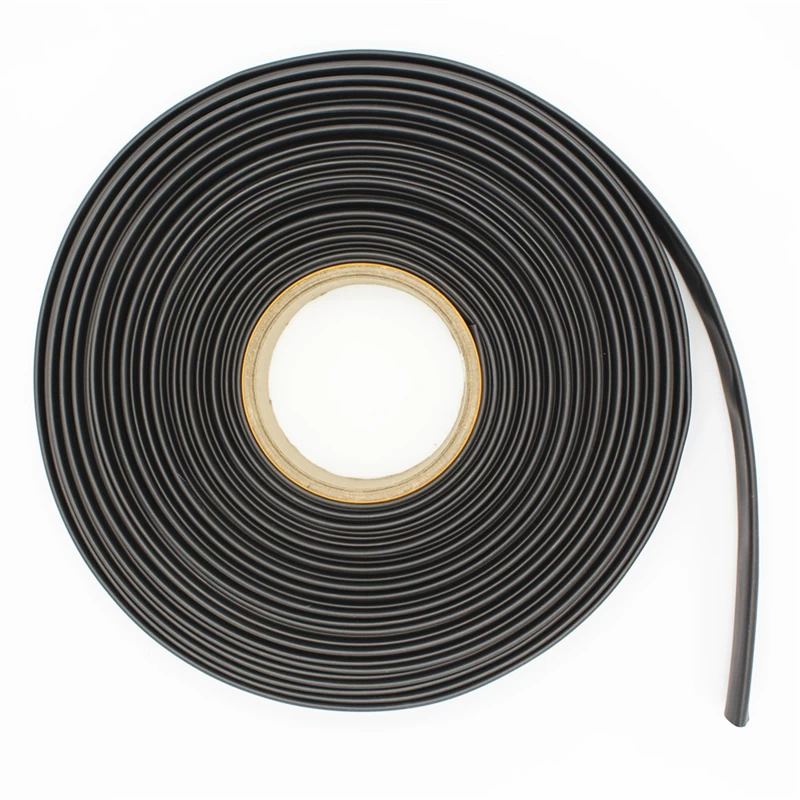

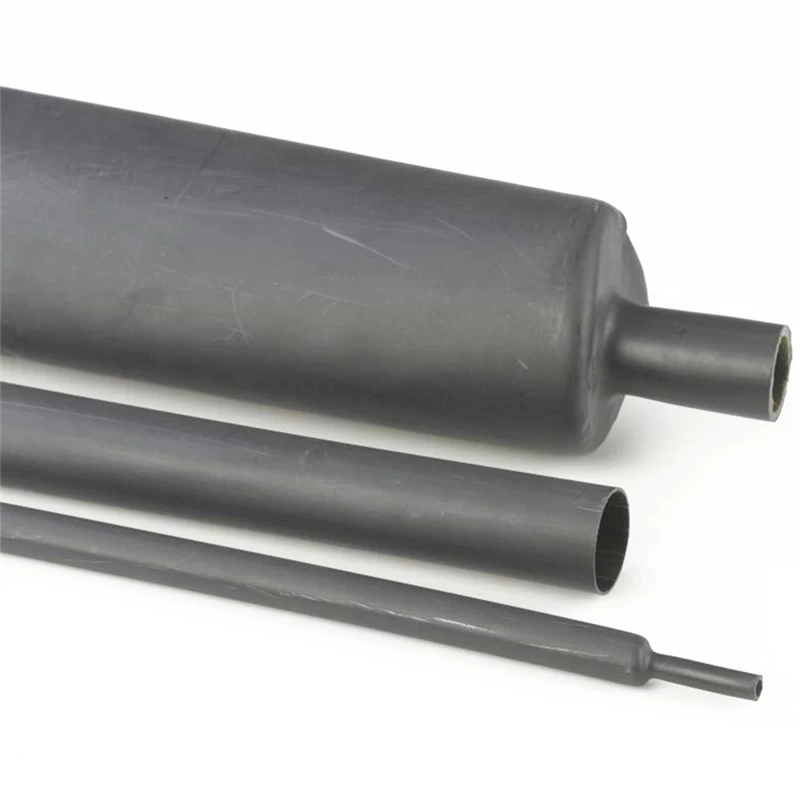

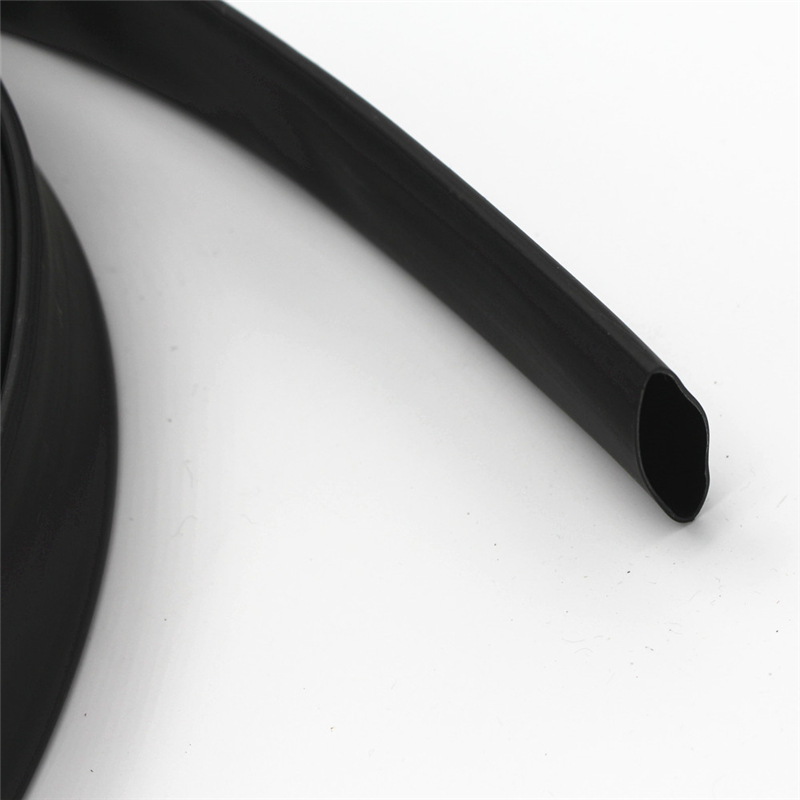

Hi-temp Heat Shrink Tube

Hi-temp Heat Shrink Tube is a shrinkable plastic tube used to insulate wires, providing abrasion resistance and environmental protection for stranded and solid wire conductors, connections, joints and terminals in electrical work.



Description

Hi-temp heat shrink tube is polyolefin tubing provides excellent electrical insulation, protection from dirt, dust, solvents, and foreign materials as well as providing strain relief.


Feature

Use 120 to 180°F heat gun, and it is 3:1 shrink ratio, there is stick inside of the tube. The wall thickness is 2 times thick as normal shrink tubes.


Application

Used to insulate wires, wire splicing, connections, terminals.


Specifications

Datasheet
Material polyolefin
Operating temp range -67°F to 275°F
Standard Color Black
Package Carton box
Custting Tools Scissors


Part Number Description
620108 1/8" ID
620104 1/4" ID
620308 3/8" ID
620102 1/2" ID
621116 11/16" ID
621000 1" ID
622000 2" ID
623000 3" ID


Notes:

Other size upon request.

Custom packages upon request.
