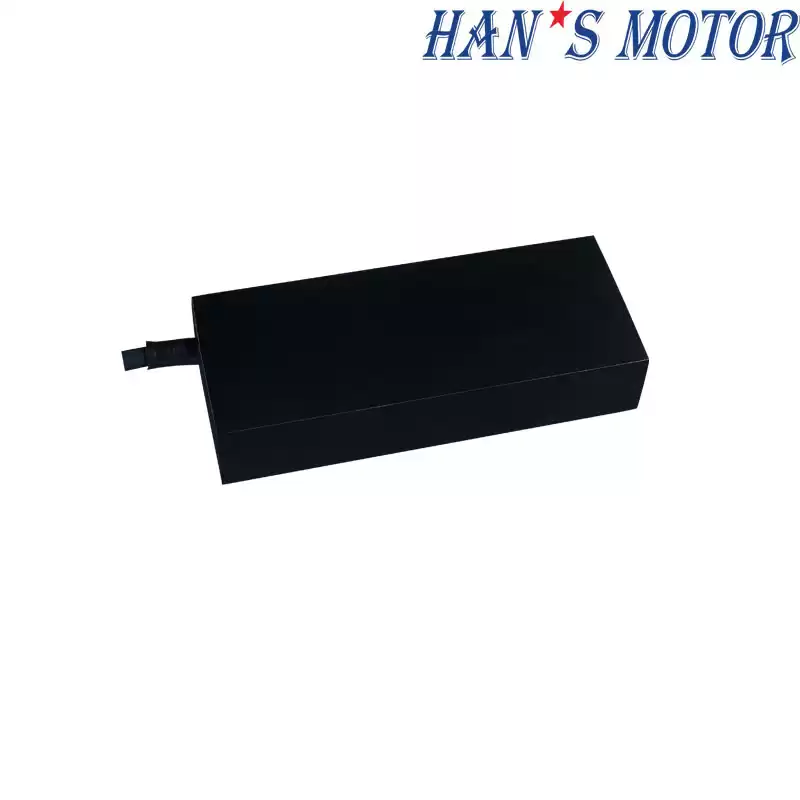

Product name：High acceleration and precision iron core linear motor LSMFJ-100 for printing uv machine
Specifications
Mover Spec: LSMFJ10xxxx-x-H-NC-N-D00.5
|
103A-S
|
203A-P
|
Performance Parameters
|
Symbol
|
Units
|
Series
|
Parallel
|
Continuous Force (Tmax）
|
Fc
|
N
|
174
|
332
|
Peak Force
|
Fp
|
N
|
593
|
1329
|
Motor Constant (25℃)
|
Km25
|
N/Sqrt(W)
|
21.1
|
29.7
|
Max.Continuous Power Dissipation
|
Pc
|
W
|
94
|
171
|
Continuous Current (Tmax）
|
Ic
|
Arms
|
2.3
|
4.4
|
Peak Current (1S)
|
Ip
|
Arms
|
9.0
|
18.0
|
Force Constant (25℃，±5%）
|
Kf
|
N/Arms
|
75.6
|
75.6
|
Back EMF Constant (25℃，±5%）
|
Ke
|
Vrms/m/s
|
25.2
|
25.2
|
Resistance(25℃，±5%）P-P
|
R
|
Ω
|
8.6
|
4.3
|
Inductance(25℃，±20%）P-P
|
L
|
mH
|
30.6
|
15.3
|
Max Coil Temperature
|
Tmax
|
℃
|
120
|
120
|
Polar Distance (N-N) (360℃ Electrical cycle)
|
2τ
|
mm
|
20
|
20
|
Magnetic Attraction
|
Fa
|
kN
|
1.0
|
1.0
|
Max.DC Bus Voltage
|
Ubus
|
V
|
600
|
600
|
Vmax,Fc@Vbus=310Vdc
|
|
m/s
|
4.0
|
4.1
|
Vmax,Fp@Vbus=310Vdc
|
|
m/s
|
1.7
|
1.7
|
Vmax,0@Vbus=310Vdc
|
|
m/s
|
4.9
|
4.9
|
Vmax,Fc@Vbus=537Vdc
|
|
m/s
|
7.4
|
7.5
|
Vmax,Fp@Vbus=537Vdc
|
|
m/s
|
3.7
|
3.7
|
Vmax,0@Vbus=537Vdc
|
|
m/s
|
8.6
|
8.6
|
Mover Mass
|
Mp
|
Kg
|
1.2
|
2.4
|
Stator Mass within unit length
|
Ms
|
Kg/m
|
7.0
|
7.0
|

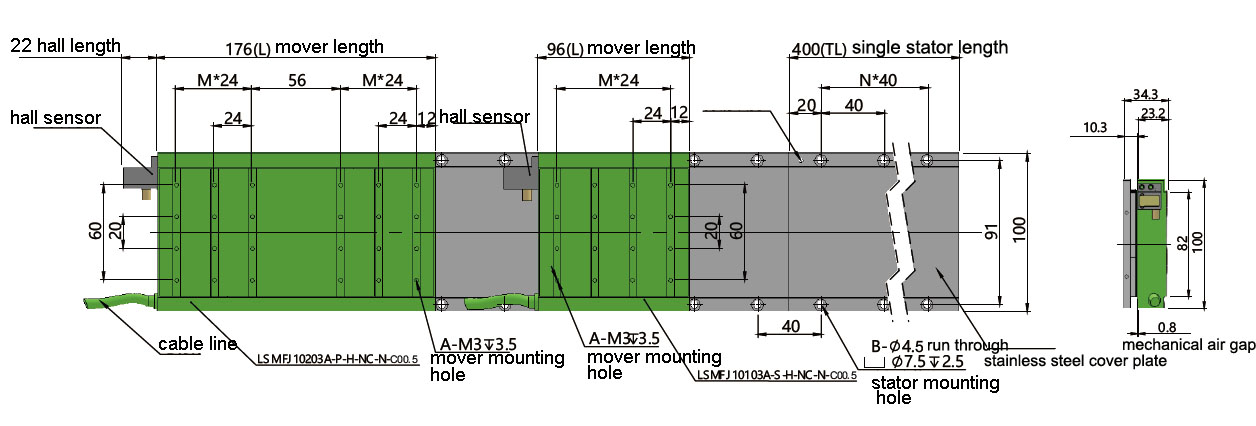

Dimension
Mover Length
|
Mover model
|
Mover length L
|
M
|
Mover mounting hole A
|
LSMFJ10103A-S-H-NC-N-C00.5
|
96
|
3
|
16
|
LSMFJ10203A-S-H-NC-N-C00.5
|
176
|
2
|
24
|
Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/ 12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
Stator Length
|
Stator model
|
Stator length TL
|
N
|
Stator mounting hole B
|
LSMFJ2A-W100-L40
|
40
|
0
|
2
|
LSMFJ2A-W100-L80
|
80
|
1
|
4
|
LSMFJ2A-W100-L200
|
200
|
4
|
10
|
LSMFJ2A-W100-L320
|
320
|
7
|
16
|
LSMFJ2A-W100-L400
|
400
|
9
|
20
|
Suitable for any mover of this series.
