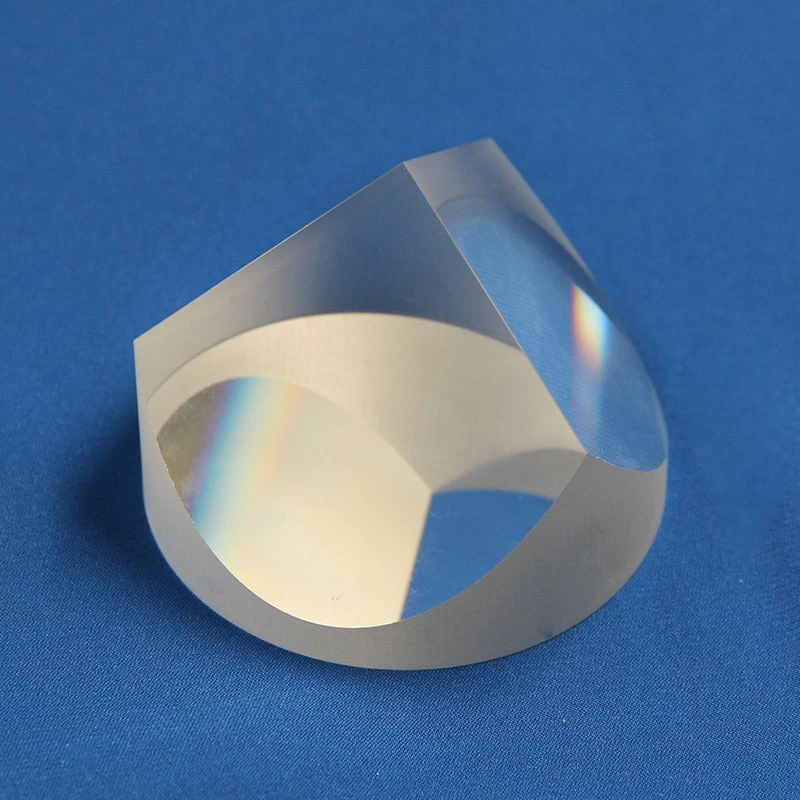

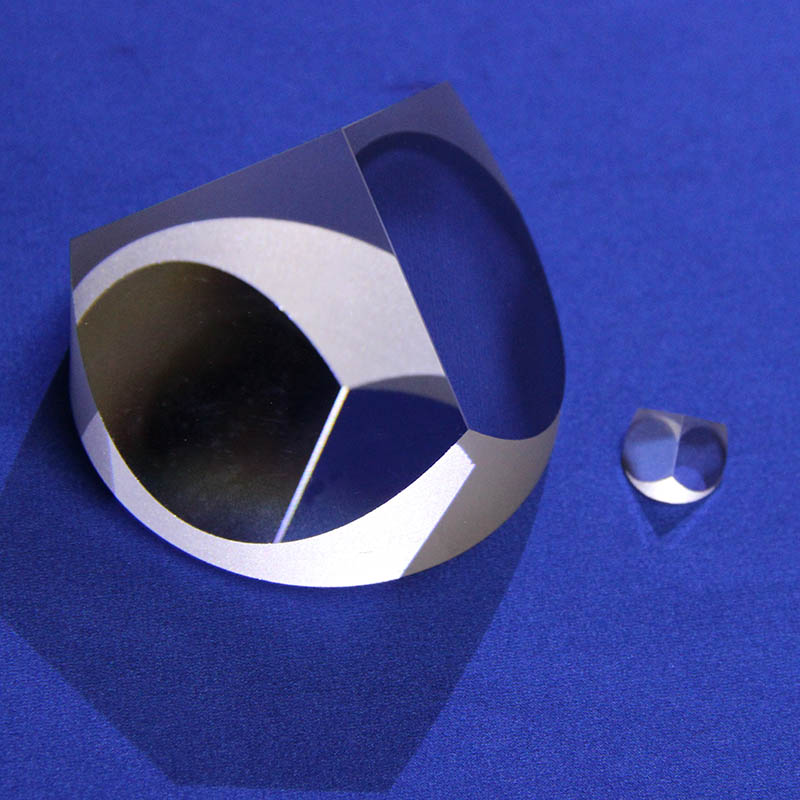

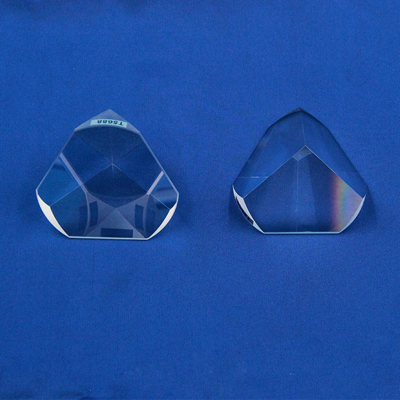

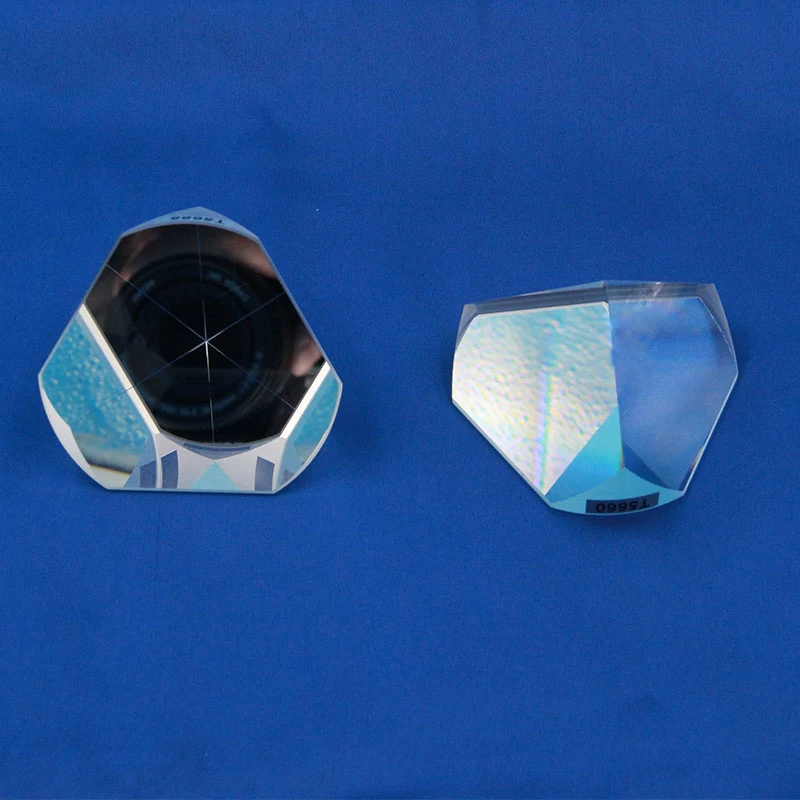

High Accuracy Corner Cube Prism
Corner Cube Prism also called Retroreflector. It has three mutually perpendicular surfaces and a hypotenuse face. Light entering through the hypotenuse is reflected by each of the three surfaces in turn and will emerge through the hypotenuse face parallel to the entering beam regardless of the orientation of the incident beam. For its special performance,it is often used to the distance measurement, optical signal process and laser.
|
Specifications:
|
|
|
Material:
|
N-BK7, Fused Silica
|
|
Dimension Tolerance:
|
+0.0, -0.2mm
|
|
Surface quality:
|
40-20 S/D
|
|
Surface flatness:
|
λ/4 on front surface,λ/8 on reflective surfaces
|
|
Deviation 180°:
|
±5 arc sec(Standard); ±3 arc sec(High Precision)
|
|
Clear Aperture:
|
>85% of dimension
|
|
Bevel:
|
<0.25mm×45°
|
|

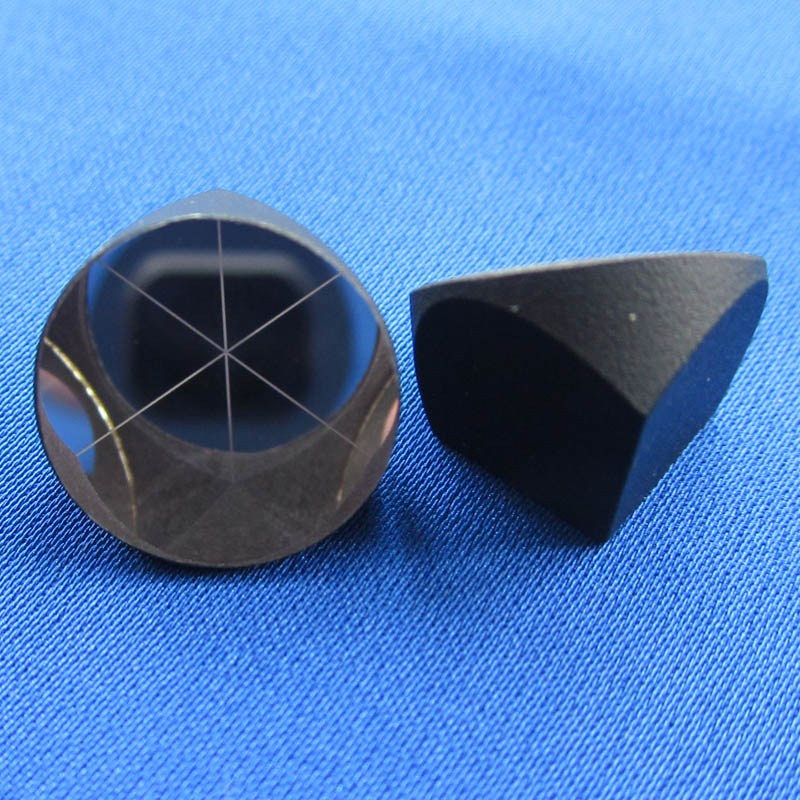

Coating:
|
1.Uncoated
|
|
|
2.Silver(Copper)+ Black paint on reflective surfaces
|
|
|
3.AR coating, R<0.25%, on front surface AOI=0°;
|
|
|
Silver(Copper) + Black paint on reflective surfaces.
|
|

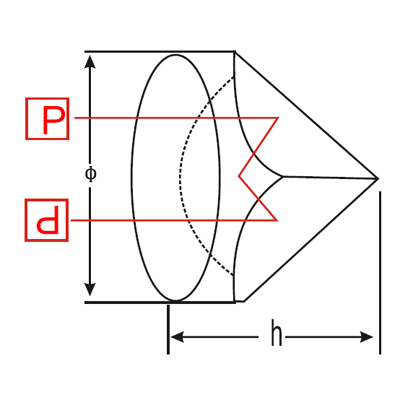

Typical Sizes:
|
|
|
|
Diameter(mm)
|
Height(mm)
|
Deviation
|
|
Φ12.7
|
10.2
|
180+/-5"
|
|
Φ15.0
|
11.3
|
180+/-5"
|
|
Φ25.4
|
19
|
180+/-5"
|
|
Φ38
|
28.5
|
180+/-5"
|
|
Φ50.8
|
37.5
|
180+/-5"
|
|
Φ70
|
52.5
|
180+/-5"
|
Other sizes and shapes are available.
