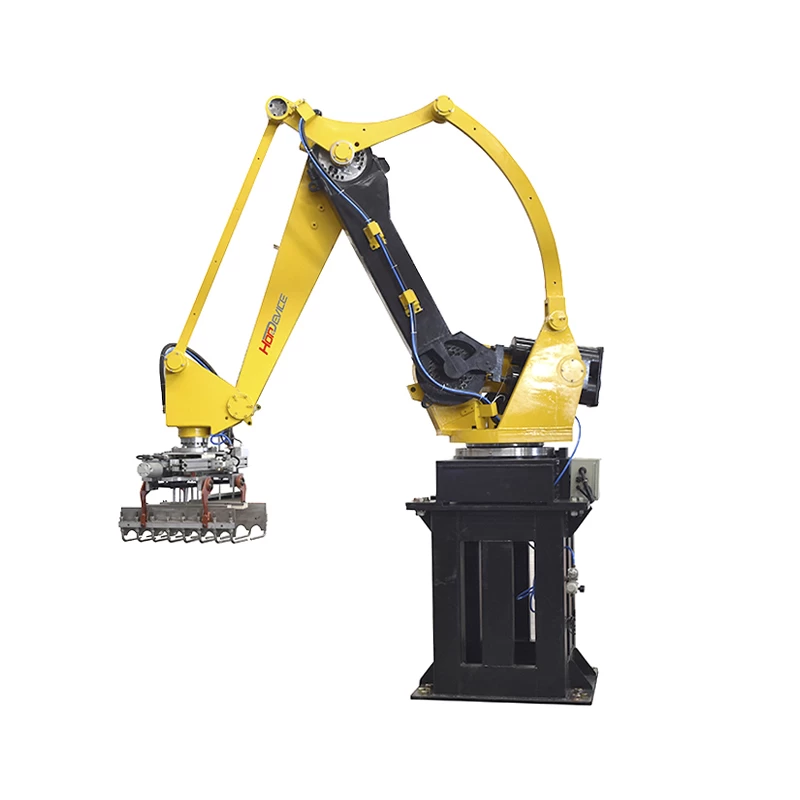

High accuracy palletizing robot HP-SR130A
Varied Loading:
Free configuration of material of different sizes and shapes
Optional varied Grippers can achieve different small or big pallet handling.
Space Saving:
Wide operating radius, interference under effective control,
Tight and flexible body design
Simple Operation:
Simple operation, available for dialogue teaching, automatic program generation.
Technical Parameter:
|
Model
|
HP130A
|
|
Unit Structure
|
Articulated Robot
|
|
Quantity of Controlling Axles
|
4 axles(J1，J2，J3，J4)
|
|
Driven type
|
AC servo motion
|
|
Installation Method
|
Ground Installation
|
|
Max Range of Motion
|
J1:
|
±3rad
|
J2
|
+0.61—1.48rad
|
|
J3
|
+0.3-1.57rad
|
J4
|
±.14rad
|
|
Highest speed
|
J1:2.06rad/s, J2:1.74rad/s, J3:1.74 rad/s, J4: 5.93rad/s
|
|
Max Load of wrist
|
130 kg
|
|
First Arm Load
|
25kg
|
|
Position precision
|
0-45℃
|
|
Surrounding Temp.
|
0-45℃
|
|
Surrounding Moisture
|
20-85%
|
|
Condition Setting
|
Installation surface vibration allowed, below 0.5G
|
|
Weight
|
1150KG
|
|
Power
|
14kw
|
Easy to repair and maintain
Less main components, low maintenance cost, energy-saving, low power consumption around 1/5 of similar mechanical palletizing robot, small area occupied, suitable for different environment, high safety, long and continuous stable working.
●Application Field:
To achieve container loading and palletizing of varied shapes of products, such as chemical, construction material, feed stuff, Food, drinks, beer, automatic material flow
● Packaging Type:
Bagging, box packaging, can packaging, bottle package( tailored non-standard Gripper according to customer’s requirements)
● Palletizing:
Flexible to deal with on-site palletizing requirements, available for non-standard palletizing design upon customers’ requests.
