TOPSORT Plastic Color Sorting Machine provide sorting solutions for all kinds of plastic flakes, help you improve the quality of processed plastic.TOPSORT has already developed more than 10 different types of plastic color sorter which are designed for plastic sorting. High speed with remote control AI system,sorting precision can achieve 99.99%. More details as following.
Core Technologies
Intelligent Image Recognition
Hundreds of professional identification algorithms, integrated with the third-generation multispectral confocal technology,realize multi-dimensional and multi-feature learning such as color,shape, texture, area, weight, soft and hard, etc.Continuous perception, improvement, and data iteration.
AI Smart Sorting
One- click smart selection, smart simulation technology,real-time dynamic online tracking,bring the ultimate operating experience;
TOPSORT Cloud Think Tank
HT invested to build an open mass sorting application database,cloud interactive storage, a wide range of material solutions are exclusively created for you,share the convenience and value of the big data era with users.
Intelligent Care System
Feeding protection + soft landing buffer design, detail protection, sincerely for you;
Balanced Feeding System
Intelligent analysis adaptive material level flow rate system,balance the flow of the production line to ensure the best sorting effect, better production capacity, and unattended;
Intellectual Defense Guard
Multiple intelligent early warning protection,no worries about equipment operation, unlimited distance,serve us everywhere;
Super Alloy High Frequency Solenoid Valve
National patent, high frequency and low air consumption,wear-resistant and high-temperature super alloy, matching for lifetime;
Breathable Bionic Wind Net System
Engineering bionic design, intelligent breathing air network system, multi-directional separation design, non-stop cleaning,more thorough cleaning;
S-class Professional Vision System
Using customized ultra-high transmittance optical lenses, multi-frame synthesis noise reduction, true color reproduction, more accurate identification of dark light and dark color differences, and better system optical quality with E image processing technology,to meet every pursuit of the ultimate sorting effect user.
Intelligent Control Dimming System
TOPSORT intelligent control light source system has been upgraded again. High brightness, high penetration light source, intelligent control system intelligently matches material sorting requirements and changes in the environment, and the penetration ability of dark light and dark light absorbing parts is comprehensively improved

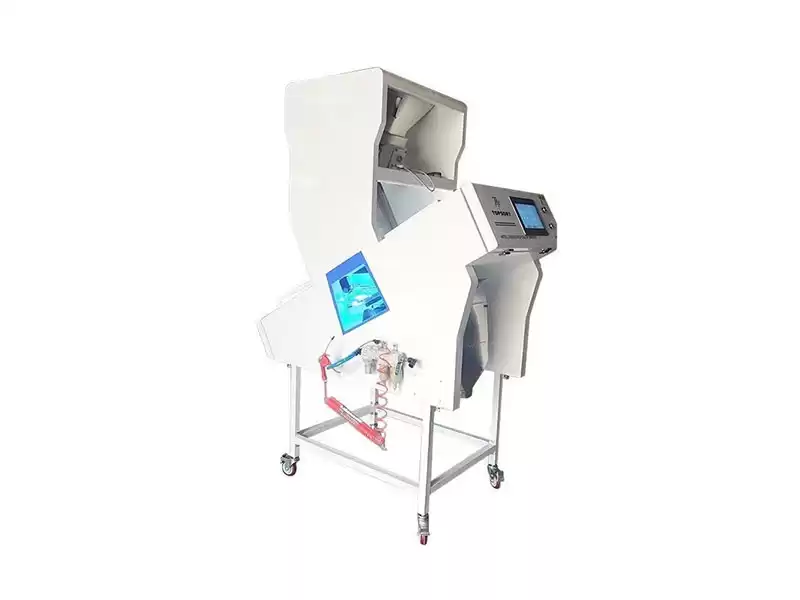

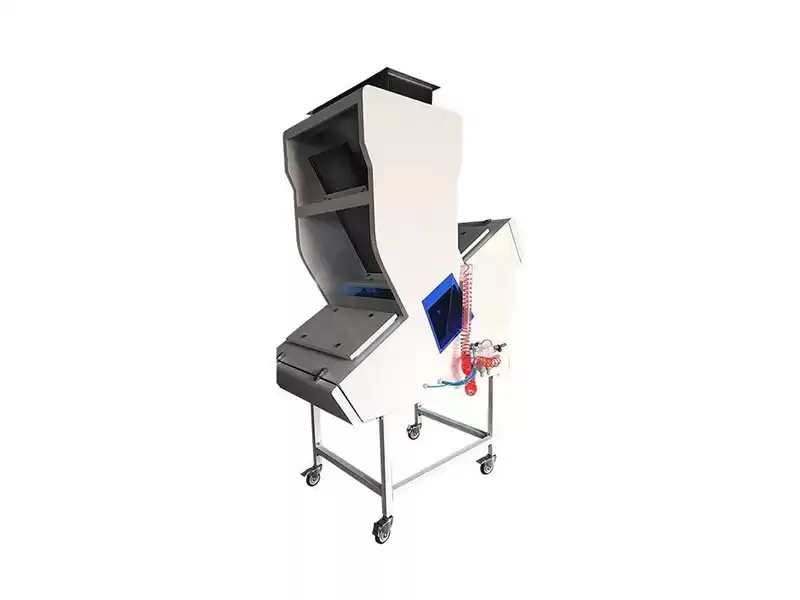

Plastic Color Sorter Machine Core Components
Sorting Sulotions For Plastic PET
Why Choose TOPSORT Color Sorter Machine
1. Over 20 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 100 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
Plastic Color Sorter Technical Parameters
| Model |
Power(KW) |
Capacity (T/H) |
Sorting accuracy |
Power vottage (V/HZ) |
Air pressure (Mpa) |
Air consumption (M3/MIN) |
Dimensions (MM) |
Weight(KGS) |
| MINI-32 |
0.5 |
0.1-0.2 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<0.5 |
420*1100*1820 |
100
|

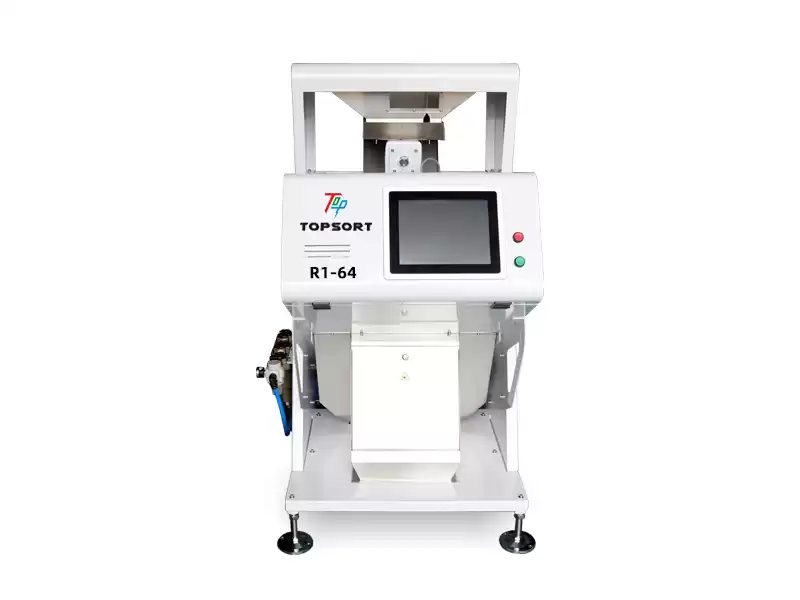

| R1-64 |
0.8 |
0.15-0.3 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<1.0 |
880*1504*1760 |
300
|
| R2-128 |
1.3 |
0.2-0.4 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<2.0 |
1314*1504*1760 |
400 |
| R3-192 |
1.9 |
0.3-0.6 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<3.0 |
1650*1504*1760 |
500 |
| R4-256 |
2.4 |
0.4-0.8 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<4.0 |
1986*1504*1760 |
650 |
| R5-320 |
3.0 |
0.5-1 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<5.0 |
2322*1504*1760 |
800 |
| R6-384 |
3.6 |
0.6-1.2 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<5.5 |
2658*1504*1760 |
1000 |
| R7-448 |
4.1 |
0.7-1.4 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<6.0 |
2994*1504*1760 |
1200 |
| R8-512 |
4.7 |
0.8-1.6 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<6.5 |
3330*1504*1760 |
1400 |
| R10-640 |
5.8 |
1-3 |
≥99.999% |
220V/50HZ/60HZ |
0.6-0.8 |
<8.0 |
3666*1504*1760 |
1800 |

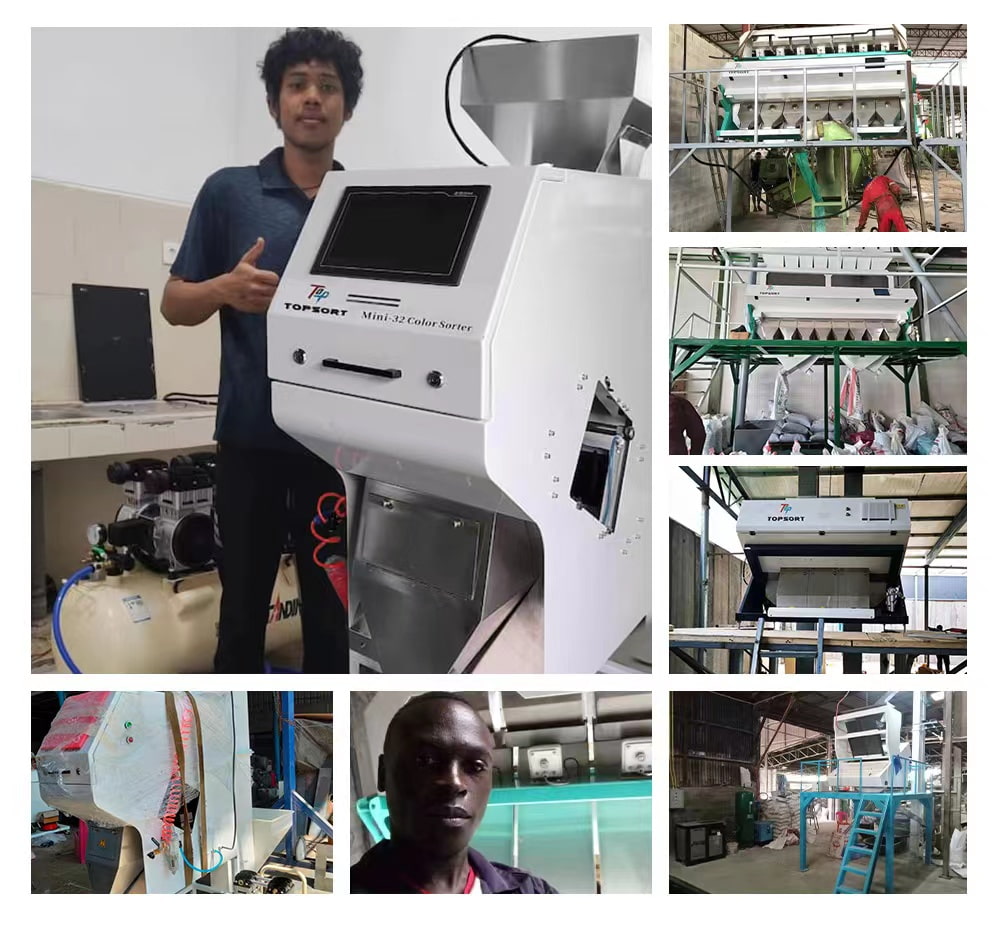

Customer Cases
Customer Concerns
Question 1: What are your advantages compared with your competitors?
Answer:With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price. 2). Good customer service: Fast response to any inquiry or question. 3). On-time delivery.
Question 2: Are you a manufacturer?
Answer: Yes, we are glober manufacturer with more than 18 years' color sorter producing and export experience.
Question 3: How to install and use the machine?
We will supply the installation instructions or videos and our engineers will train the operators.
Question 4. How long about the guarantee period?
Two years. The warranty period starts on the day of delivery.We supply lifelong software upgrade services for our customers.
Question 5: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual,the test report and other data sheets related shall be provided by us.
