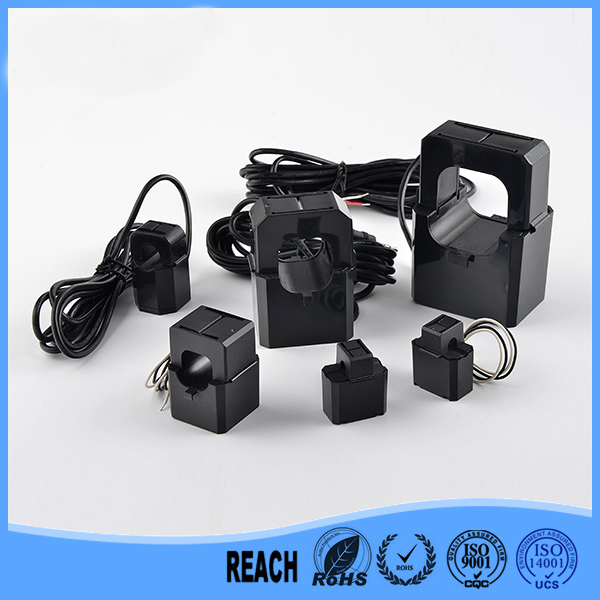

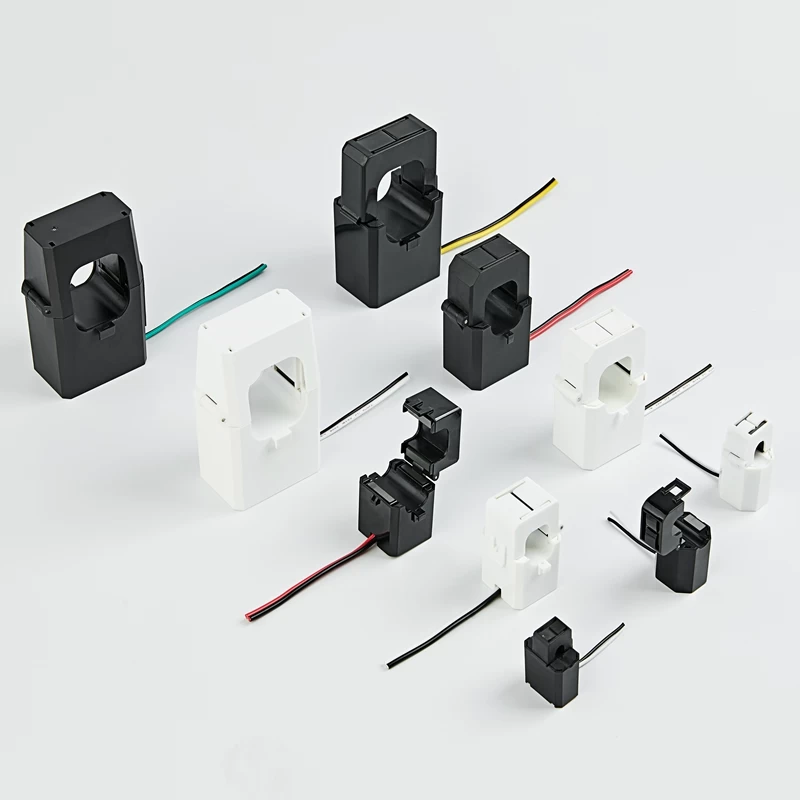

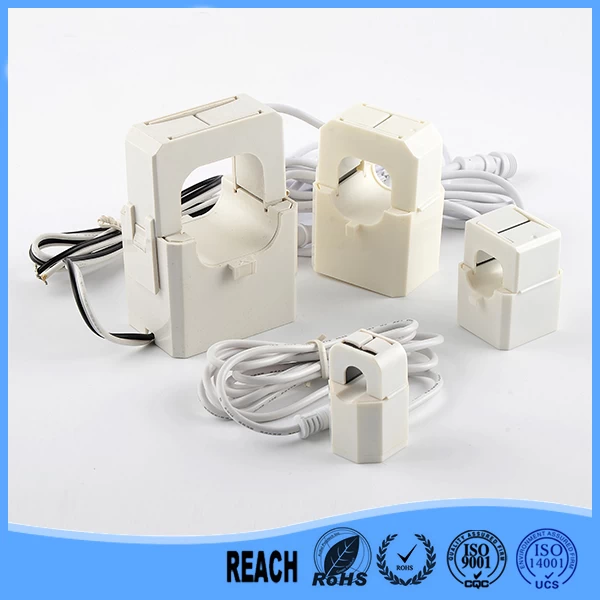

High accuracy Split core current transformer for energy metering and smart home system

Standard / Customized split core current transformer

Steady in phase shift over the whole range
Small in size,clamp type,easy to use no need of cutting cable
Various of configuration and output characteristics
RoHS compliant, CE, ETL Certificate.



High accuracy Split core current transformer for energy metering and smart home system


Specification


Model No.

Rated  Input Current
   (A)

Rated Output

Accuracy

Dimension(Unit: mm/inch)

Ф

A

B

C

D

E

CT304

5-30A
510152030

0-30mA
or  0.333V

0.5%~3%

6

26.4

16.0

32.0

To be defined

To be defined

0.236

1.039

0.630

1.260

CT312

5-85A
 (510506075

0-50mA
or  0.333V

0.5%~3%

10

23.5

26.2

42.0

0.394

0.925

1.031

1.654

CT313

10-200A  1050100200

0-200mA
or  1A

0.5%~3%

16

30.5

31.0

45.2

0.630

1.201

1.220

1.780

CT314

10-300A  1050100200250300

0-200mA
or  1A/5A

0.5%~3%

24

45.0

33.8

64.7

0.945

1.772

1.331

2.547

CT315

10-1000A20 100250300400630 800 1000

0-500mA
or 1A/5A

0.5%~3%

36

58.0

40.5

84.0

1.417

2.283

1.594

3.307


Applications

Split core current transformer design is used for energy efficiency monitoring and automation applications. These include sub-metering cost allocation, dynamic energy consumption and peak load analysis.

ZTC series of AC Split core current transformers are a simple to use, compact split-core design which is easily installed for metering applications. They are ideal for distributed measurement systems and can be retro-fitted into existing installations and non-interruptible equipment as there is no requirement for disconnection and re-connection of wiring.

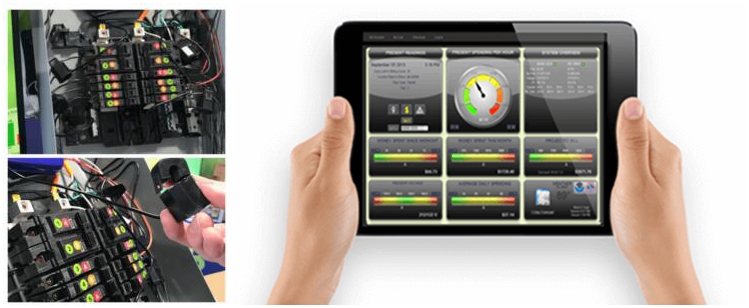

Success cases - Smart energy monitoring system

Providing customized split core sensors for some well-known energy management companies. To assist them launch smart energy monitoring system.

split core current transformer China


Why Choose Us?

  1. Reliable supplier with ISO certificate
  2. Fast technical support
  3. Just in time production process
  4. Low shipping cost
  5. Customization without Non-recurring engineering




We are specialized in split core current transformer for smart energy monitoring system, providing customized service and expertise in consulting, design and manufacturing of current transformers.


Contact us today to discuss your project!




INQUIRY

Contact us for all information about the product


click here to leave a message

leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
