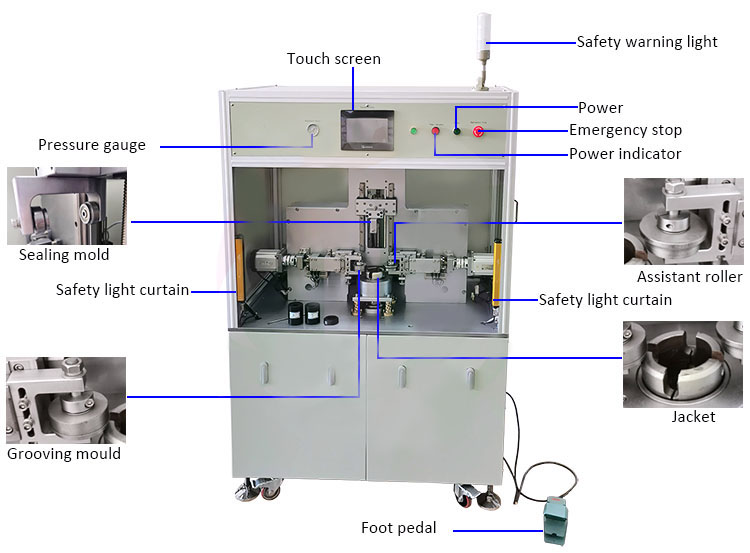

High Accuracy Threaded Cylindrical Supercapacitor Grooving And Pre-Sealing Machine
Main features
*Grooving and sealing are all driven by servo motor lead screw with high precision, precise control of the distance and speed of the feed, and no rebound of the feed (the cylinder will rebound due to compression resistance).
* The size of supercapacitor product grooving and sealing, can be set by the man-machine interface, automatically precision adjustment to the desired data.
* Slowly grooving
* It adopts jacketed fixed product, stable and without sloshing, high centering concentricity, uniform grooving and sealing, and good roundness.
* Adopt high-precision linear guide group feeding, high precision in grooving and sealing. size stable
*PLC control, man-machine interface display, easy to form automation.
*Using cover intelligent protection, safe and reliable.
* Appearance geometric design, exquisite and beautiful, easy to operate.
|
Model
|
TMAX-GCFK60 Grooving machine
|
|
Applicable products
|
diameter 60 mm batteries, super capacitor (diameter can be customized),height 50-180mm
|
|
Capacitor height after sealing
|
±0.05mm
|
|
Grooving height accuracy
|
±0.05mm
|
|
Grooving depth accuracy
|
±0.02mm
|
|
Service life
|
The normal service life of tooling molds reaches more than 5 million times
|
|
Capacity
|
≥ 3PCS
|
|
Activity rate
|
98%
|
|
Air source
|
adjustable from 0.5 to 0.7 MPa
|
|
Power supply
|
220V/50HZ
|
|
Air consumption
|
0.2 m3/min
|
|
Power
|
2.5KW
|
|
Dimensions
|
L1100mm *W900mm * 1700mm
|
|
Weight
|
800kg
|
