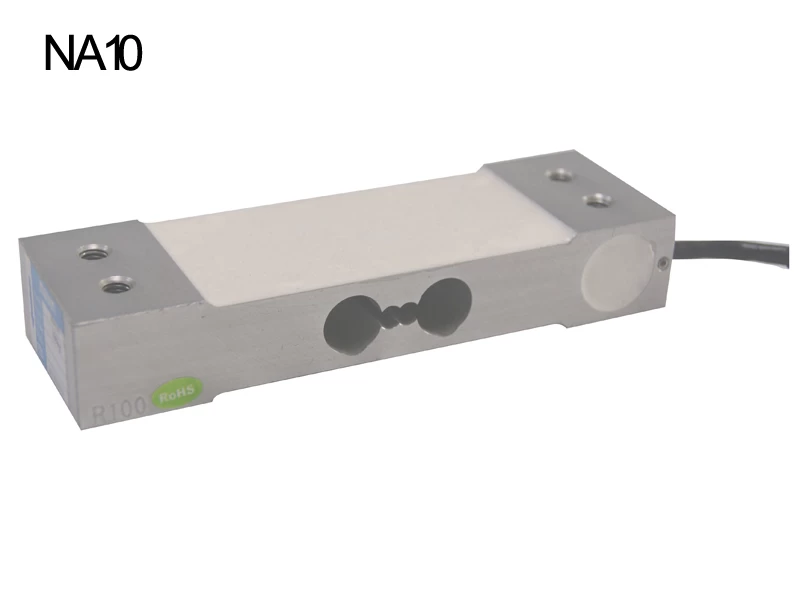

High Accuracy Weighing Load Cell NA10 C3
NA10 is a OIML Approved single point load cell with aluminum alloy material and surface anodized, suitable for a wide range of weighing scales. The OIML C3 Sensor is potted and silicone sealed construction, protected to IP66, provides a cost-effective solution that is approved to OIML C3 (3000 divisions).
Key Features：
High
accuracy OIML approved
Calibrated
to national standards
Aluminum
alloy construction
Easy
to install
Usage & Applications：
price
computing scales
counting scales
weighing scales
retail scales
Dimension：
NA10 C3 Specification：
|
Rated Capacities
|
30,35,60,100,200 (kg)
|
|
Rated Output
|
2.0 mV/V±10%
|
|
Zero Balance
|
±0.0200 mV/V
|
|
Non-linearity
|
0.02 %R.O.
|
|
Hysteresis
|
0.02 %R.O.
|
|
Repeatability
|
0.02 %R.O.
|
|
30mins Creep
|
0.02 %R.O.
|
|
30mins Return
|
0.02 %R.O.
|
|
Safe Overload
|
150 %R.O.
|
|
Ultimate Overload
|
200 %R.O.
|
|
Temperature Effect On Output
|
0.002 %R.O./℃
|
|
Temperature Effect On Zero
|
0.003 %R.O./℃
|
|
Input Impedance
|
410±15 Ω；1130±30 Ω
|
|
Output Impedance
|
350±5 Ω； 1000±10 Ω
|
|
Insulation Impedance
|
≥5000 MΩ/(50VDC)
|
|
Recommended Excitation
|
5~12 VDC
|
|
Maximum Excitation
|
15 VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
Aluminum Alloy
|
|
Protection Class
|
IP66 / IP67
|
|
Cable
|
φ4×0.5m
|
|
Recommended Platform Size
|
350×400 mm
|
|
Mode of Connection
|
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
|
