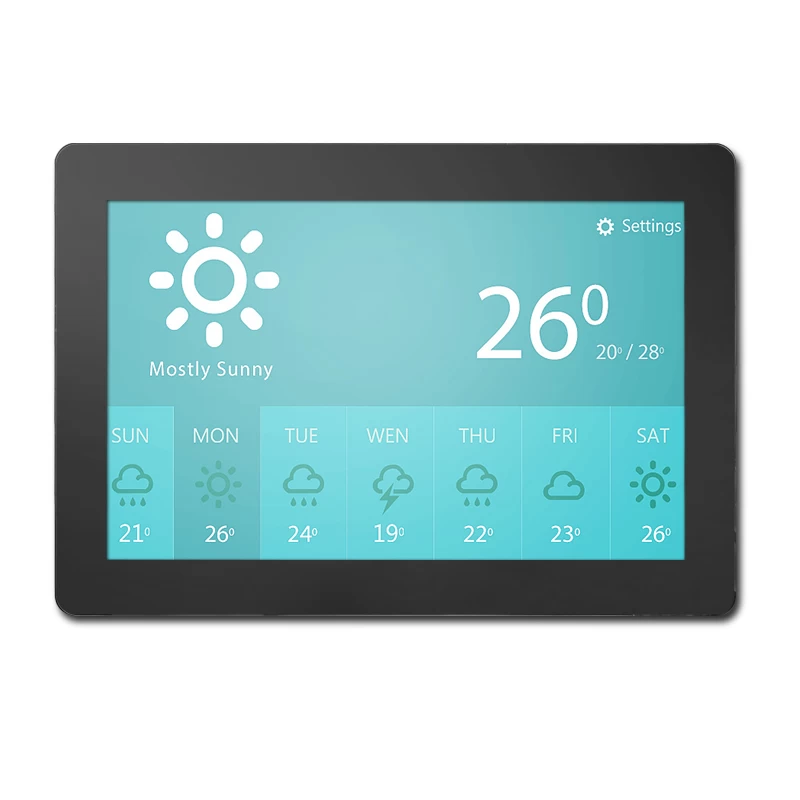

High brightness 1024x600 resolution 7 inch IPS LCD panel with Capacitive touch screen
|
Specification
|
|
Part No.
|
TST070WSBE-66C
|
|
Outline Dimension(mm)
|
190.08*121.92*5.38
|
|
Active Area(mm)
|
154.21*85.92
|
|
Resolution(dots)
|
1024*RGB*600
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
|
Number of Pixel(pixels)
|
1024RGB(H)xRGBx600(V)
|
|
Touch panel
|
with CTP
|
|
IC
|
|
|
Pixel arrangement
|
RGB Vertical stripe
|
|
Display mode
|
Normal white,IPS, 7.0 inch TFT
|
|
Surface treatment
|
Antiglare
|
|
View direction
|
ALL
|
|
Brightness
|
00 cd/m2
|
|
Power Consumption(w)
|
Panel
|
0.226(Typ.)
|
|
B/L system
|
1.674(Typ.)
|
|
Interface
|
LVDS
|
|
Module lifetime(Hours)
|
50,000-100,000
|
