High Capacity Bean Colour Selector White Bean Colour Selecting Machine

Are you tired of hand sorting beans?

Don’t miss using this high-tech AI bean colour selecting machine to improve the quality of your beans, achieve perfect quality control with less effort, and ultra-high consistency. AI color sorter release the burden of beans colour sorting.





AI bean colour selecting machine release the burden of beans sorting.One -click to achieve  to achieve 300+ miscellaneous grain materials sorting,exporting healthy and high-quality products for the world.

The working principle of a black bean colour selecting machine is based on the fact that different coloured beans have different optical properties. The machine uses sensors to detect the colour of the beans and then separates them according to their colour. The machine uses light sensors to detect the colour of the beans and then passes them through a sorting mechanism which separates them into different containers according to their colour.

Bean Color Sorter Features

1.Black bean colour selecting machines are designed to quickly and accurately select black beans from a mixture of other types of beans. These machines use advanced optical sorting technology to identify the colour of each bean and separate them into different containers.

2 High-resolution cameras to detect the colour of each bean. Automated sorting process that can be adjusted for different sizes and shapes of beans

3.Ability to sort multiple varieties of beans at once.Adjustable speed settings for faster or slower sorting

4.Low power consumption and low noise levels.Durable construction for long-term use

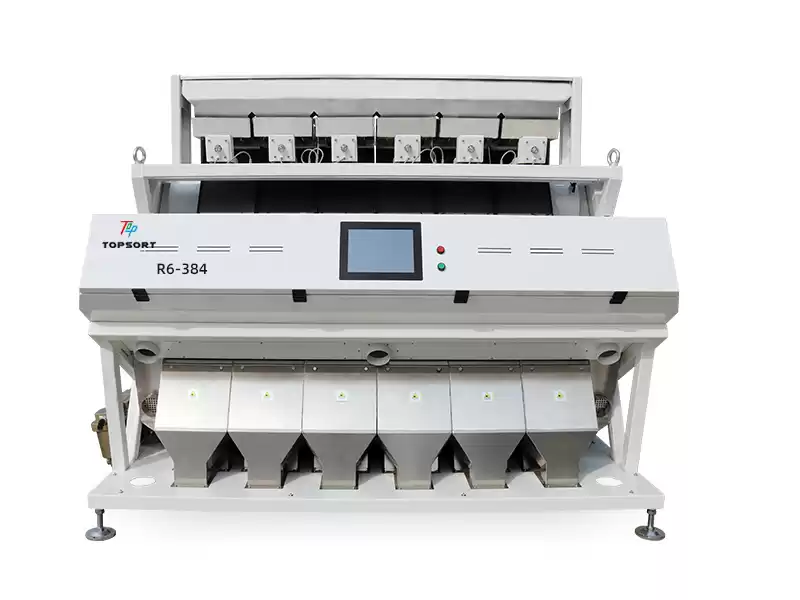

6 Chutes Bean Color Selecting Machine Technical Parameters

Model R6-384
Channles 384
Power 3.6kw
Weight 1000kgs
Dimensions 2658*1504*1760mm
Power voltage 220V/50HZ/60HZ
Sorting accuracy 99.99%
Capacity 6000-9000kgs/h
Air consumption <5.5m3/min
Air pressure 0.6-0.8Mpa



Superb Beans Sorting Sulotions

 bean sorter

bean color sorter

lentil color sorter

   soybean color sorter

kidney bean color sorterbean color sorterMung bean color sorterbean color sorter



TOPSORT Bean Color Sorter Core Advantages

color soting machine

color sorter

bean color sorter

bean colour sorting machine

TOPSORT Colour Sorter In Our Customer Site



bean color sorterWhy Choose TOPSORT Color Sorter

Top technology

1.Ultra HD imaging technology to see subtle defects with 4 times higher resolution;

2.High computing power deep learning platform with 4 times more data processing power;

3.Light source processing system, a unique three-color free switching background plate, the light source can be freely and flexibly switched, suitable for selecting different particles and sheet materials;

4.Intelligent operation platform, easy to operate, easy to grasp the real human-machine dialogue, intelligent docking;

5.Perfect after-sales service with big data + cloud interconnection. Realize 24-hour engineer online support.

Top quality

1.Equiped with imported famous brand key components to guarantee the reliability.

2.Professional production team, each step is inspected by professional quality inspectors before moving on to the next process Before shipping the machine,our engineer will test and save parameters,make sure they are in good condition.

Free Training

We supply complete training for all customers for free,we train in the following ways:

1. Engineers go to customer site to explain how to adjust, use and maintain the machine.

2. Customers can also come to our factory to learn the knowledge related to the machine.

3. Online remote control training or video training is available if customer no need send engineer.

Competitive Price

Competitive price thanks to the mass production and lean production

Remote control for global

Machine equipped with WIFI device, online solve software parameters setting problems.

Fast Delivery

Safe stock of standard parts of the machine guarantees the quick delivery of the machine

 A wealth of experience

More than 18 years of professional manufacturing experience, more than 10 years exporting experience overseas.Products are exported to more than 100 countries and regions. We can give you best sorting solutions according to your raw material .





More Models You Can Choose

bean color sorter

Technical Paramters

MODEL POWER VOLTAGE  AIR PRESSURE AIR CONSUMPTION DIMENSIONS MM WEIGHT KGS
MINI-32 0.5KW 220V/50HZ/60HZ 0.6-0.8MPA <1.0m³/min 420*1100*1820 100
R1-64 0.8KW 220V/50HZ/60HZ 0.6-0.8MPA <1.0m³/min 880*1504*1760 300
R2-128 1.3KW 220V/50HZ/60HZ 0.6-0.8MPA <2.0m³/min 1314*1504*1760 400
R3-192 1.9KW 220V/50HZ/60HZ 0.6-0.8MPA <3.0m³/min 1650*1504*1760 500
R4-256 2.4KW 220V/50HZ/60HZ 0.6-0.8MPA <4.0m³/min 1986*1504*1760 650
R5-320 3.0KW 220V/50HZ/60HZ 0.6-0.8MPA <5.0m³/min 2322*1504*1760 800
R6-384 3.6KW 220V/50HZ/60HZ 0.6-0.8MPA <5.5m³/min 2658*1504*1760 1000
R7-448 4.1KW 220V/50HZ/60HZ 0.6-0.8MPA <6.0m³/min 2994*1504*1760 1200
R8-512 4.7KW 220V/50HZ/60HZ 0.6-0.8MPA <6.5m³/min 3330*1504*1760 1400
R10-640 5.8KW 220V/50HZ/60HZ 0.6-0.8MPA <8.0m³/min 3666*1504*1760 1800
BSC-300 1.5KW 220V/50HZ/60HZ 0.6-0.8MPA <1.0m³/min 2330*960*1630 430
BSC-600 2.0KW 220V/50HZ/60HZ 0.6-0.8MPA <2.0m³/min 2330*1260*1630 550
BSC-1200 3.5KW 220V/50HZ/60HZ 0.6-0.8MPA <4.0m³/min 3240*1860*1630 1200
BSCD-1200 7.0KW 220V/50HZ/60HZ 0.6-0.8MPA <6.5m³/min 4000*2450*2500 2000

Customer Concerns

Question 1: What are your advantages compared with your competitors?

Answer:With rich industry experience and strict Product Quality Control systems, we provide:

1). Stable and reliable product at reasonable price. 2). Good customer service: Fast response to any inquiry or question. 3). On-time delivery.

Question 2: Are you a manufacturer?

Answer: Yes, we are glober manufacturer with more than 18 years' color sorter producing and export experience.

Question 3: How to install and use the machine?

We will supply the installation instructions or videos and our engineers will train the operators.

Question 4. How long about the guarantee period?

Two years. The warranty period starts on the day of delivery.We supply lifelong software upgrade services for our customers.

Question 5: Do you have English Manual for each machinery?

Answer: Yes. The instruction manual,the test report and other data sheets related shall be provided by us.
