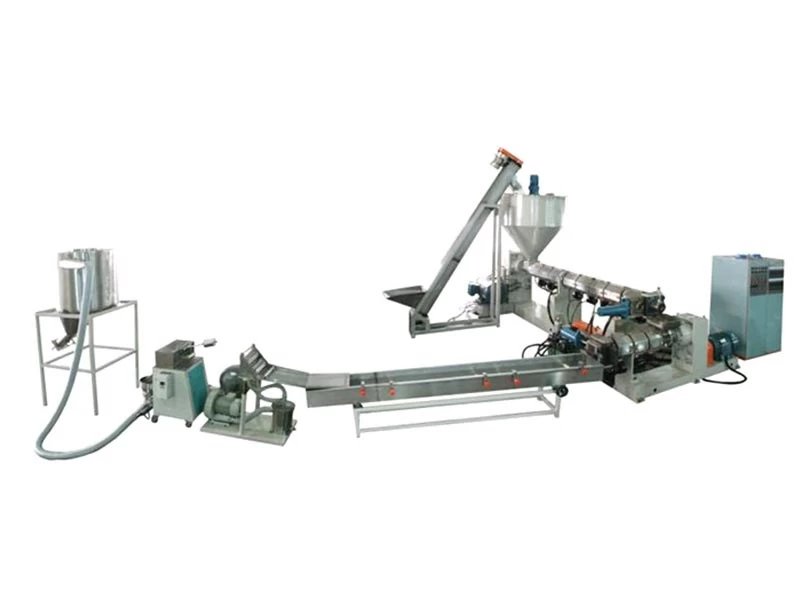

High Capacity PC Plastic pellet making machine
Pellet making machine Feature
Because the plastic is melted in a state had been scraping blade and the circulating cooling water, cooling solidification of different viscosity of polymer can be cut in this form, and do not form any dust, slice of good quality,and diced well-shaped, package transportation is convenient.
Can be adjusted according to the extrusion of automatic matching of the die head out of the feed rate and cutting speed, to change the granule size, also can use artificial adjusting tool post number (up to 4) cut grain size and shape to change.

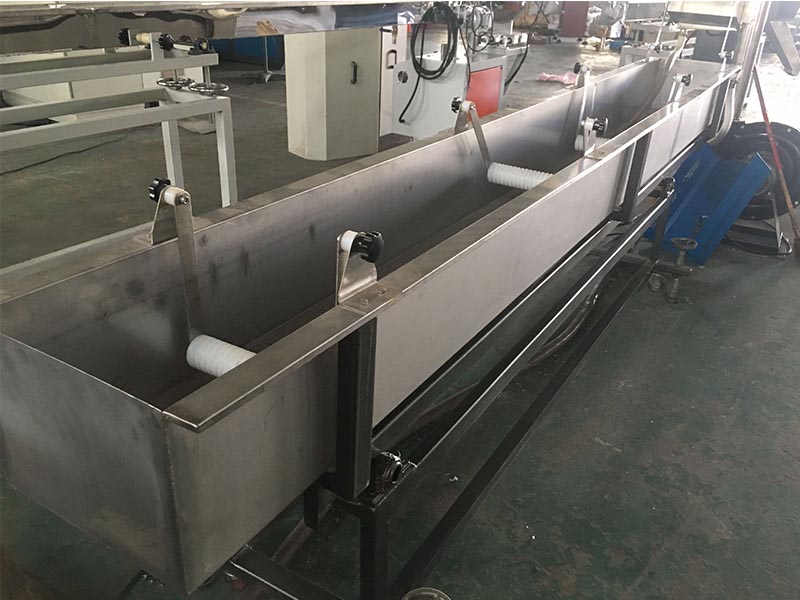

Horizontal water ring cut cut the plastic melt direct grain, grain cooling, the dryer after dehydration can effectively remove the finished product grain moisture, drying effect is good. The follow-up process configuration of vibrating screen, for grouping grain cooling, impurity, coarse material automatic discharge, make the granulation
Ordinary:yield (kg/h)：2-10, 5 -,10-80, 20-150-30,100-300, 300-600, 600-1000
High-energy type:yield (kg/h)：120-280,180-400, 250-650, 500-1200

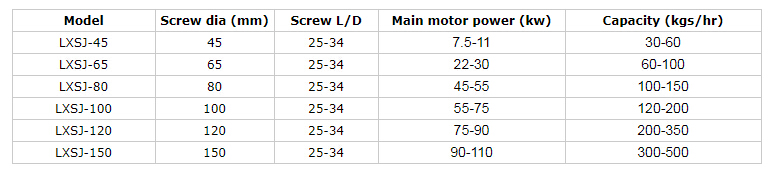

Pellet making machine Parameter
Our Advantages
1.According to users different requirement , adopts corresponding special screw design and different machine configuration
2.Powerful torque , hard gear surface gearbox ,ensure reliable operation and low noise the screw and barrels surface was specially processed for hardness with feature of high plasticization and fine design can discharge waste moisture and waste gas effectively .
Application
According to users different requirement, adopts corresponding special screw design and different machine configuration ,this production lines widely used for regeneration and coloring pelletizing of PS,ABS,PC,POM,PA,PP,PE,PVC,EVA,LCP and other various plastic material.
