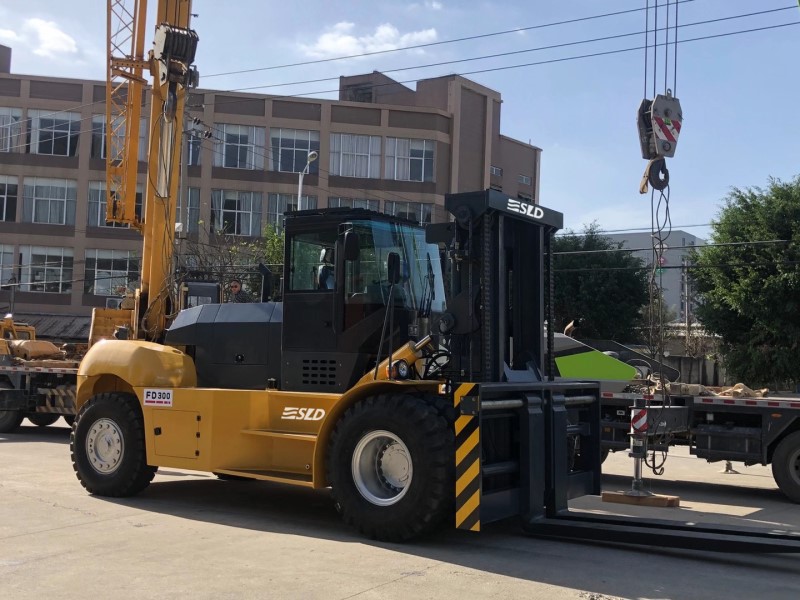

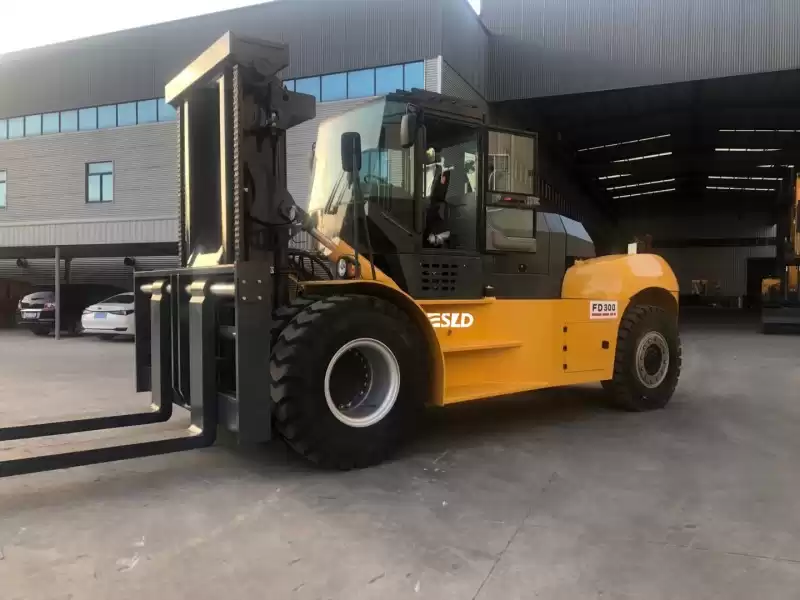

Main features of 30 tons forklift
(Model FD300):
1, Engine: Weichai engine, strong power, energy
conservation and environmental protection.
2, Transmission & torque converter: Hydraulic transmission
special for heavy-duty forklift, imported technology, reliable performance,convenient maintenance, smooth
transmission and convenient operation.
3, Driven axle: Reinforced driven axle, hub reduction, high strength axle
case, large load capacity, excellent stability and reliability.
4, Steering system: Adopt transverse oil cylinder
type steering bridge, full-hydraulic steering, flexible and light, reliable.
5, Control system: Pilot valve control device to make the work efficiency
and reduce drivers’ labor intensity.
6, Hydraulic system: Double pump
confluence, small system flow, low power consumption, reliable performance, excellent
operating performance
7, Cooling system: Adopt independent transmission
oil and hydraulic oil cooling, increasing system stability.
8, Frame structure: Linde
type exquisite workmanship &firm box-type
frame, improve the transverse, longitudinal stability of vehicles. The vehicle
get through the 3D finite element analysis, superior structure, reliable quality,
the main welding parts through the nondestructive testing, effective
coordination with the reinforced structure、bridge、box.
9, Tyre: Sino-us joint brand, resistant
to wear and sting, high strength tyres, bear heavy loaded - safe and reliable.
Our forklifts are the leaders in material handling and industrial forklifts and equipment, with better quality, and forklift price is affordable and cost-effective, making them the best choice for you.
|
Parameters:
|
Vehicle
configuration
|
|
FD300
|
|
Performance
|
Rated load
|
|
30000
|
|
Load center
|
|
1250
|
|
Mast tilt angle (front/rear)
|
º
|
6/12
|
|
Overall dimensions
|
Length
|
mm
|
9640
|
|
Width
|
mm
|
3200
|
|
Height
|
mm
|
4010
|
|
Mast lifting height
|
mm
|
4000
|
|
Fork size (L*W*H)
|
mm
|
2400X300X120
|
|
Min. turning radius
|
mm
|
6600
|
|
Max. travel speed (with load)
|
Km/h
|
24
|
|
Lifting speed (with load)
|
mm/s
|
280
|
|
Gradeability (with load)
|
%
|
20
|
|
Weight
|
Kg
|
38000
|
|
Tyre
|
Front
|
|
4X24.00-32PR
|
|
Rear
|
|
2X24.00-32PR
|
|
Wheel tread
|
Front
|
mm
|
2330
|
|
Rear
|
mm
|
2140
|
|
Wheelbase
|
mm
|
4800
|
|
Min. ground clearance
|
mm
|
350
|
|
Engine
|
Model
|
|
WD10G240
|
|
Rated power
|
KW
|
178
|
|
r.p.m
|
|
2200
|
Note: the above data are subject to change without prior notice.
