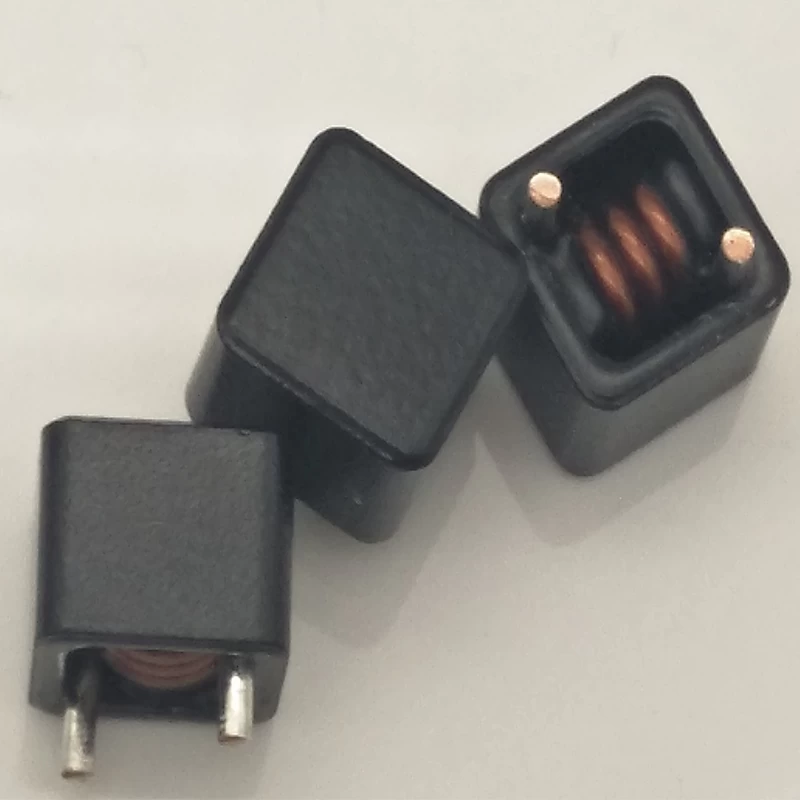

High current inductors with magnetic shield structure, have strong electromagnetic interference (EMI) resistance and vertical design, solid structure, low magnetic loss, low impedance, small parasitic capacitance. Our DIP type high current inductor has very low DC resistance, mainly designed for switching power suppliers, DC-DC converters, high frequency SMP, EMI filters, computers, digital cameral and other consumer electronic products. DIP large current inductor materials we used are all lead-free products and RoHS compliant. MCTLA series high current DIP type inductor are our new design inductors, we also accept custom design.
Quick Details
|
Part No: MCTLA Series High Current DIP Type Inductor
|
|
Brand name: MCT
|
|
Inductance at IDC is a typical value for the component taken at IDC
|
|
Custom made: Available
|
|
L0 test condition: 100KHz/1.0Vrms, 0ADC
|
|
Logo: Can be customized
|
|
Testing ambient temperature is referenced to 25°C
|
|
Packing: Carton,can custom
|
|
Operating temperature range: -40°C~+120°C
|
|
MOQ: Any quantity
|
|
Certification: ISO9001,ROHS,CE
|
|
OEM: Available
|
|
Lead time: 25 days after payment
|
|
Shipping: Air, Ship, etc
|
Part Information
Product Name: High Current DIP Type Inductor High Frequency Power Inductor
Applications: Switching power supplies, High frequency SMPS, EMI filters, High current DC/DC converters, Home appliance, Automotive electronics.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray(Available in tape and reel package, three-layer carton packaging, is helpful for protection of high current inductor product performance. )
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Advantages:Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected and UL certified. We accept custom made and design service.
Product Details

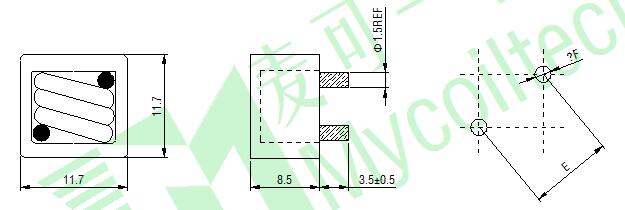

Mechanical dimension: Unit: mm
Electrical Characteristics:
|
MCT PN
|
L(0A)
uH±20%
|
DCR（mΩ）
max
|
L（rms）
uH±20%
|
Irms
A
|
Isat
A
|
E
|
F
|
|
MCTLAR47M
|
0.47
|
0.9
|
0.45
|
32
|
50
|
8.7±1
|
1.5±0.1
|
|
MCTLAR60M
|
0.60
|
0.9
|
0.54
|
28
|
45
|
8.7±1
|
1.5±0.1
|
|
MCTLAR80M
|
0.80
|
1.5
|
0.72
|
33
|
40
|
8.4±1
|
1.3±0.1
|
|
MCTLA1R0M
|
1.00
|
1.5
|
0.92
|
33
|
40
|
8.4±1
|
1.3±0.1
|
Note:
1.L0 test condition:100KHz/1.0Vrms，0ADC
2.Inductance at IDC is a typical value for the component taken at IDC
3. Heating current will cause an approximate ΔT of 40°C without core loss
4. Saturation current that will cause L0 approximate 20% rolloff with 25°C ambient temperature
5. Testing ambient temperature is referenced to 25°C
6.Operating temperature range -40°C~+120°C
