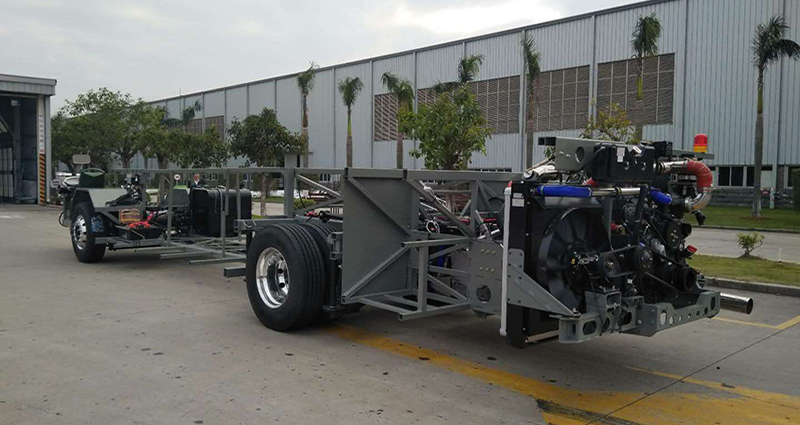

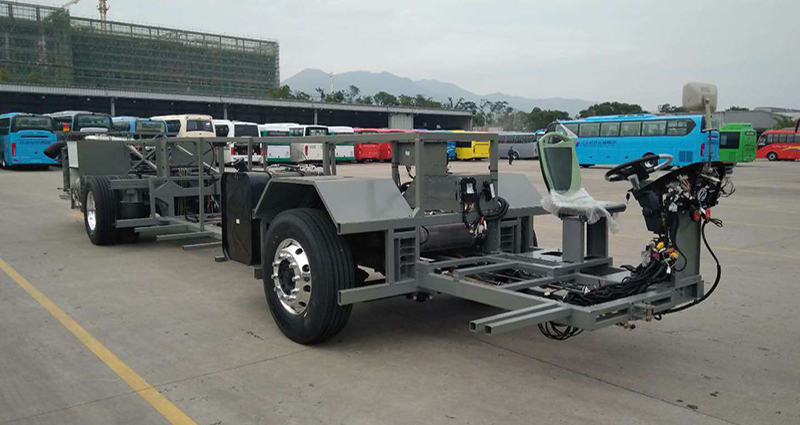

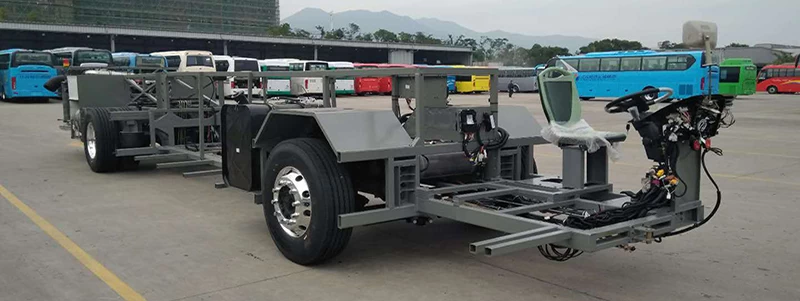

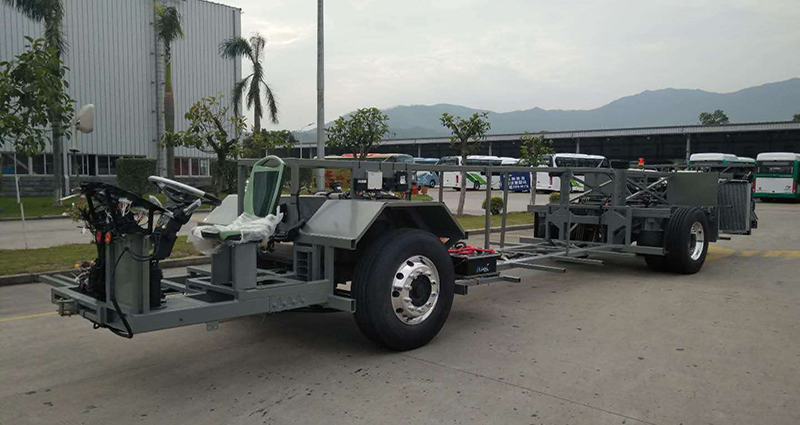

12 meter tour bus chassis high decker
|
|
Dimension（mm）
|
11810*2380
|
|
wheel base（mm）
|
6060
|
|
Max speed(km/h)
|
110
|
|
Total weight(kg)
|
6060
|
|
Chassis structure
|
Monocoque
|
|
Max gradability(%)
|
≥20
|
|
Engine
|
Yuchai YC6L350-40 350HP, EURO 4
|
|
Gearbox
|
Qijiang S6-160
|
|
Retarder
|
TERCA
|
|
Clutch
|
SACHS 430
|
|
Front axle
|
Dongfeng Dana ,disc brake, ABS
|
|
Rear axle
|
Dongfeng Dana , drum brake, manual slack adjuster, ABS
|
|
Steering box
|
Chinese brand
|
|
Brake system
|
double way brake system,with VIE valves
|
|
intercooler
|
mechanical fan
|
|
fuel tank
|
400L
|
|
Adblue tank
|
50 L
|
|
inlet/exhaust
|
big flow air cleaner, domestic silence
|
|
Suspension
|
air suspension
|
|
Tire
|
Tubeless radial tyre, Giti, 295/80R/22.5 7 PCS
|
Note: we are able to customize different chassis length with different specification for citybus and coach.
Chassis length can be 6m to 12m, low entry and low floor type.
Engine can be Cummins, Yuchai, Weichai and other brands.
for other specification, welcome to enquiry.
