Hemispheric UV LED Focusing Lens is with flat window LED matching 53°lens and 48°lens. 53°48°UV LED quartz glass lens fits 5050 6060 7070 6868 flat window lights with lens.
Applications of Hemispherical UV LED Condenser Lens :

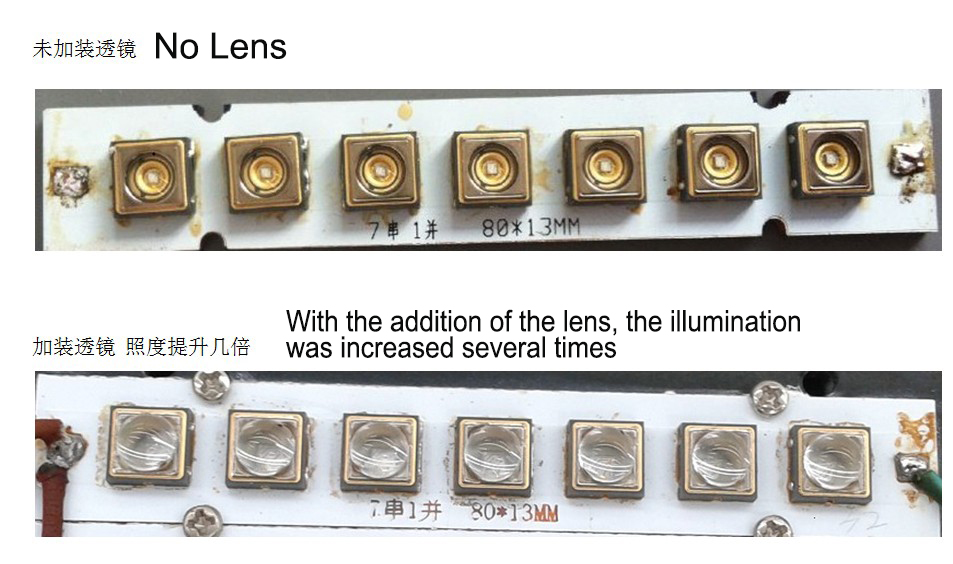

LED can be packaged with quartz glass lens to improve LED illumination, and no loss of UV penetration, quartz glass transmittance up to 99.9%. compared with the traditional silica lens, quartz glass is not easy to yellow and fall off, so the LED performance is more stable, longer service life.
Specifications for 48° 53° Quartz Glass UV LED Focus Lens :
|
Wavelength
|
240-3000nm
|
Cross the center of the lens and the center line of the outer circle : + - 0.015
|
|
Material
|
JDS-2 quartz
|
Aperture <5 local aperture 0.5
|
|
Focal length error
|
+ - 2%@365nm
|
Surface
|
Grade IV
|
|
Outside diameter tolerance
|
+ - 0.05
|
Grade of material
|
Second level
|
|
Thickness tolerance
|
+ - 0.05
|
Amount of light passing through a lens : >90%
|
|
Coating
|
None
|
|
|
|
|
Radius of curvature
|
Focal distance
|
Degree
|
Center Thickness of the lens
|

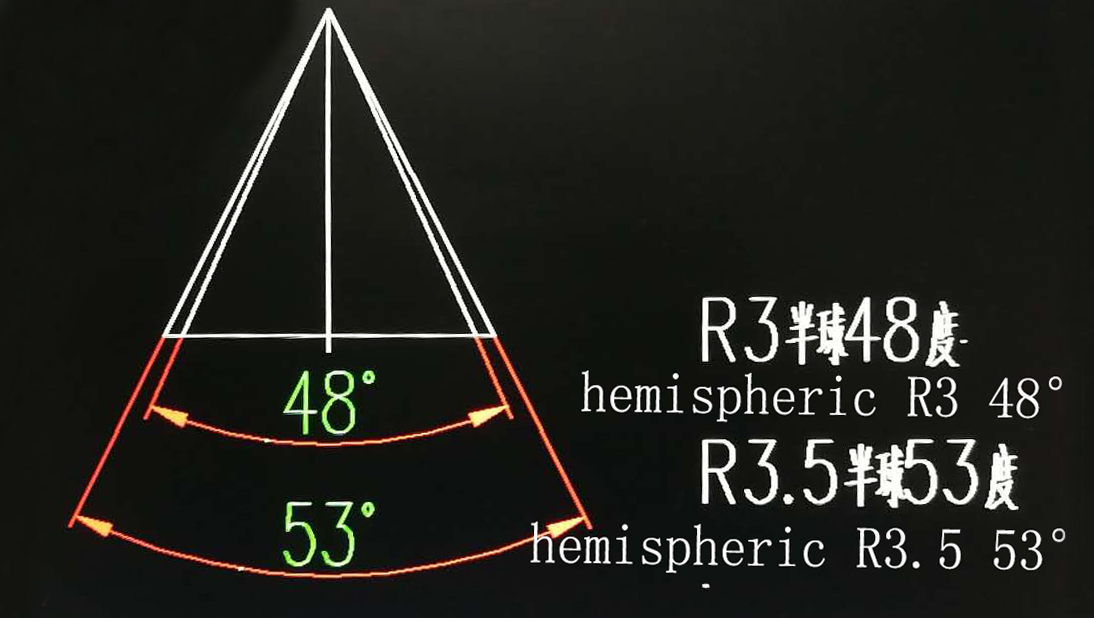

Angle of visibility
|
|

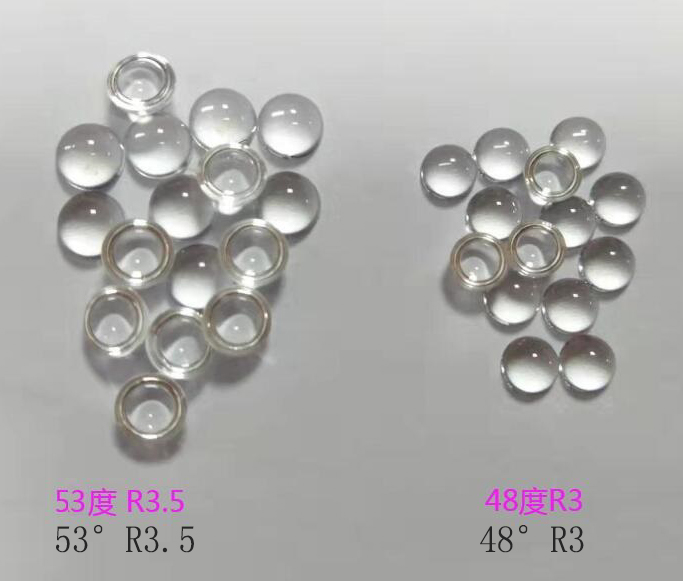

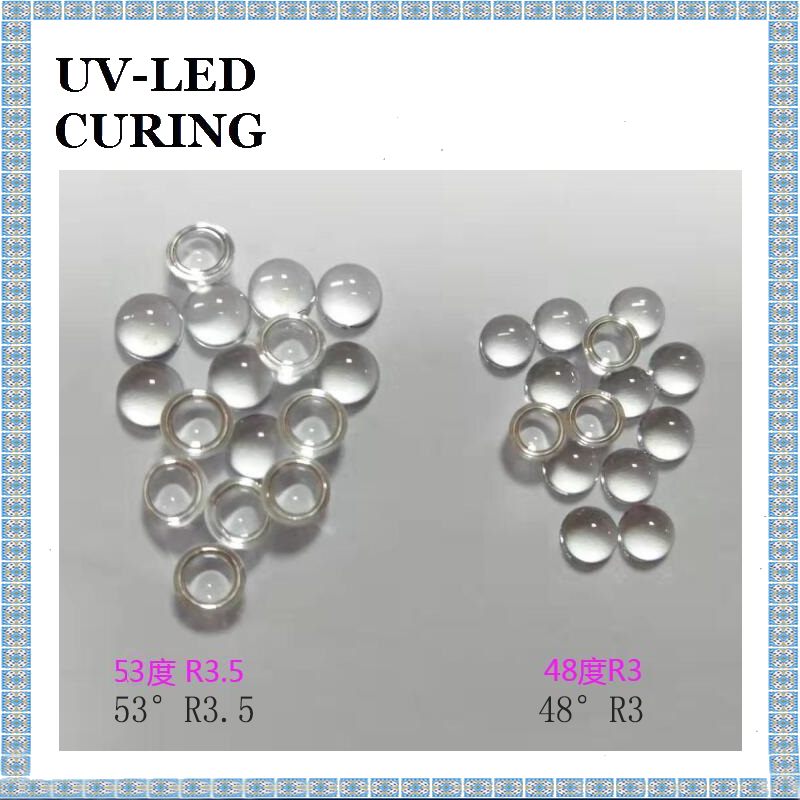

R3
|
6.54
|
48°
|
3 + - 0.05
|
48°
|
|
R3.5
|
7.63
|
52°
|
3.5 + - 0.05
|
53°
|

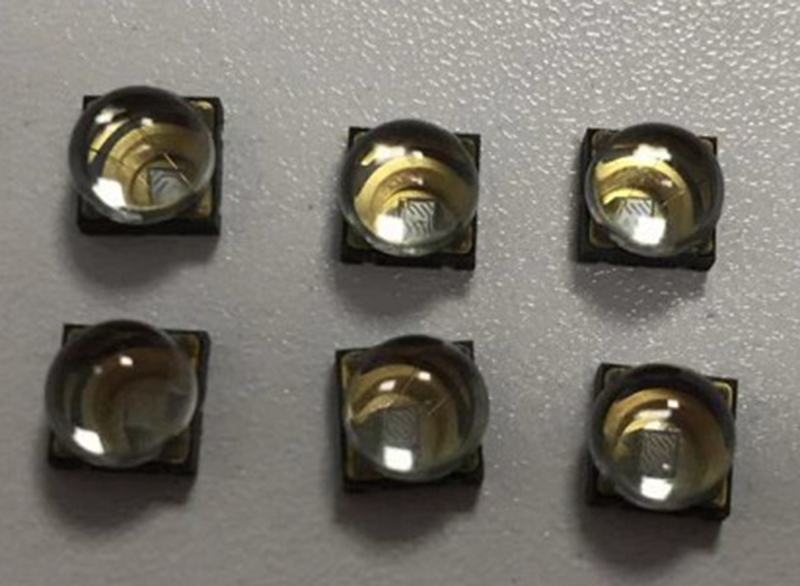

The case of Quartz Glass Material Focused UV LED Hemispherical Lens :
