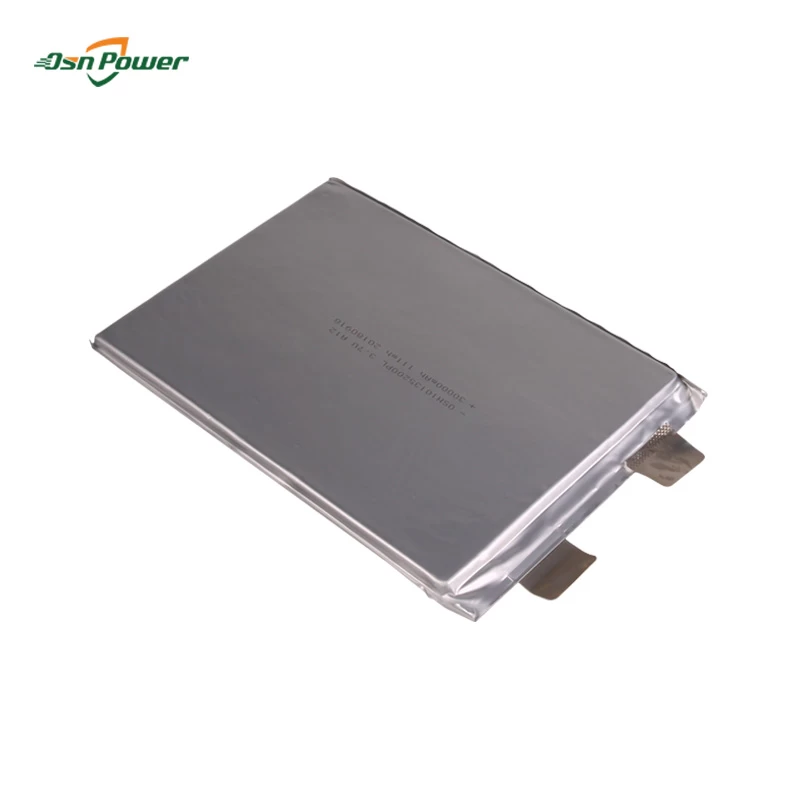

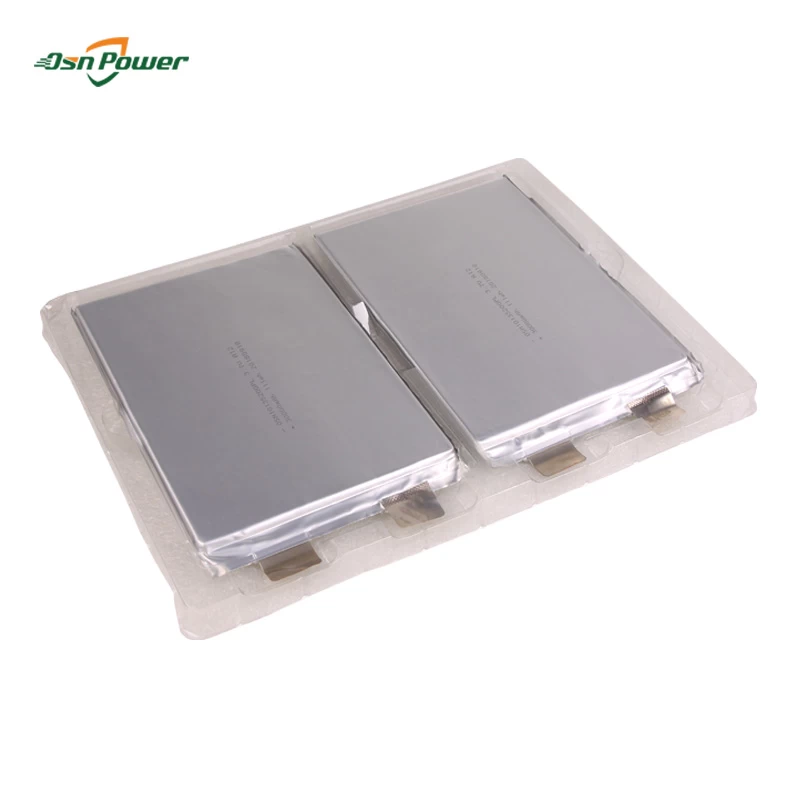

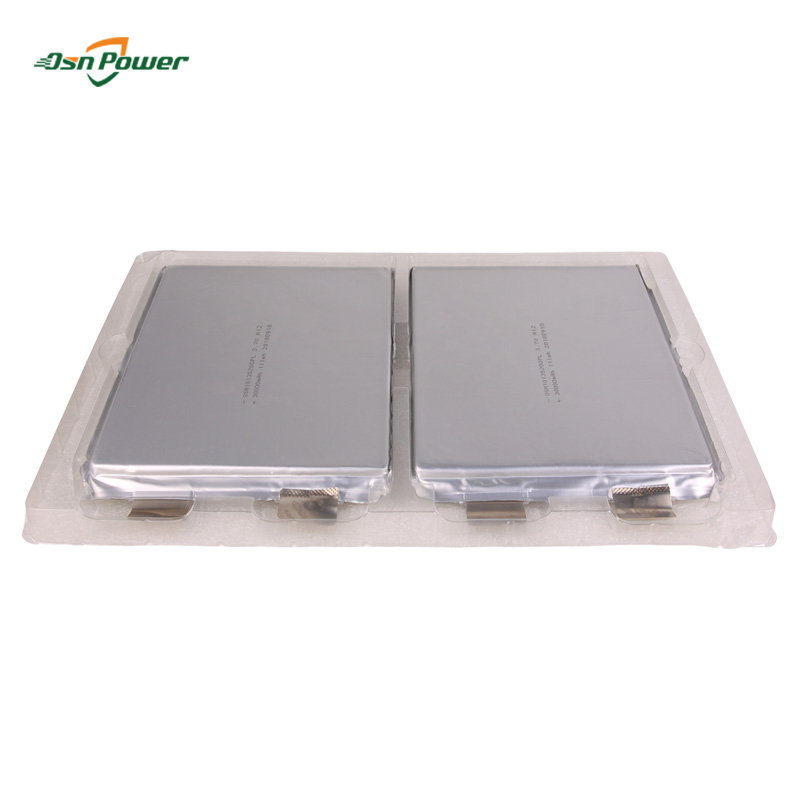

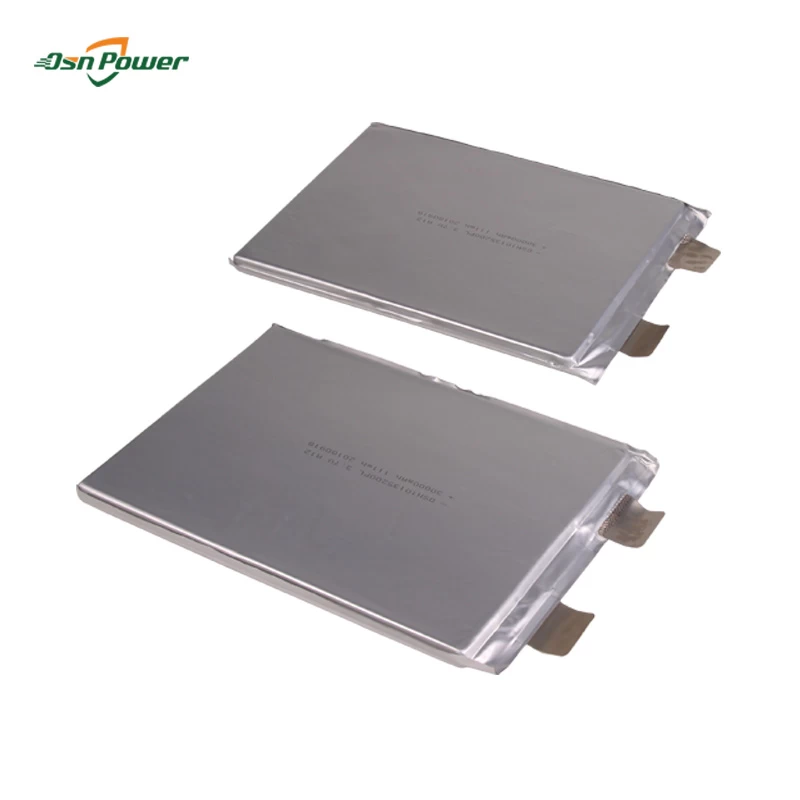

High Discharge Rate 5C Customized Pouch 3.7V NMC Li-ion 30AH cells

High energy density, quick charge, space optimization, long life span.

Mainly design for EV, HEV, automotive, ESS.

Product Name

Highlights

High energy density
Fast charging and long life span
Possible to form modules that are suitable for various pack structures
NCM battery can work in wide temperature from -20 to +75°C
High safety:Nano-ceramic coating reinforces the durability and heat resistance of the batteries

Technical Parameters

No.	Items	Specifications
1	Nominal Voltage	3.7V
2	Nominal Capacity	30Ah
3	Standard Charge Current	0.2C-0.5C
4	Max. Charge Current	1C
5	Continuous Discharge current	5C
6	Peak Discharge Current	20C
7	Charge Cut-off Voltage	4.2V
8	Discharge Cut-off Voltage	3V
9	Inner Resistance (Impedance)	≤2mΩ
10	Weight	600g
11	Dimensions	Length:216mm Width:135 mm Thickness: 10mm
12	Operating Temperature	Charging: 0°C ~ 45°C Discharging: -20°C ~ 60°C (The cell surface temperature cannot exceed 70°C)
13	Storage Temperature/Humidity	Temperature: -10°C ~ +35°C Humidity:65%±20%RH (optimal store temperature of 23 ± 5°C for long term storage)
14	Cycle Life	≥1000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard)

Come us at service@osnpower.com to get catalog and quotations.
