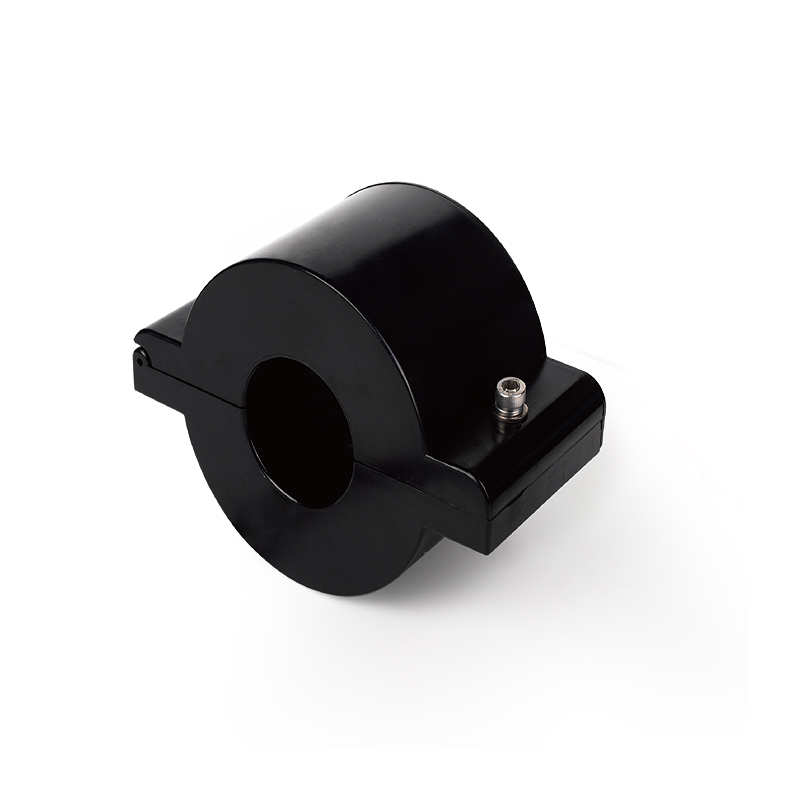

High Effect Current Transformer Extracting Electricity Energy Harvesting Energy Current Transformer

Working principle:

The harvesting energy current transformer, referred to as power-taking CT, uses the principle of electromagnetic induction to generate electrical energy by mutual inductance of the primary current of the conductor through the magnetic ring coil.

Feature:

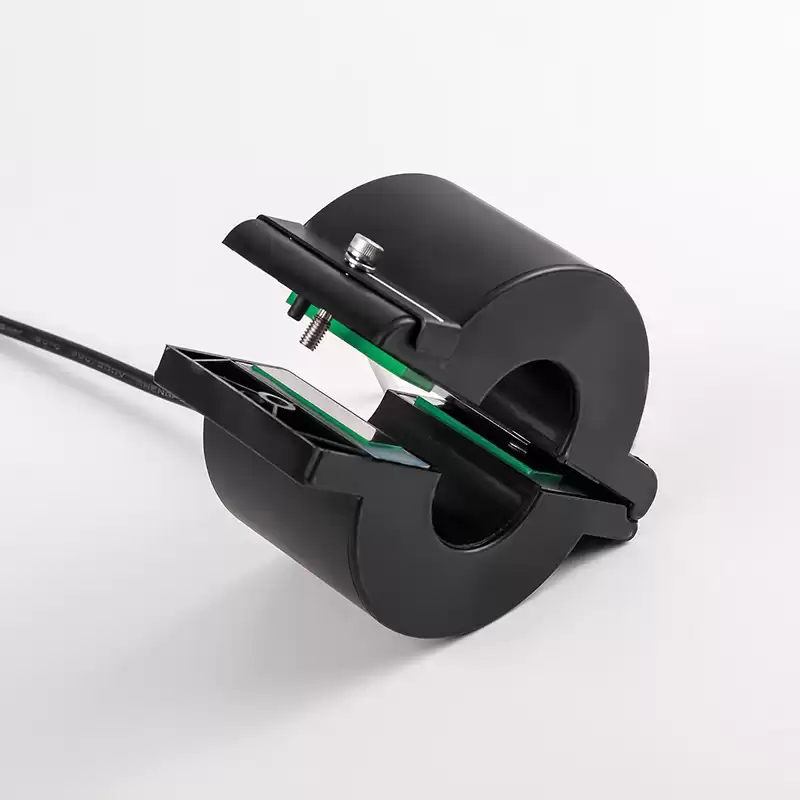

1. The harvesting energy CT is of open structure, easy to install and operate.

2. The inner diameter of the transformer can be selected according to the diameter of the primary high voltage line.

3. Transformers of different types and sizes can be matched according to the current of the primary side high voltage line.

4. Energy transformers and induction power modules are used.

5. Rational planning of load distribution according to the conventional operating values and power curves of the conductor currents.

6. Due to the magnetic circuit, there will be a slight ticking sound when the energy transformer is working, which is a normal phenomenon.

Advantages:

Complete talent team: including magneto-electrical engineers, structural engineers, electrical engineers, etc.

There are many practical engineering cases and rich experience. We have accumulated a lot of engineering application experience in electric power, high-speed rail, smart mines, civil airports, energy consumption monitoring, metallurgy, docks, etc.

Application：

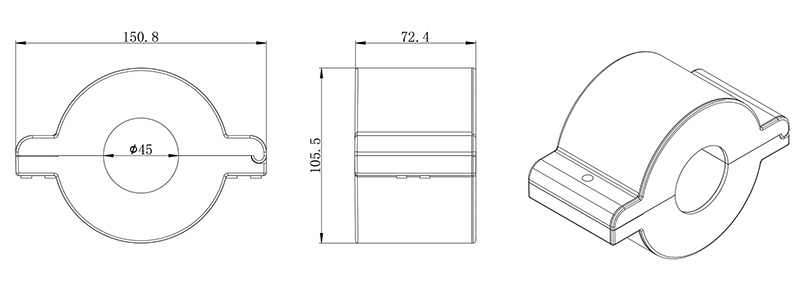

Dimension drawing：

As an leading manufacturer of Harvesting Energy Current Transformer products, Hemei Electronics offers you a full range of power extraction solutions, if you have any questions please leave a message and we will reply to your message soon.
