100W LED Solar Street Light
This product ( MS-ESST1103A-100W ) is grade A+ solar cell Solar street light and each cell has a complete IV curve to convesion efficiency is more than 21.3%.
The product are diamond face designed solar street light reflection process, which is super high efficiency reflection light source, effictively enhance the brightness of the illumination.
So, it is excellent efficiency reflection solar light source.
Morstar is a trusted,global company with a keen insight into the market. We konw lighting and provide products with excellent quality, reliability and functionality.

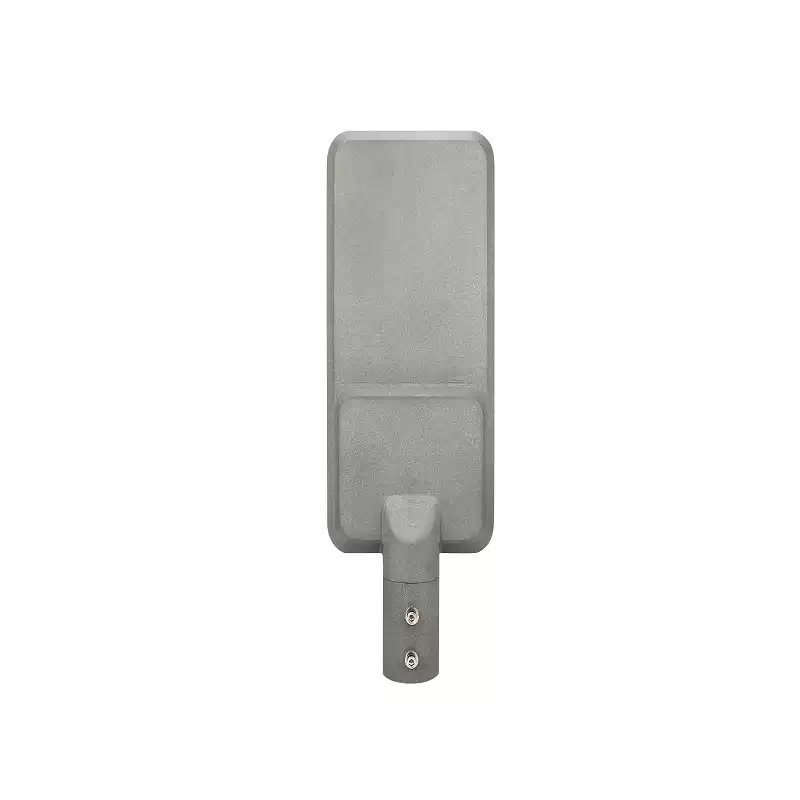

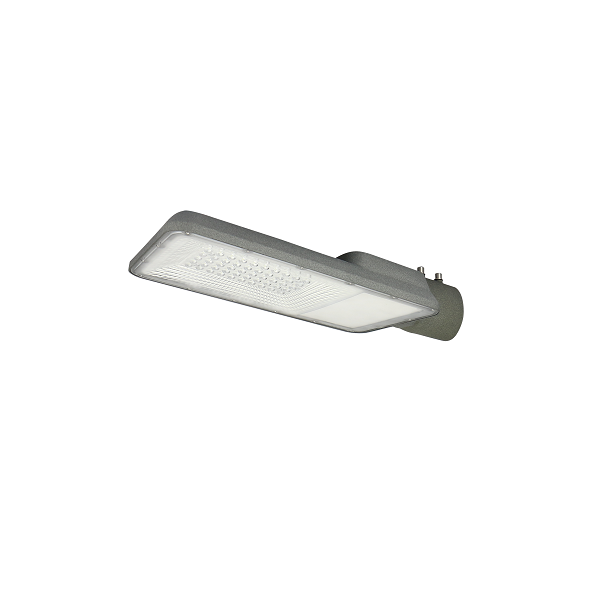

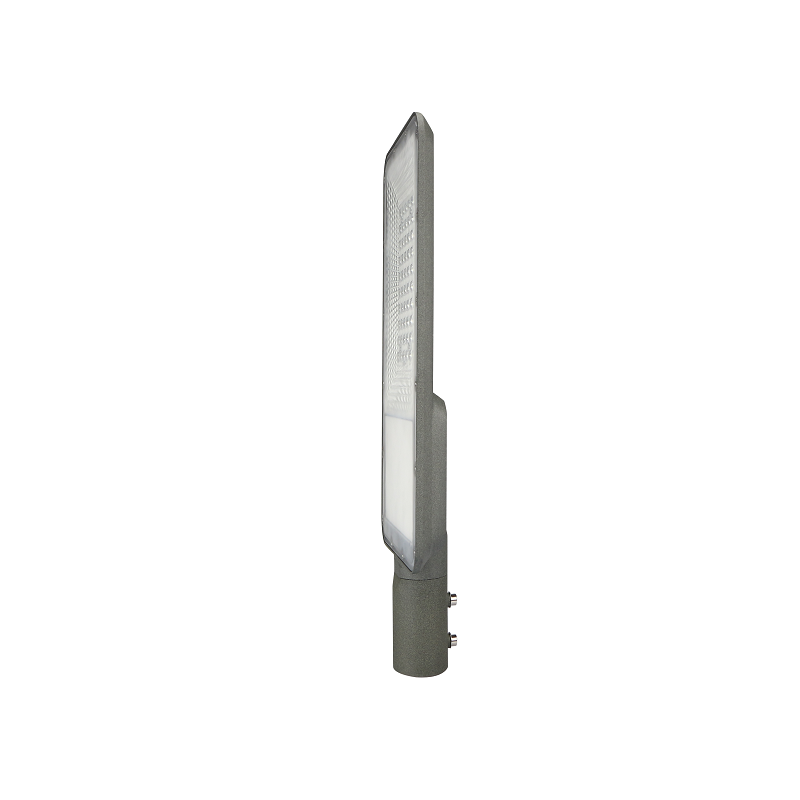

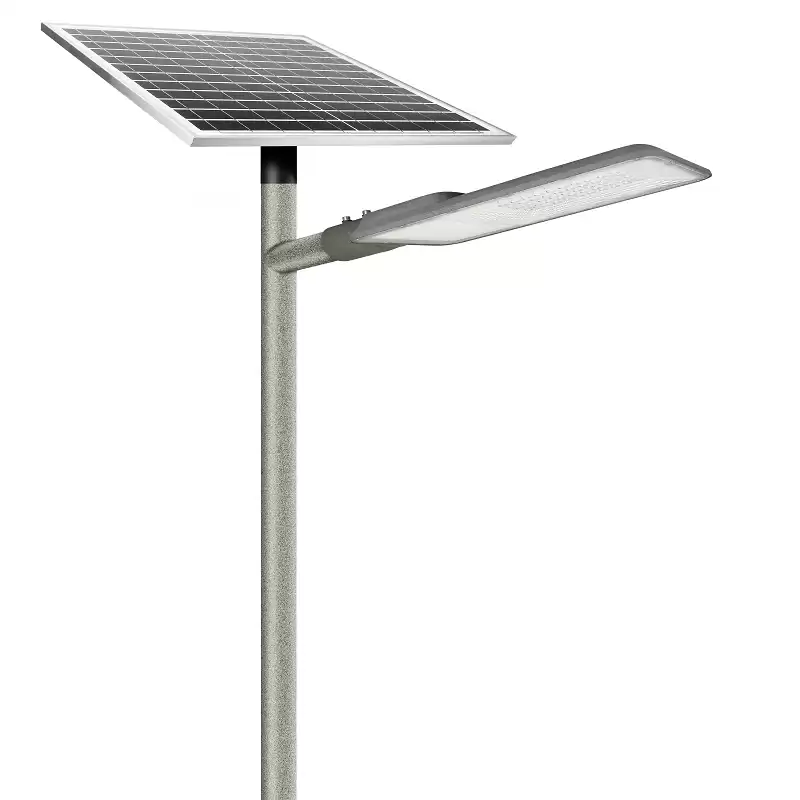

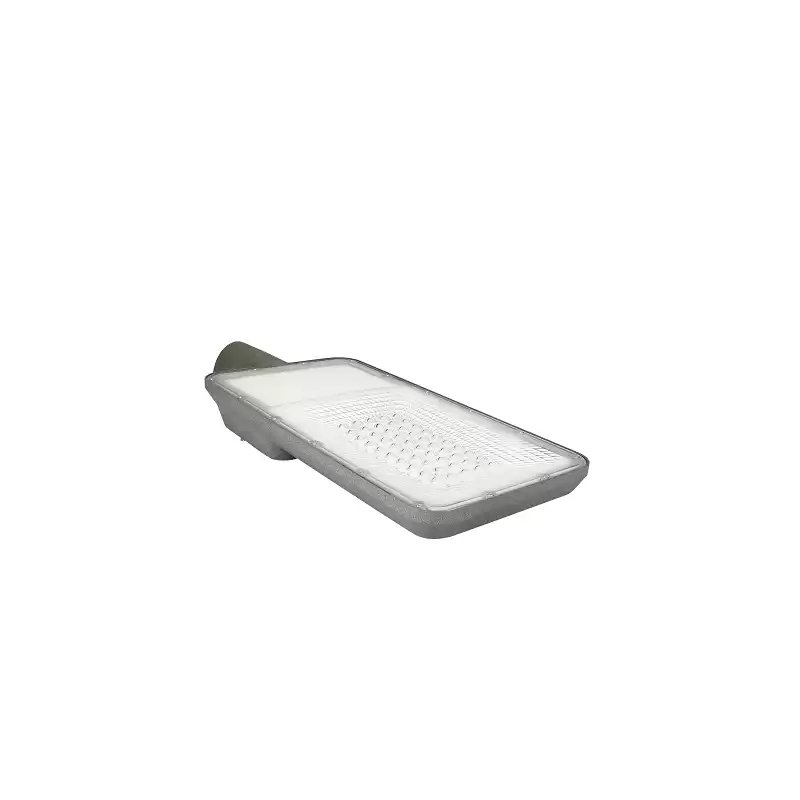

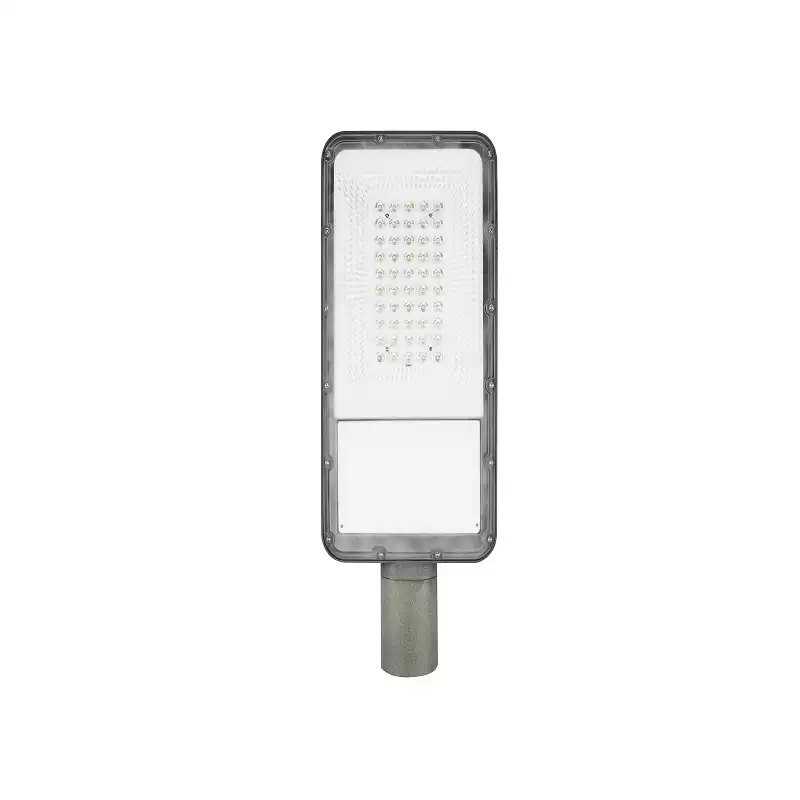

PRODUCT APPEARANCE
PRODUCT SPECIFICATION
|
Product No.
|
MS-ESST1101A-30W
|
MS-ESST1102A-60W
|
MS-ESST1103A-100W
|
|
Power
|
30W
|
60W
|
100W
|
Total lumens:
|
980lm(±8%)
|
1800lm(±8%)
|
2600lm(±8%)
|
QTY(PCS)
|
2PCS＊（32650）
|
4PCS＊（32650）
|
6PCS＊（32650）
|
Capacity
|
3.2V / 10000mA
|
3.2V / 20000mA
|
3.2V / 30000mA
|
|
Battery
|
10000mAh
|
30000mAh
|
40000mAh
|
Color Temp:
|
3000k/4000k/6000k
|
3000k/4000k/6000k
|
3000k/4000k/6000k
|
Height of installation
|
4-6M
|
4-6M
|
6-8M
|
CRI
|
Ra>80
|
Ra>80
|
Ra>80
|
Working Temperature:
|
-20℃ - 50℃
|
-20℃ - 50℃
|
-20℃ - 50℃
|
Charge & discharge:
|
About 1500 times
|
About 1500 times
|
About 1500 times
|
Lamp Viewing Angle
|
120°
|
120°
|
120°
|
Efficacy: 170LM／W
LED Chip: Bridge lux

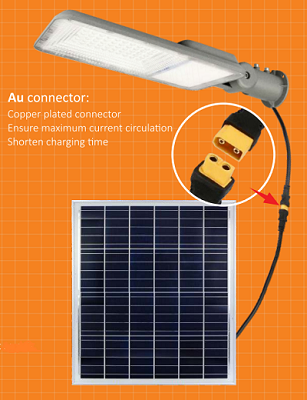

Cable:H05RN-F2G 1.0mm²－100cm with gold painting
Durability: lighting 12 hours per day; back up 7 rainy day
Housing Material: ADC#12 Aluminium
Charging Time: 5-8Hours
Solar Panel: 6V 12W
Life span: 50,000 hrs
Certificate: CE / DC/ IP65
Warranty: 5 Years for light, 3 year for battery.
The sunlight on the pannel that affects the charging is subject to the local weather,installation place and direction.
PC outdoor optical lens, high light transmittance
Solar street light application:
Urban roads, Residential Roads, Industrial parks and Pedestrian streets.
PACKAGE INFORMATION
|
Product No.
|
MS-ESST1101A-30W
|
MS-ESST1102A-60W
|
MS-ESST1103A-100W
|
|
Size (mm)
|
525*175*54
|
546*200*64
|
579*212*64
|
Solar panel size：
|
350x280x17mm
|
350x350x17mm
|
350x480x17mm
|
APPLICATION
FAQ：
1. What`s the warranty of the lamp?
- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American.And we have LED lighting distribution warehouses in California，Texas and Michigan
6. Can you design new model?
- Yes, we can open new mould according to your drawings and produce.
