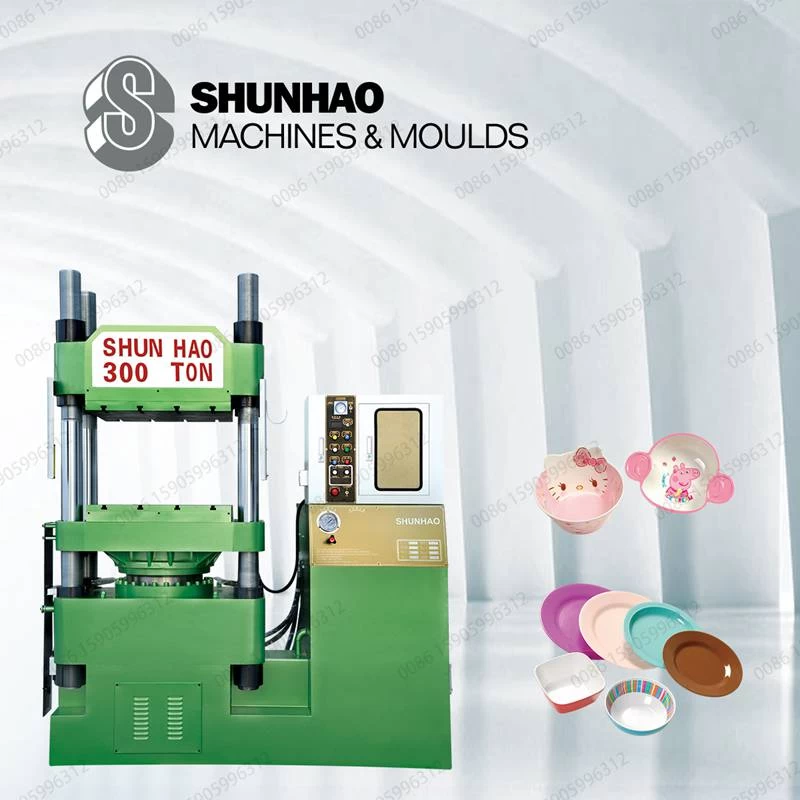

300 Tons Automatic Single Color Melamine Tableware Moulding Machine
Machine Features
-
Used for single color melamine products
-
Suitable for melamine and urea crockery
-
Suitable for the products which have normal height, like plates, bowls, trays
Technical Parameters
|
No.
|
Content
|
DTB 300 A
|
|
1
|
Main Cylinder Nominal Pressure
|
300Tons
|
|
2
|
Maximum Working Pressure
|
210kg/cm2
|
|
3
|
Main Cylinder Working Stroke
|
600mm
|
|
4
|
Adjustable Table Distance
|
500~1060mm
|
|
5
|
Heating Plate Size
|
760*720mm
|
|
6
|
Machine Size(length * width * height)
|
2.25*1.45*2.96 M
|
|
7
|
Machine Weight
|
6200KGS
|
■ PS: Specifications subject to change without
notice.
Daily Maintenance
1. Use a dry cloth to gently wipe machine ministries and electrical control box.
2. Clean up the trivial and dust from the heating plate.
3. check and solve when abnormal sounds happen during operation
4. Clean all around the machine.
5. Switch off power and release the press of oil gauge as ZERO.

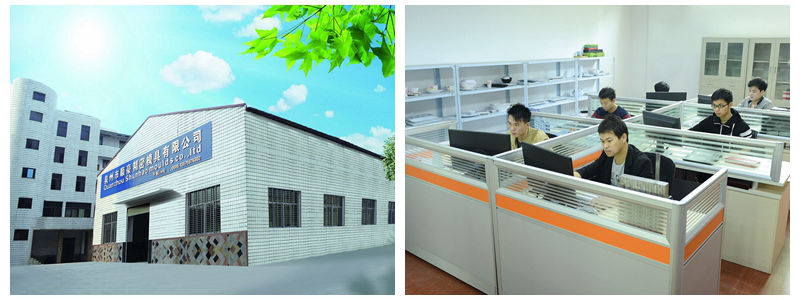

Factory Tour
-
Shunhao Factory Capacity: 30-40 sets per month
-
Professional Engineers team: Taiwan engineer leader with experienced staff
-
Top Brand Machine parts: famous brands or well-tested using parts

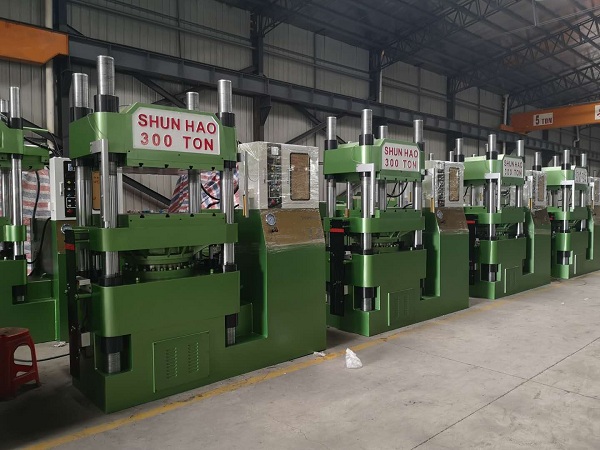

Shunhao Automatic Melamine Compression Machines, 300 tons newly designed system is a very popular model, demand from clients is around 60 sets per year, and it is increasing year by year.
