High efficiency 89% 120W SMPS beauty products power supply 24V 5A

100-240VAC small power supply 120W for beauty products SMPS 24V 5A from China factory.



Beauty products DC24V 5A power supply

Description:

KPS120-24 beauty products power supply is 100-240vac input voltage and DC24V 5A output power supply with small size, high quanlity,it is used in the beauty products,electronic LED stage lights,robot and other industrial equipments.


Features:

1, high efficiency DC24V 5A power supply;
2, Wide range of AC input voltage,DC24V single output;
3, Over load, short circuit protection,over-temperature protection;

4, 120W 24V small size power supply with high efficiency.


Parameter
            Item No. KPS120-12 KPS120-24 KPS120-36 KPS120-48
Output

Output Voltage

+12V +24V +36V +48V

Rated Current

10A 5A 3.3A 2.5A

Current Range

0-10A 0-5A 0-3.33A 0-2.5A

Rated Power

120W 120W 120W 120W

Ripple & Noise

120mVp-p 240mVp-p
360mVp-p 480mVp-p

Adjustable Output Range

±5%

Output Accuracy

±1%

Line Regulation

±0.5%

Load Regulation

±0.5%

Set up,Rise,Keep up time

800ms, 30ms, 16ms/115VAC, 300ms,30ms,50ms/230VAC

Input

Input Voltage Range

90-264V AC

Input Current

2.4A@115V AC,1.2A@230VAC

Input Frequency

47-63Hz

Power Factor >0.5@110VAC; >0.5@220VAC

Efficiency @230Vac

88% 89% 90% 90%

Inrush Current

Cold start 10A@115V,20A@230V

Leakage Current

<0.5mA@240V

Protection

Over Load Protection

105~200% Hiccup automatic protection

Short Circuit Protection

---

Over Temp., protection >105 degree,receovers automatically after the temp. goes down.

Environment


Working Temp.,Humidity

-20~60℃,10~90% RH,No condensation

Storage Temp.,Humidity

-20~85℃,10~95% RH

Temp.,Drift

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min /1cycle, PERIOD FOR 60min EACH AXES

Safety&EMC Standards


Safety Standards

GB4943,EN60950

Withstand Voltage

I/P-O/P:1.8KV; I/P-FG:1.8KV;O/P-FG:0.5KV DC 1min

Insulation Resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

EMC Standards

EN55032 CLASS B

Others Dimension

101.5*50.5*27mm(L*W*H)

Weight 0.3kg
Notes

1.All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;

2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;

3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;

4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;

5. Load regulation: the measured output load from 0 to 100% load change measured.

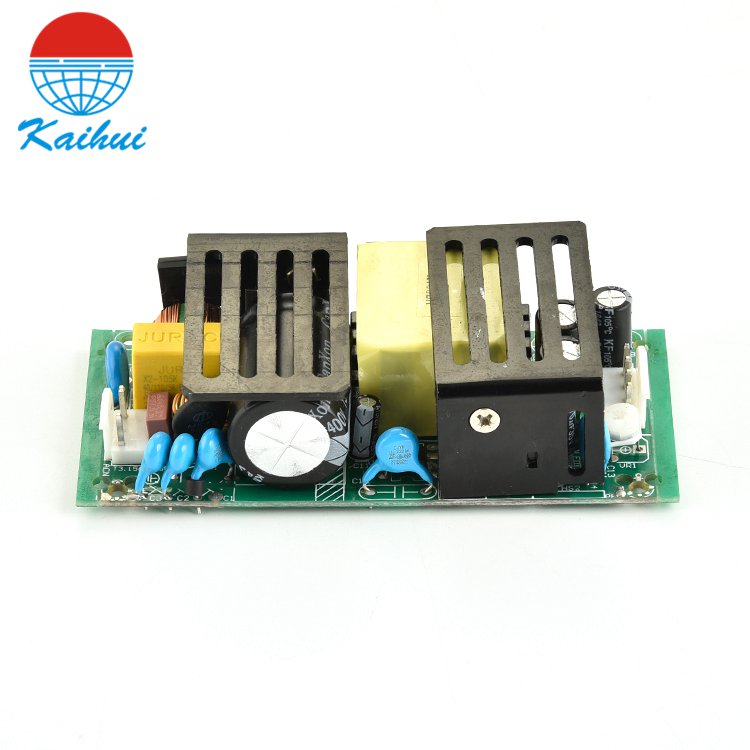

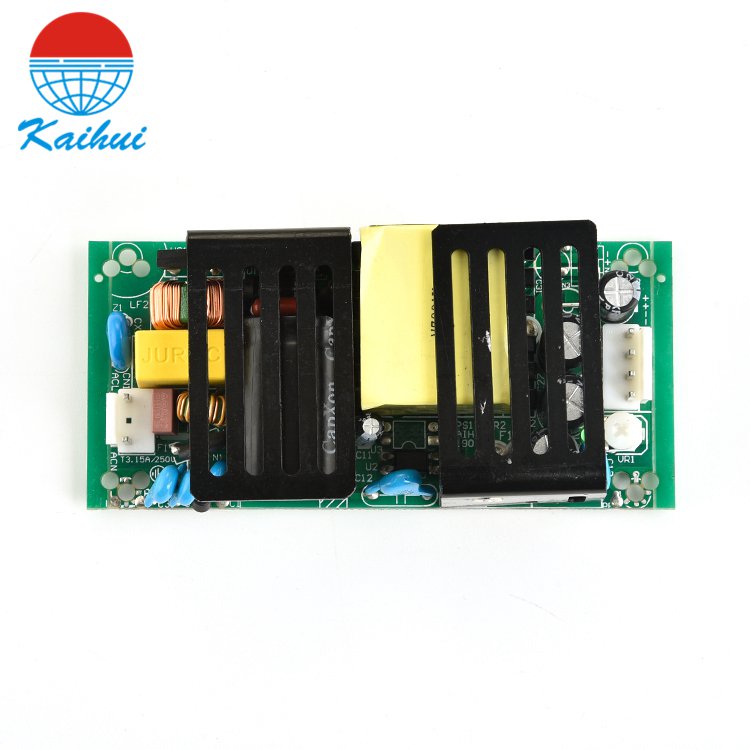

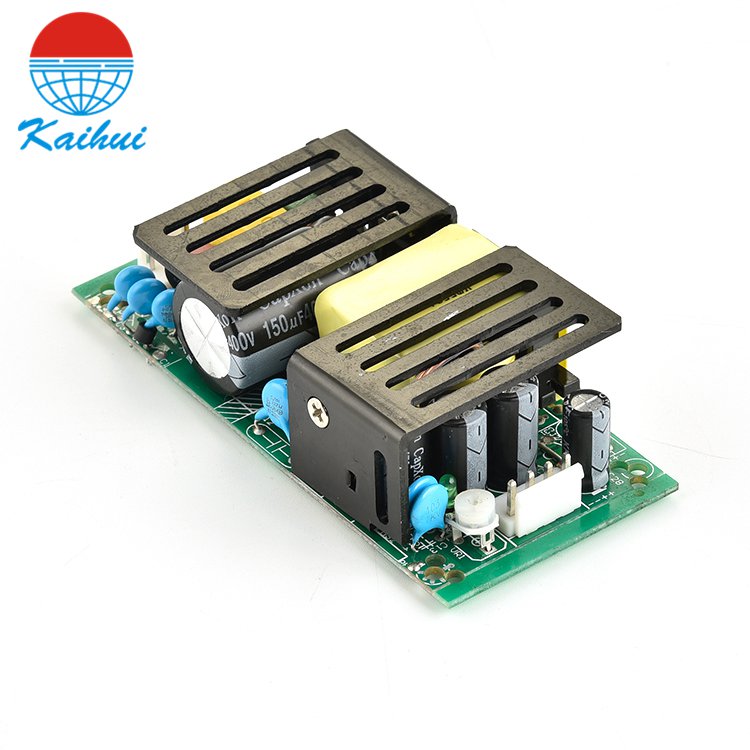

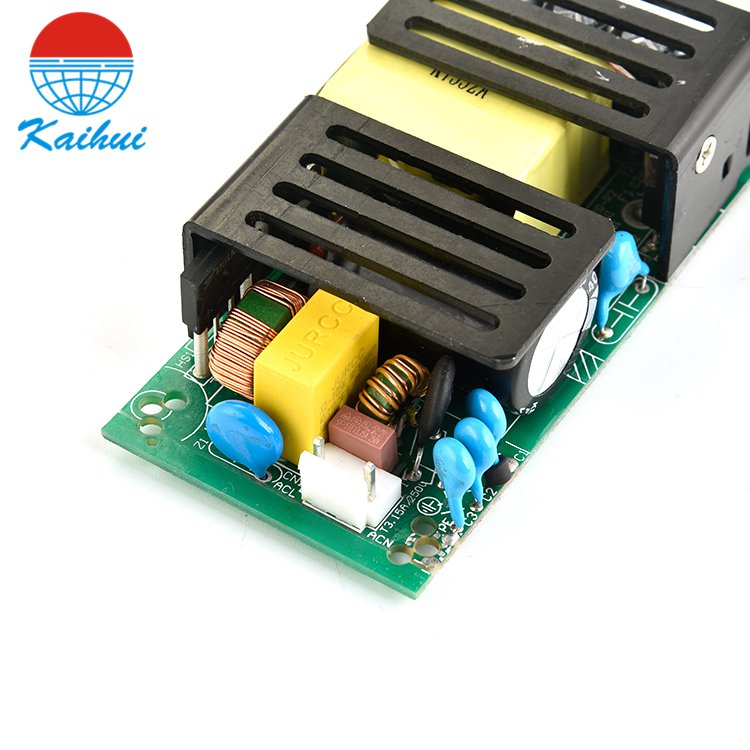

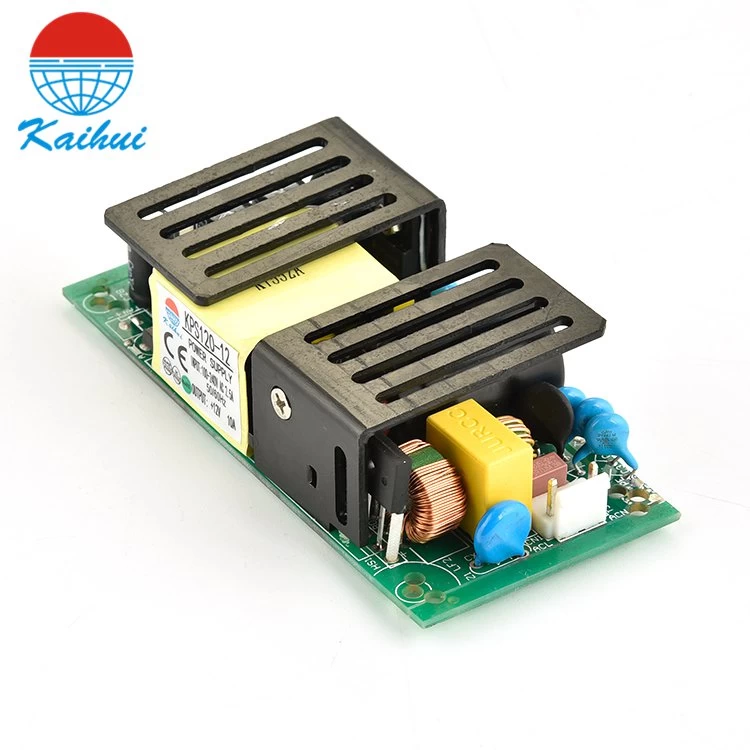

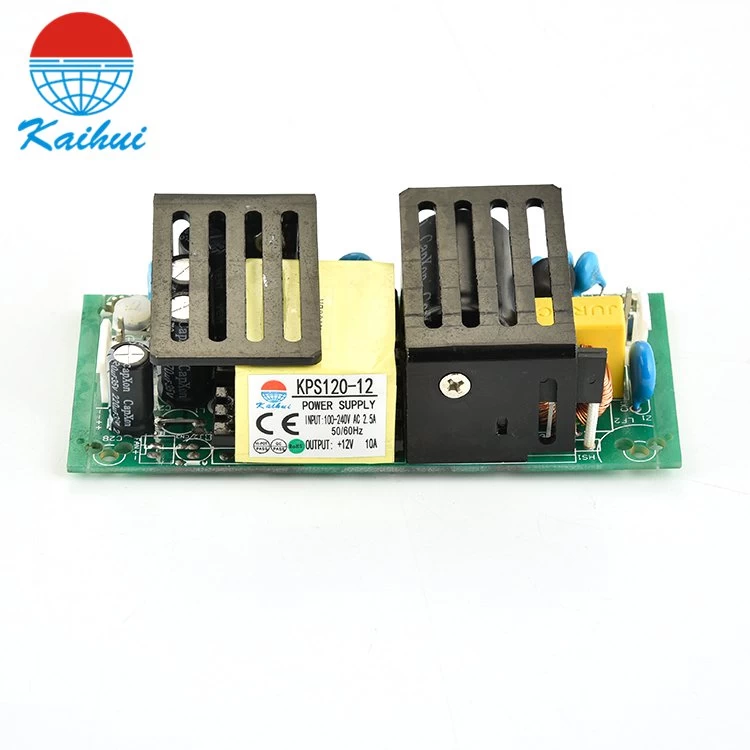

Product picture:


12V 10A power supply

CE certificated power supply 36V

CE certificated power supply 200W

CE Switching power supply 200W

switching power supply 200W 36V

switching pwoer supply 200W for game machine application

CB Switching power supply 200W
