Dual output 300W 58V 24V switching power supply
Description:
K18N-UP300D series dual output series 300W 58V 24v open frame item switching power supply is suitable for use in telecommunications, networking, test and measurement, IT applications, general electronics, low profile systems, automation, POS, motor based machinery and non patient contact medical equipment.
Features:
1, 300W high efficiency 58V 24V dual output switching power supply;
2, Built-in active PFC function power supply;
3, Wide range of AC input voltage, 58V/4.5A, 24V/2A dual output power supply;
4, It have short circuit, over load, over voltage,over hearting protection;
5, 300W 58V 24V power supply used in LED driver,stage light etc.
|
Parameter
|
|
Item No.
|
K18-UP300D58+24
|
K18-UP300D65+24
|
|
|
CH1
|
CH2
|
CH1
|
CH2
|
|
Output
|
Output Voltage
|
+58V
|
+24V
|
+65V
|
+24V
|
|
Rated Current
|
4.5A
|
2A
|
4.2A
|
1A
|
|
Current Range
|
0.1-4.5A
|
0.1-2A
|
0.1-4.2A
|
0.1-2A
|
|
Rated power
|
309W
|
297W
|
|
Ripple
|
300mV
|
150mV
|
300mV
|
150mV
|
|
Adjustable output range
|
CH1：±10%
|
CH1：±10%
|
|
Output Accuracy
|
±1%
|
±8%
|
±1%
|
±8%
|
|
Line Regulation
|
±0.5%
|
±2%
|
±0.5%
|
±2%
|
|
Load Regulation
|
±0.5%
|
±6%
|
±0.5%
|
±6%
|
|
Set up,Rise,Keep up time
|
500ms,50ms,20ms
|
|
Input
|
Input Voltage range
|
90-264V AC
|
|
Input current
|
1.7A @ 220V AC
|
|
Input frequency
|
47-63 Hz
|
|
Efficiency
|
>87% @ 220V AC
|
|
Power factory
|
>0.99@110V;>0.95@220V
|
|
Inrush current
|
Cold start15A/115V，30A/230V
|
|
Leakage Current
|
<0.35mA@240V AC
|
|
Protection
|
Over load
|
110~200%,Hiccup,automatic recovery
|
|
Output overvoltage
|
CH1:64-70V
|
CH1:75~85V
|
|
Over Temp.
|
Cover temp.>95℃，output closed,automatic recovery
|
|
Other Function
|
|
|
|
Environment
|
Working Temp.,Humidity
|
-20~50℃，10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃，10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC Standard
|
Safety standards
|
GB4943,EN60950-1
|
|
Pressure
|
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC standards
|
MEET EN55022 CLASS B，EN61000-3-2
|
|
Others
|
Dimension
|
127*82*45mm
|
|
Weight
|
0.6Kg
|
|
Note
|
1. All parameters 220V AC input, rated load, ambient temperature 25℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured, other load fixed at 60% of the load;
6.And natural ventilation can only use 70% of the maximum load; 25cfm forced air cooling, can be used 100% load.
|

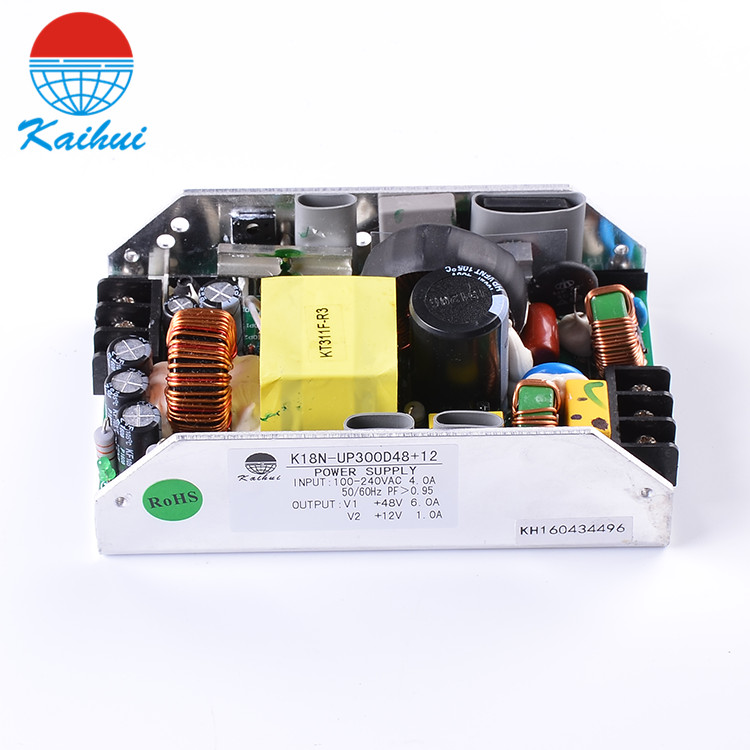

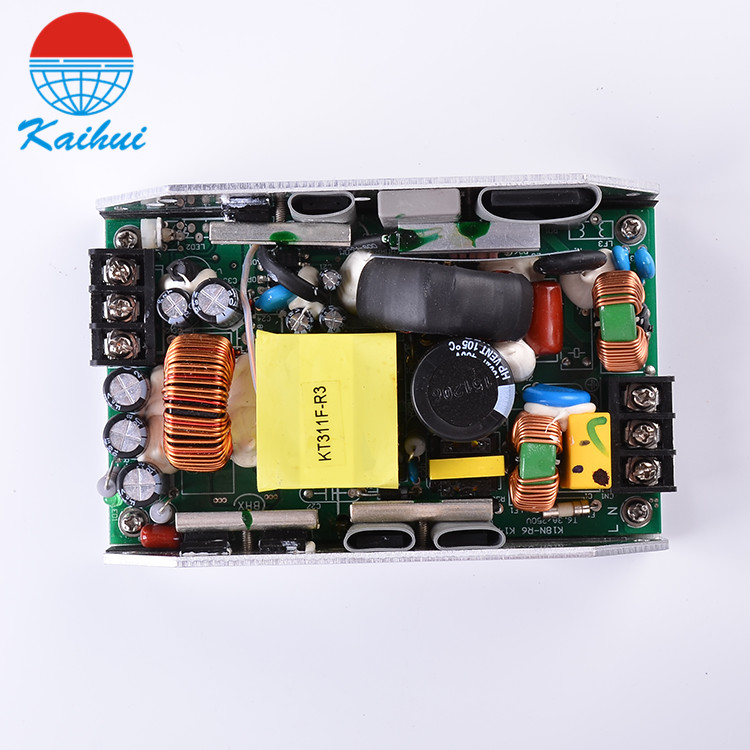

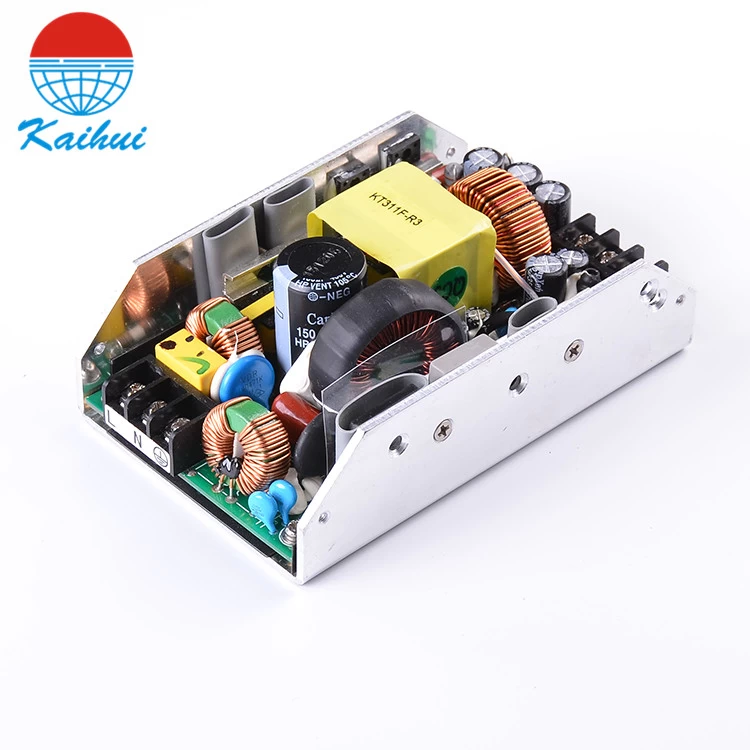

Product picture:
