Single output 800W 48V switching power supply open frame type
Description:
K43-UP800S single output series 800W 48V 16.7A open frame item switching power supply have wide range of AC input voltage,built-in active PFC function,high efficiency up to 90%.
Features:
1, 800W high efficiency 48V single output switching power supply；
2, Built-in active PFC function power supply；
3, 48V 800W power supply with wide range of AC input voltage；
4, It have short circuit, over load, over voltage,over hearting protection;
5, 800W 48V power supply used in LED driver,stage light etc.
|
Parameter
|
|
Item NO.
|
K43-UP800S48
|
|
Output
|
Output voltage
|
+48V
|
|
Rated current
|
16.7A
|
|
Current range
|
0-16.7A
|
|
Rated power
|
801.6W
|
|
Ripple
|
480mVp-p
|
|
Adjustment range
|
±5%
|
|
Output accurancy
|
±1%
|
|
Line regulation
|
±0.5%
|
|
Load regulation
|
±0.5%
|
|
Set up,rise,hold up time
|
1s,50ms,5ms
|
|
Input
|
Input voltage range
|
90-264V AC
|
|
Input current
|
4A @ 220V AC
|
|
Frequency
|
47-63 Hz
|
|
Efficiency
|
>92% @ 220V AC
|
|
Power factor
|
>0.99@110V;>0.95@220V
|
|
Incursh current
|
Cold start 15A/115V,30A/230V
|
|
Leakage current
|
<3.5mA@240V AC
|
|
Protection
|
Over-load protection
|
110~180%Hiccup-type protection,automatic recovery
|
|
Over output-voltage ptotection
|
57-63V
|
|
Over-temp. protection
|
When the shell temp.>105℃,The output is closed, automatic recovery.
|
|
Environment
|
Working temp.and humidity
|
-20~50℃,10~90% RH,No condensation.
|
|
Storge temp. and humidity
|
-20~85℃,10~95% RH
|
|
Temperature drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC Standards
|
Safety standard
|
GB4943,EN60950-1
|
|
Pressure resistance
|
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:500VDC
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC standard
|
EN55022 CLASS A，EN61000-3-2
|
|
Others
|
Dimension
|
127(157)*102*45mm
|
|
Weight
|
1.2Kg
|
|
Remark
|
1,All parameters are measured at 220 V AC input, rated load, ambient temperature 25 ° C, humidity 70% 2,Accuracy: including setting error, line regulation, load regulation rate;
3,Ripple test: 30cm long wire with the power and load, load and 0.1u and 47u capacitance to 20MHz oscilloscope measured at the load side;
4,Line regulation: the rated load conditions, the input voltage changes from low to high measured;
|

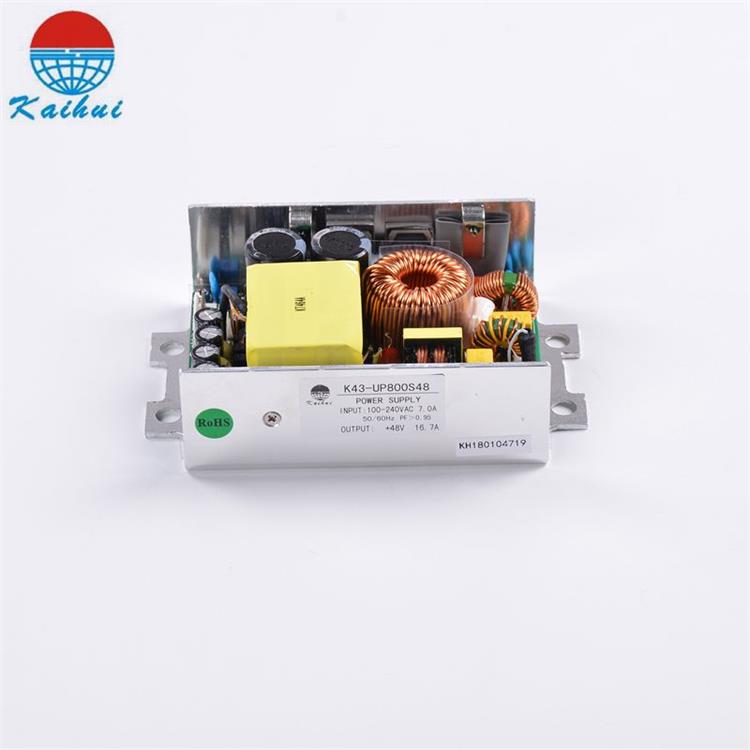

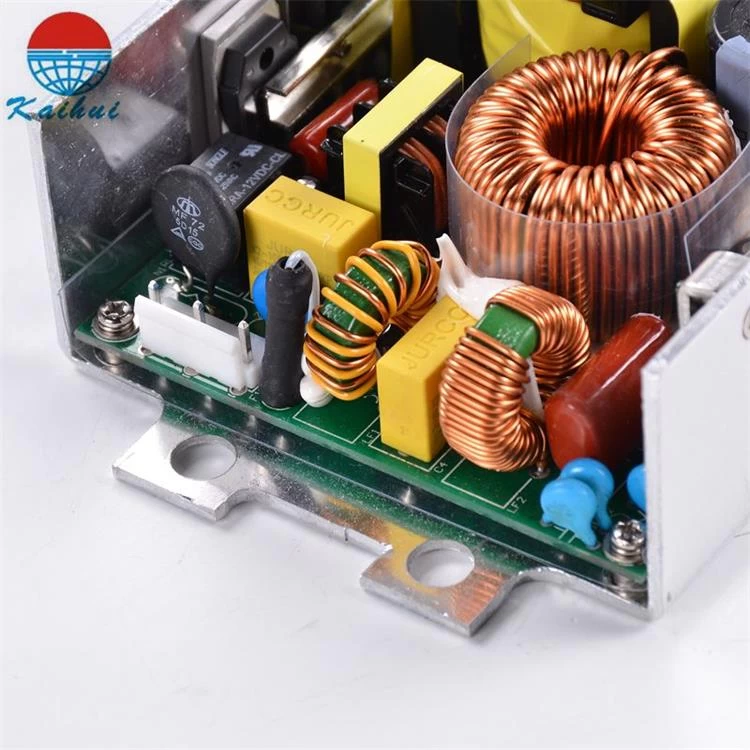

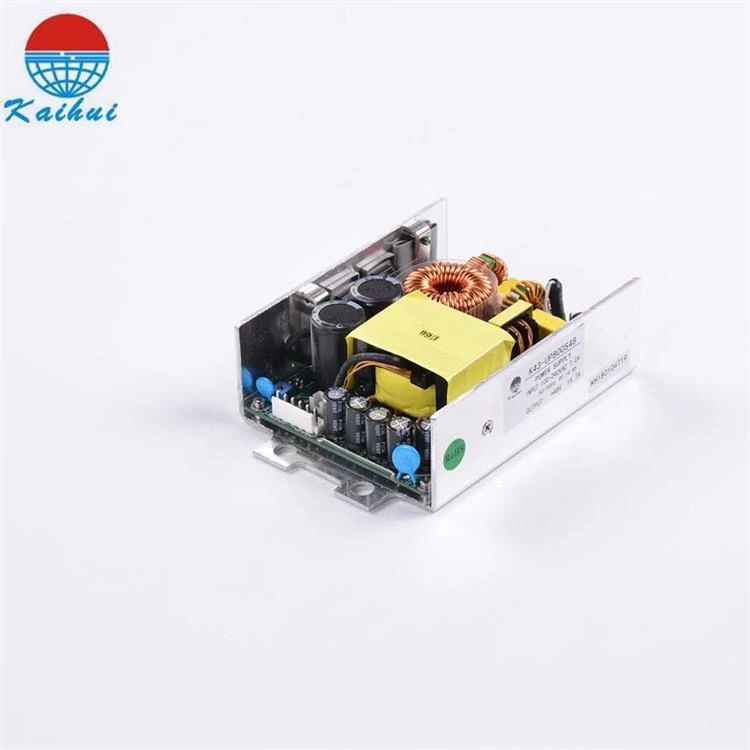

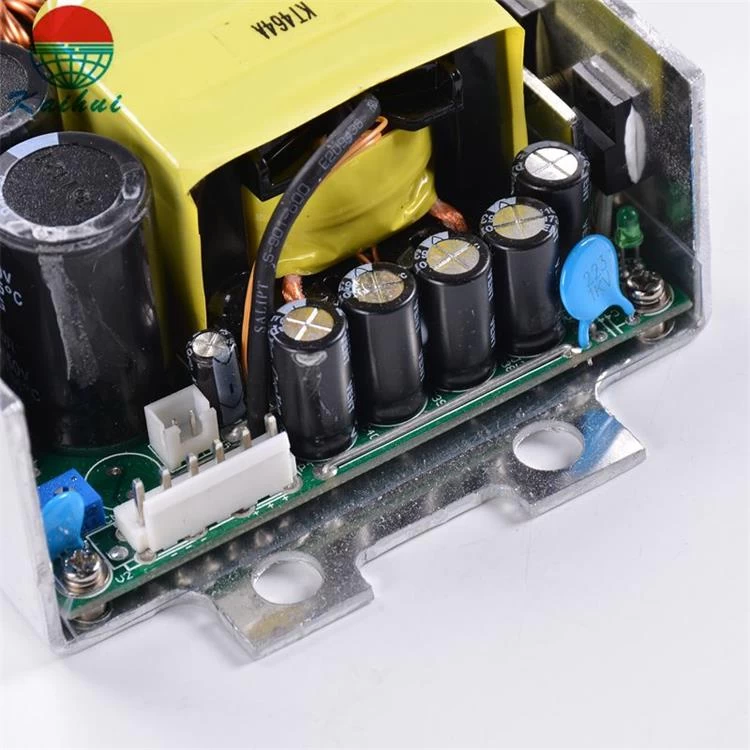

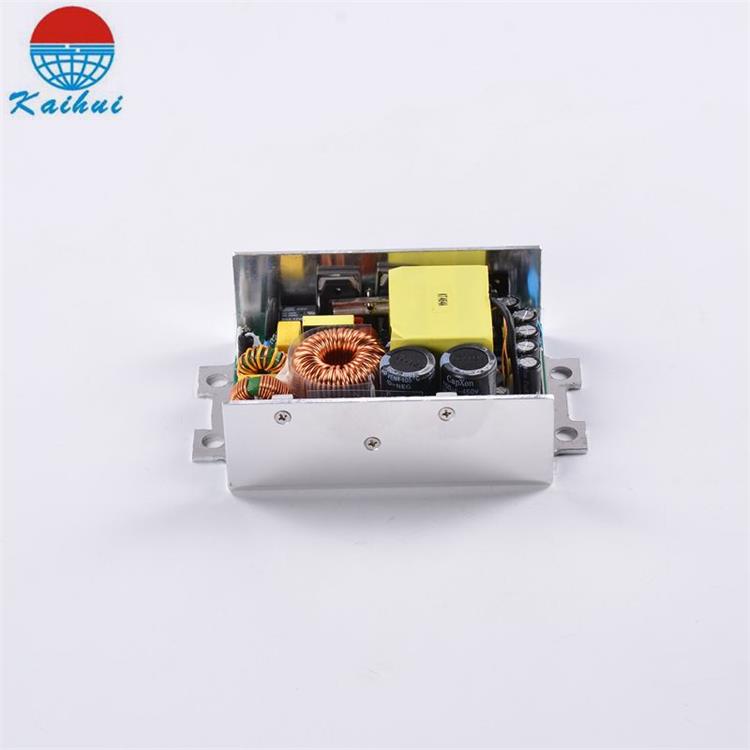

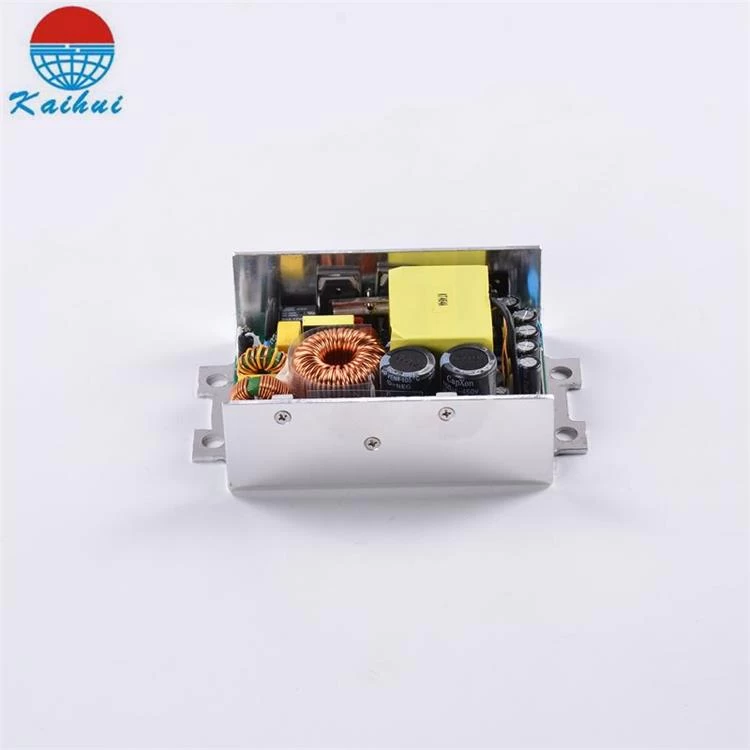

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
