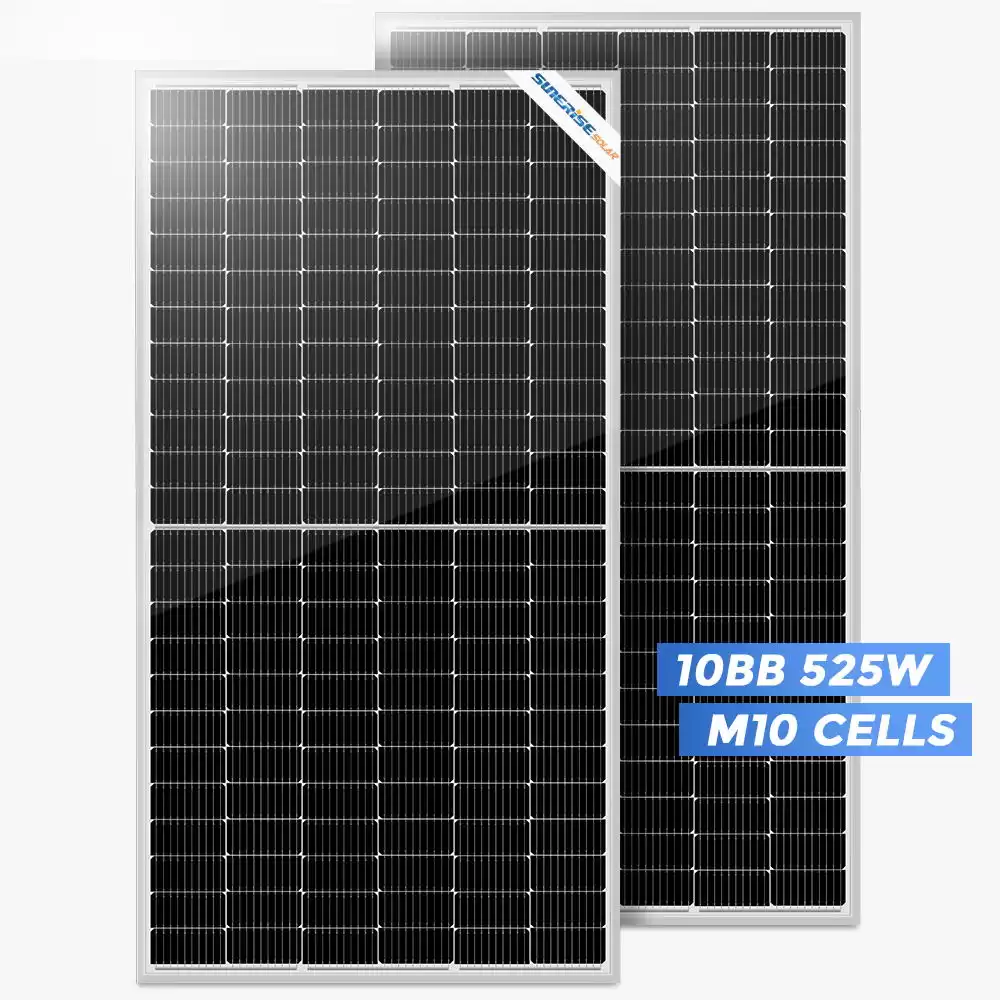

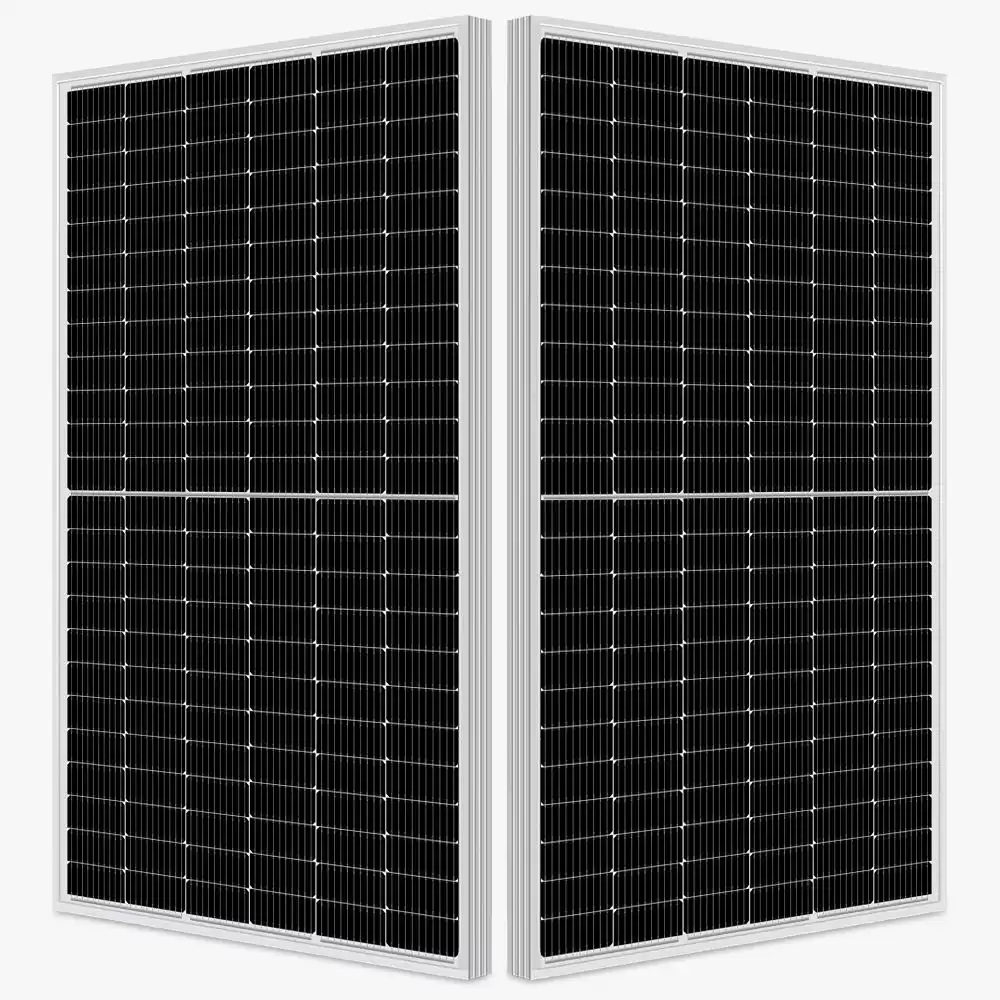

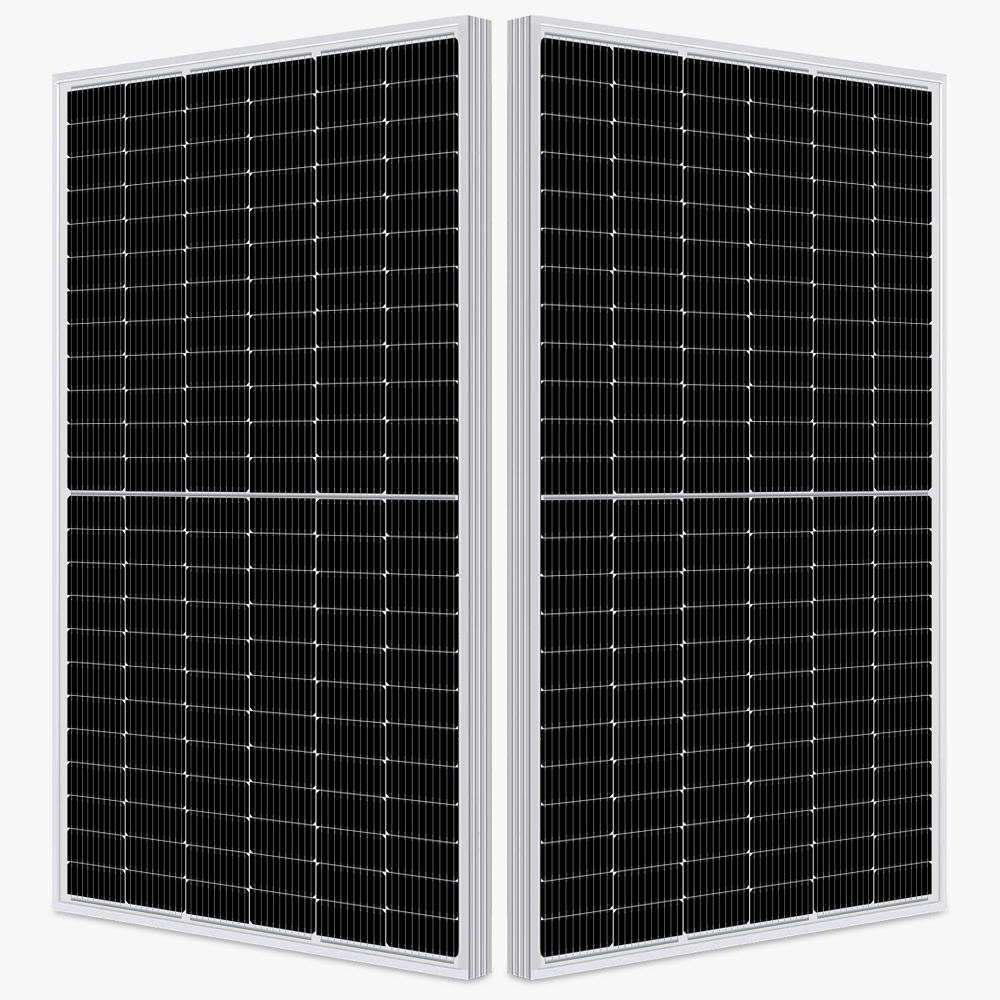

High Efficiency Low LID 525 Watt Solar Panel with Half-cut Technology
This 182 mono solar panel series have a rated power of up to 550 watt, a conversion efficiency of up to 21.18%, and a 30-year product and performance warranty. The 525 watt solar panel is an ideal for residential and commercial rooftop systems; ground mount compatible; compatible with on-grid and off-grid inverters.
JC(520-550)-144M Solar Panel Features
-
1/2-Cut Technology help to achieve higher power while minimizing hotspot issues
-
EL tested solar modules; Minimizes micro-cracks; PERC Solar Cells; Low power loss in cell connection; Better shading tolerance.
-
Capable of withstanding heavy snow load up to 5400 pa, wind load up to 3600 pa; Corrosion-resistant aluminum frame for extended outdoor use.
-
Anti-reflective, high transparency, low iron tempered glass with enhanced stiffness and impact resistance.
-
IP68 rated junction box provides complete protection against environmental particles and low-pressure water jets.
|
Electrical Characteristics(STC)
|
|
Module
|
JC(520~550)-144M
|
|
Module Type
|
JC520M
|
JC525M
|
JC530M
|
JC535M
|
JC540M
|
JC545M
|
JC550M
|
|
Maximum Power (Pmax)
|
520W
|
525W
|
530W
|
535W
|
540W
|
545W
|
550M
|
|
Maximum Power Voltage (Vmp)
|
41.2V
|
41.4V
|
41.6V
|
41.8V
|
42V
|
42.2V
|
42.4V
|
|
Maximum Power Current (Imp)
|
12.62A
|
12.68A
|
12.74A
|
12.80A
|
12.86A
|
12.91A
|
12.97A
|
|
Open-circuit Voltage (Voc)
|
49V
|
49.2V
|
49.4V
|
49.6V
|
49.8V
|
50V
|
50.2V
|
|
Short-circuit Current (Isc)
|
13.42A
|
13.48A
|
13.54A
|
13.60A
|
13.66A
|
13.72A
|
13.78A
|
|
Module Efficiency (%)
|
20.12%
|
20.31%
|
20.51%
|
20.70%
|
21.89%
|
21.09%
|
21.28%
|
|
Power Tolerance
|
0~+5W
|
|
Temperature Coeffcient of Isc
|
0.05%/℃
|
|
Temperature Coeffcient of Voc
|
-0.31%/℃
|
|
Temperature Coeffcient of Pmax
|
-0.35%/℃
|
