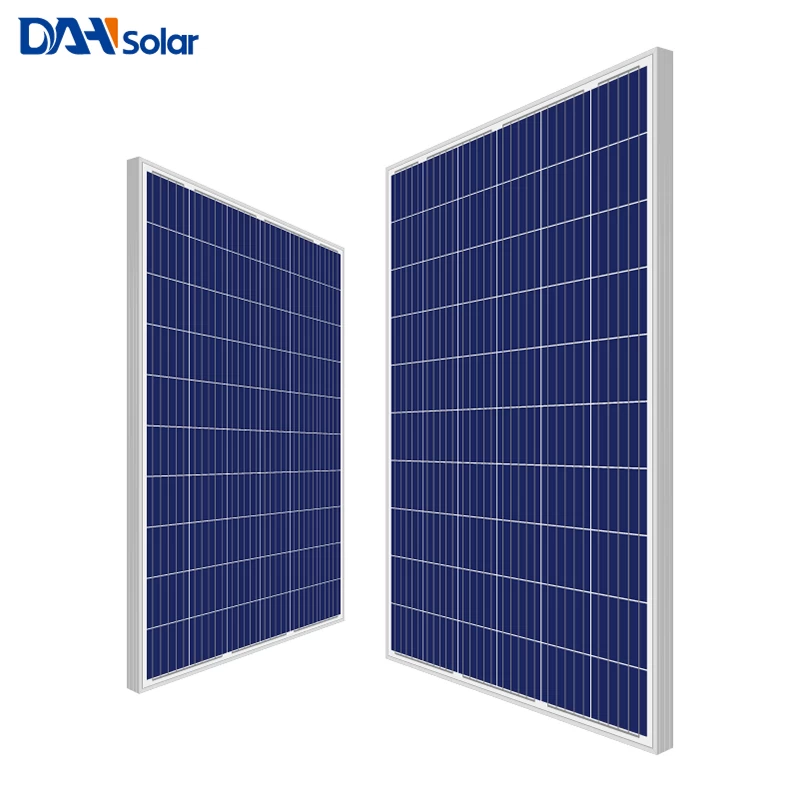

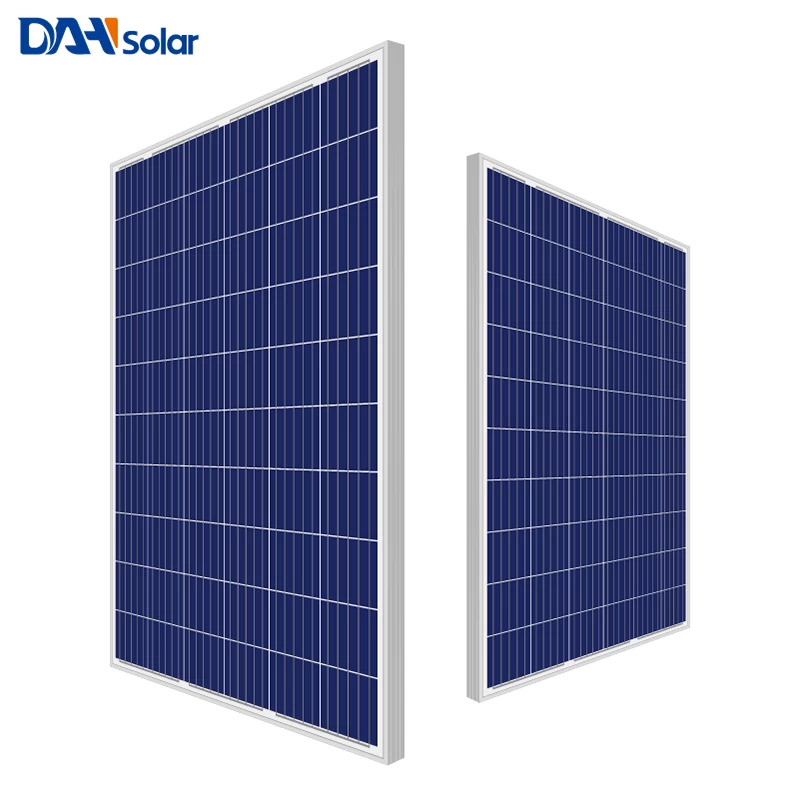

High-Efficient Poly Crystalline Panel 60 cells 280w/285w/290w/295W Intergrated with PERC Technology use for all type solar application system
Electrical Characteristics (STC)
|
Module Type
|
DHP60-280
|
DHP60-285
|
DHP60-290
|
DHP60-295
|
|
Maximum Power (Pmax)
|
280W
|
285W
|
290W
|
295W
|
|
Open-circuit Voltage (Voc)
|
38.7V
|
38.8V
|
39.0V
|
39.2V
|
|
Maximum Power Voltage (Vmp)
|
31.4V
|
31.6V
|
31.8V
|
32.1V
|
|
Short-circuit Current (Isc)
|
9.34A
|
9.48A
|
9.63A
|
9.77A
|
|
Maximum Power Current (Imp)
|
8.92A
|
9.02A
|
9.12A
|
9.19A
|
|
Module Efficiency(%)
|
17.12%
|
17.43%
|
17.74%
|
18.04%
|
|
Power Tolerance
|
0~+5W
|
|
Standard Test Environment
|
Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5
|
60cells Packing Details
|
Container
|
20GP
|
40GP
|
40HC
|
|
pcs/pallet
|
30
|
30
|
30
|
|
pallet/container
|
14
|
28
|
28
|
|
pcs/container
|
400
|
840
|
924
|
First-class solar panel warranty Reliable quality
1. 10 years material & technology guarantee
2. 25 years linear power output guarantee
3. 0-+5W Positive power output guarantee
4. 100% Double full EL inspection
Product Characteristics
· Excellent PID free performance.
· 5 busbar solar cell adopts new technology to improve the efficiency of poly solar panel , offers a better aesthetic appearance, making it perfect for rooftop installation
· Higher solar panel conversion efficiency(up to 18.04%) benefit from Passivated Emmiter Rear Contact (PERC) technology
· Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments
· Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal)
· Certified anti Salt-mist,anti ammonia corrosion performance,sand and storm test by TUV Rheinland and TUV Nord.
