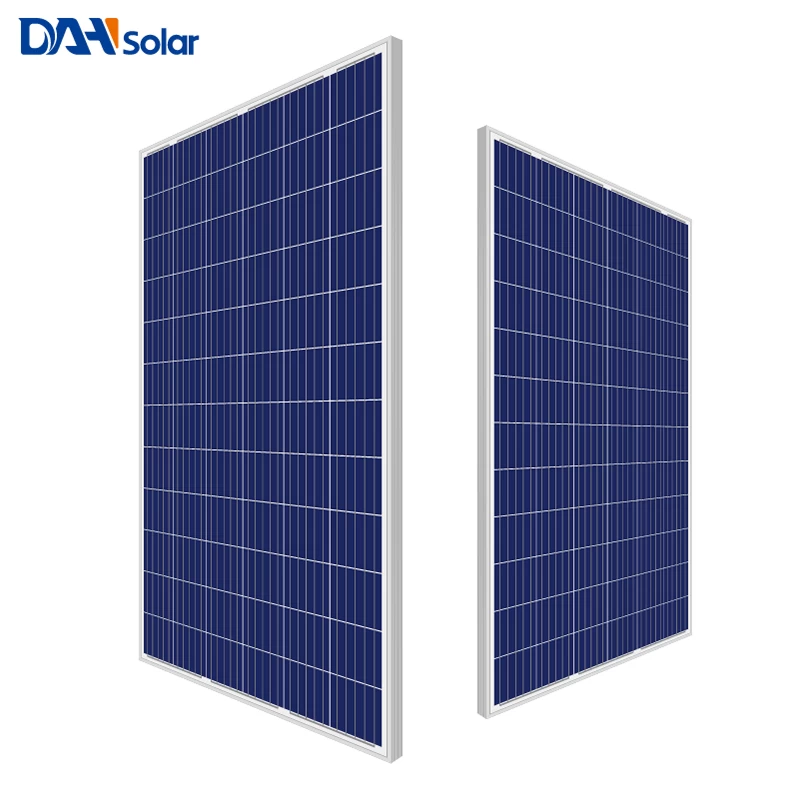

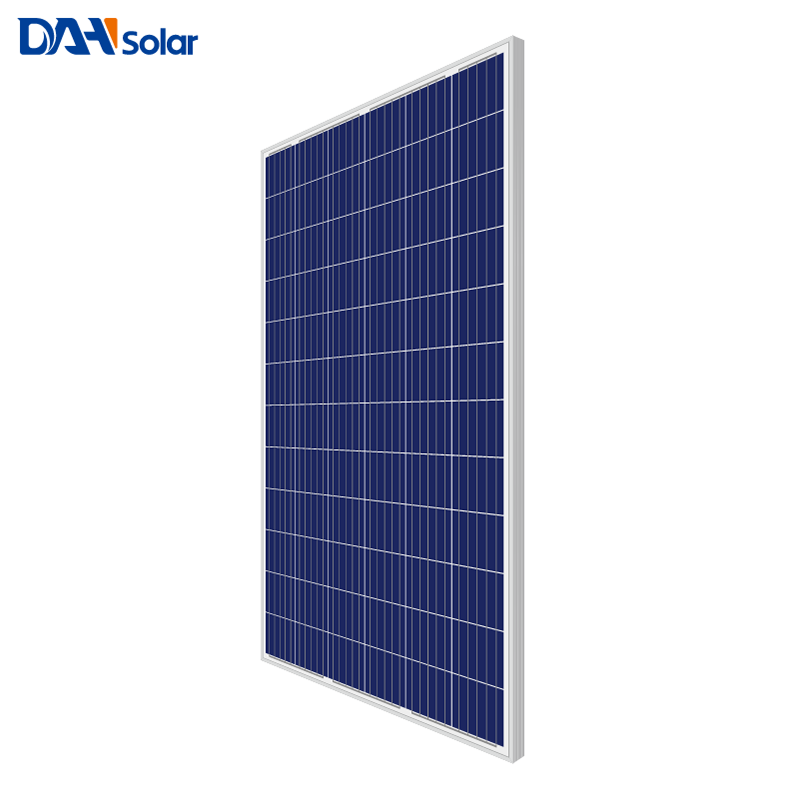

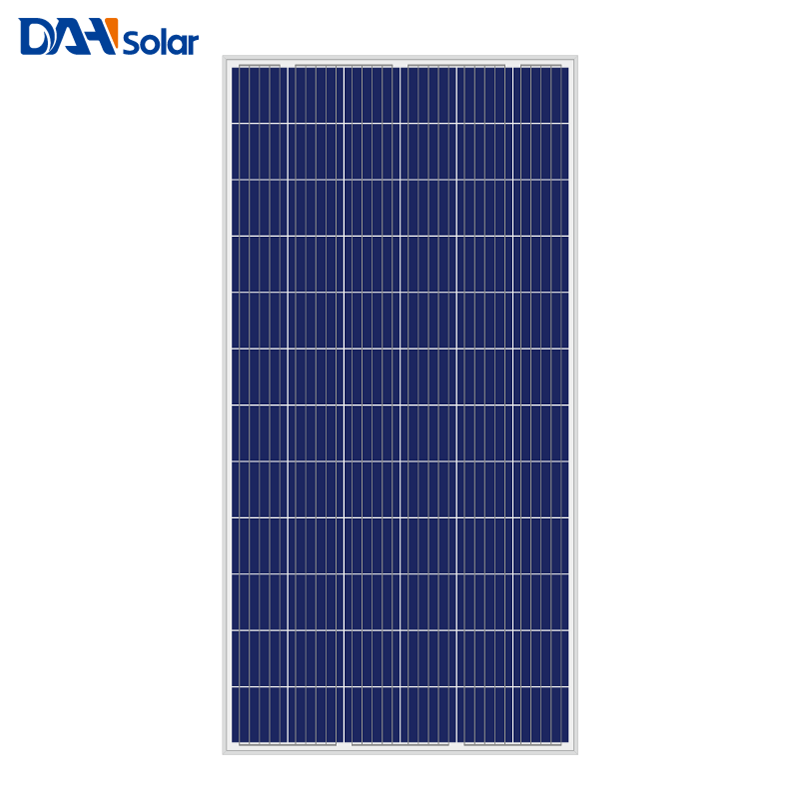

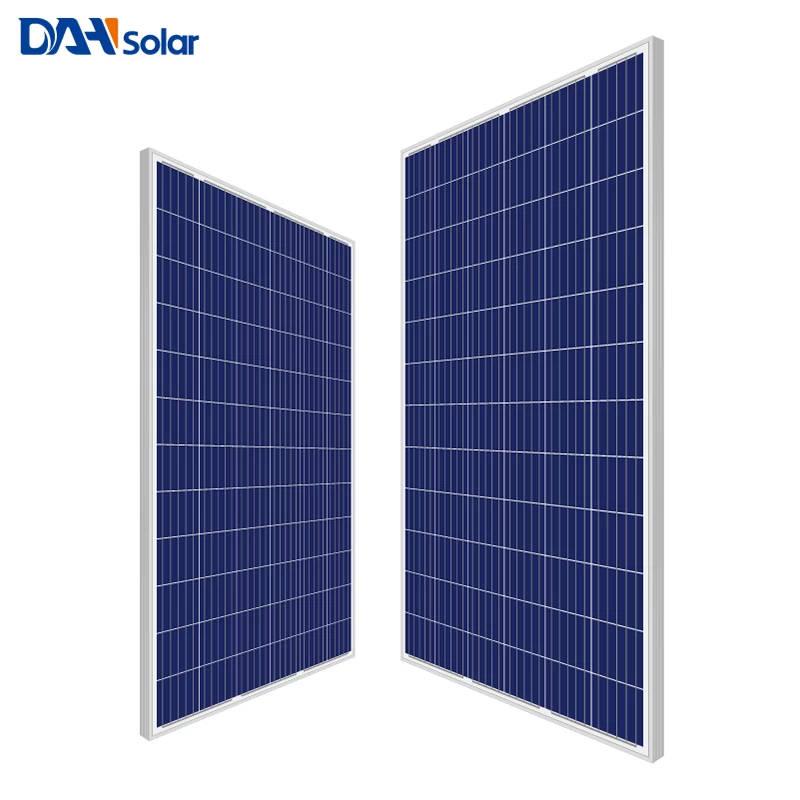

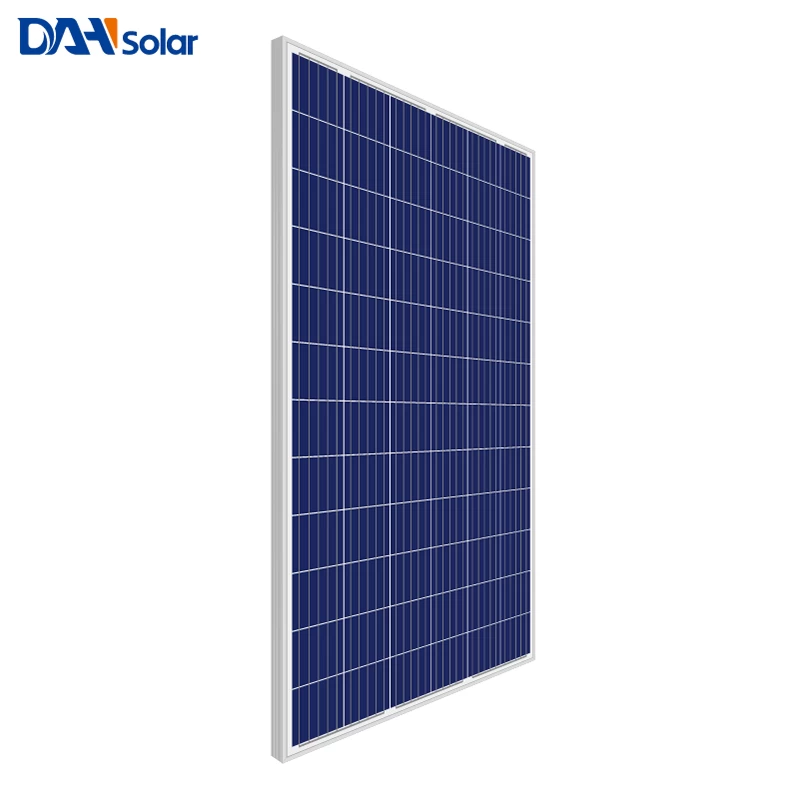

High-Efficient Poly Crystalline Panel 72 cells 335w/340w/345w/350W Intergrated with PERC Technology use for all type solar application system
Electrical Characteristics (STC)
|
Module Type
|
DHP72-335
|
DHP72-340
|
DHP72-345
|
DHP72-350
|
|
Maximum Power (Pmax)
|
335W
|
340W
|
345W
|
350W
|
|
Open-circuit Voltage (Voc)
|
46.3V
|
46.5V
|
46.7V
|
46.9V
|
|
Maximum Power Voltage (Vmp)
|
37.6V
|
37.7V
|
37.9V
|
38.1V
|
|
Short-circuit Current (Isc)
|
9.39A
|
9.51A
|
9.62A
|
9.73A
|
|
Maximum Power Current (Imp)
|
8.91A
|
9.01A
|
9.10A
|
9.19A
|
|
Module Efficiency(%)
|
17.28%
|
17.54%
|
17.80%
|
18.06%
|
|
Power Tolerance
|
0~+5W
|
|
Standard Test Environment
|
Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5
|
72cells Packing Details
|
Container
|
20GP
|
40GP
|
40HC
|
|
pcs/pallet
|
27
|
27
|
27
|
|
pallet/container
|
10
|
24
|
24
|
|
pcs/container
|
270
|
648
|
696
|
First-class solar panel warranty Reliable quality
1.10 years material & technology guarantee
2. 25 years linear power output guarantee
3. 100% Double full EL inspection
4. 0-+5W Positive power output guarantee
Product Characteristics
· Excellent PID free performance.
· 5 busbar solar cell adopts new technology to improve the efficiency of Mono solar panel , offers a better aesthetic appearance, making it perfect for rooftop installation.
· Higher solar panel conversion efficiency(up to 18.06%) benefit from Passivated Emmiter Rear Contact (PERC) technology.
· Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments.
· Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
· Certified anti Salt-mist,anti ammonia corrosion performance,sand and storm test by TUV Rheinland and TUV Nord.
