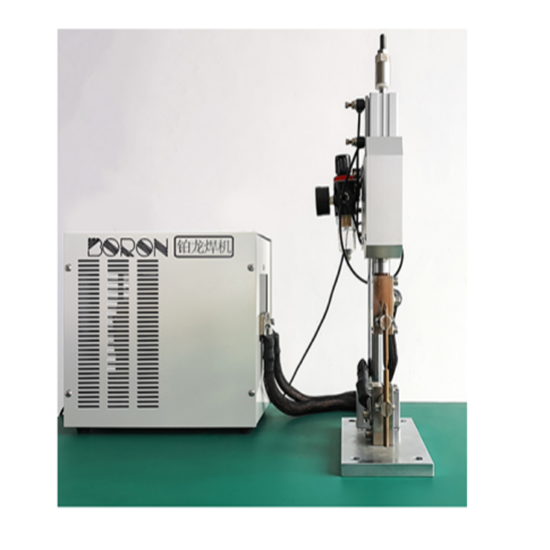

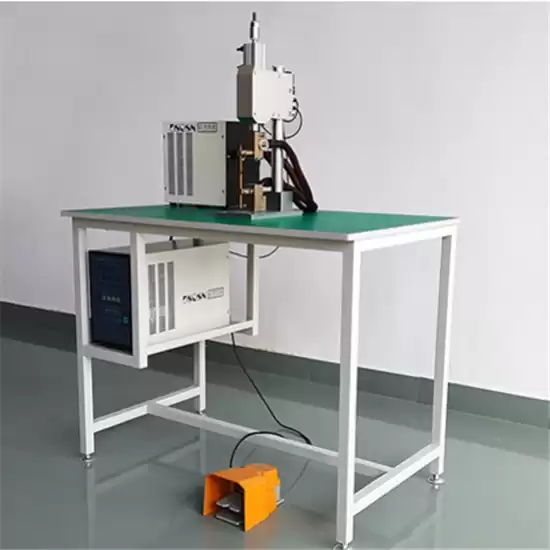

High Efficiency Precision Energy Storage Energy Saving, Spot Welding Machine

Wechat:18659217588

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Certificate CE ROHS Certificate

High Efficiency Precision Energy Storage Energy Saving, Spot Welding Machine



Product overview:

Energy saving and high efficiency: low instantaneous power, high power factor, small impact on the power grid, energy saving, stable output voltage, good consistency; solid welding, no discoloration of welding points, saving grinding process, high efficiency, widely used for clock particles and welding, battery connector, hardware, etc



Characteristic:

1. The control performance of microcomputer CPU with DC inverter technology is particularly stable, and the setting is simple and convenient.

2. The pressure knob is made according to the international standard customer. The pressure of two welding pins is even, which will not cause faulty welding, and the welding accuracy is higher.

3. The short welding time with the traditional AC pulse capacitor welding machine has no effect on the internal characteristics of the cell, the change of the internal resistance of the battery, the voltage and capacity.

4. After welding, the battery surface is cleaner, with small burr, very small welding spark, and no blackening of welding spot.

5. The blue LCD screen graphically displays the current working status, with clear interface, beautiful appearance and more humanization.

6. The power supply has strong adaptability, will not cause interference to the power grid, and the welding is firm.



Specification:

Name

Precision Energy Storage Spot Welder

Input power

AC380±10%, 50/60HZ

Power consumption

360W

Outline size

1000L*600W*1310H (mm)

Overall weight of equipment

120KG

Maximum output power of transformer

35KVA

Maximum short circuit output current

8000A

Rated capacity

500J

Welding voltage adjustment

50-350VDC

Welding time

1.0mS-20.0mS adjustable, accuracy: 0.1mS

Number of welding pulses

2

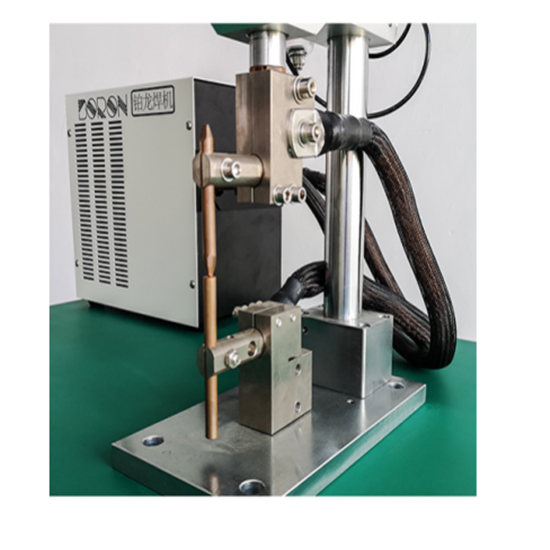

Welding needle configuration

1.8mm/3mm/6mm

Adjustable distance between welding needles

0-20mm

Welding speed

0.5-0.8S/single welding

Welding thickness

0.08-0.3mm nickel plated strip(Planar)

0.2-0.5mm nickel plated strip (Bump)

Parameters can be stored

10 groups
