High-Efficiency Solar Panel Wholesale from solar panels suppliers
High customer value
• Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance Of System) cost,
shorter payback time
• Lower guaranteed rst year and annual degradation
• Designed for compatibility with existing mainstream system components
• Higher return on Investment
High power up to 505W
• Large area cells based on 210mm silicon wafers and 1/3-cut cell technology
• Up to 21.1% module e ciency with high density interconnect technology
• Multi-busbar technology for better light trapping e ect, lower series resistance
and improved current collection
High reliability
• Minimized micro-cracks with innovative non-destructive cutting technology
• Ensured PID resistance through cell process and module material control
• Resistant to harsh environments such as salt, ammonia, sand, high temperature
and high humidity areas
• Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load
High energy yield
• Excellent IAM (Incident Angle Modi er) and low irradiation performance,
validated by 3rd party certi cations
• The unique design provides optimized energy production under inter-row
shading conditions
• Lower temperature coecient (-0.36%) and operating temperature
Product Description
Large area cells based on 210mm silicon wafers and 1/3-cut cell technology
Up to 20.7% module e ciency with high density interconnect technology
Multi-busbar technology for better light trapping e ect, lower series resistanceand improved current collection.
|

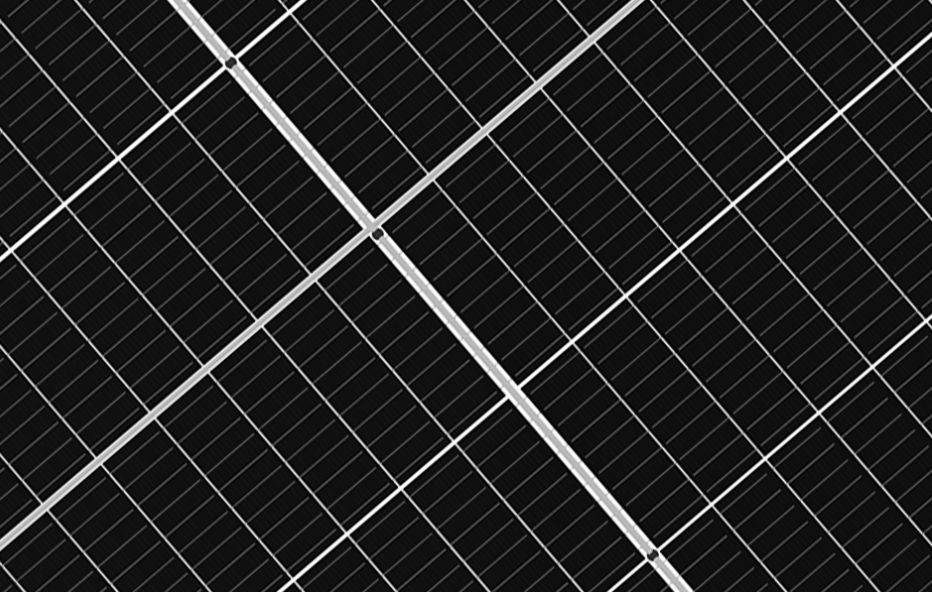

Solar Cell
-210mm large size silicon wafer
-PERC monocrystalline battery
-Adopt innovative version design
-Power can exceed 500W
-up to 21% efficiency
|
Frame
-conventional frame
-Silver frame
-Boost bearing capability and prolong service life
-Serrated-clip design tensile strength
-Seal-lip designglue injection
|
|
