High Electrical Conductivity Carbon Cloth Used For Supercapacitor And Battery Electrode Materials
SPECIFICATIONS
This model Conductive carbon cloth is specially used for the electrode (including large battery electrodes), high-end shielding materials, electrical energy conversion thermal material research.
This kind carbon cloth is with high electrolyte absorbent performance, suitable for improve supercapacitor and battery capacity.
|

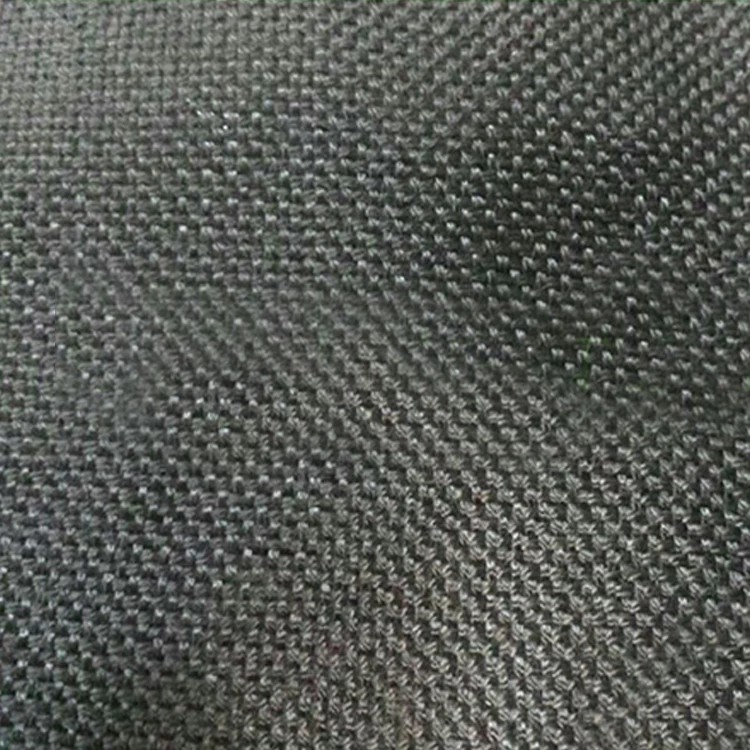

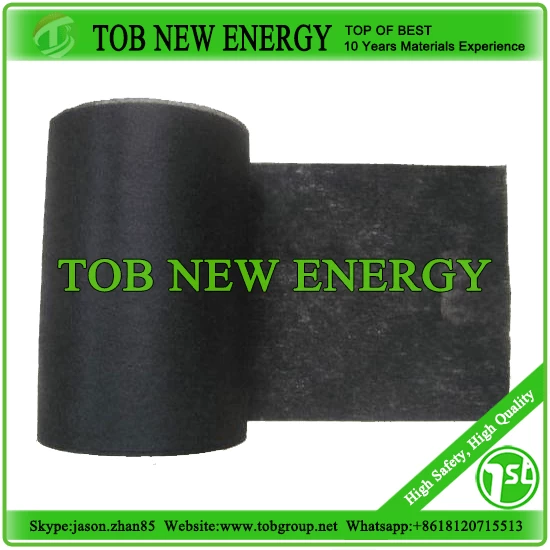

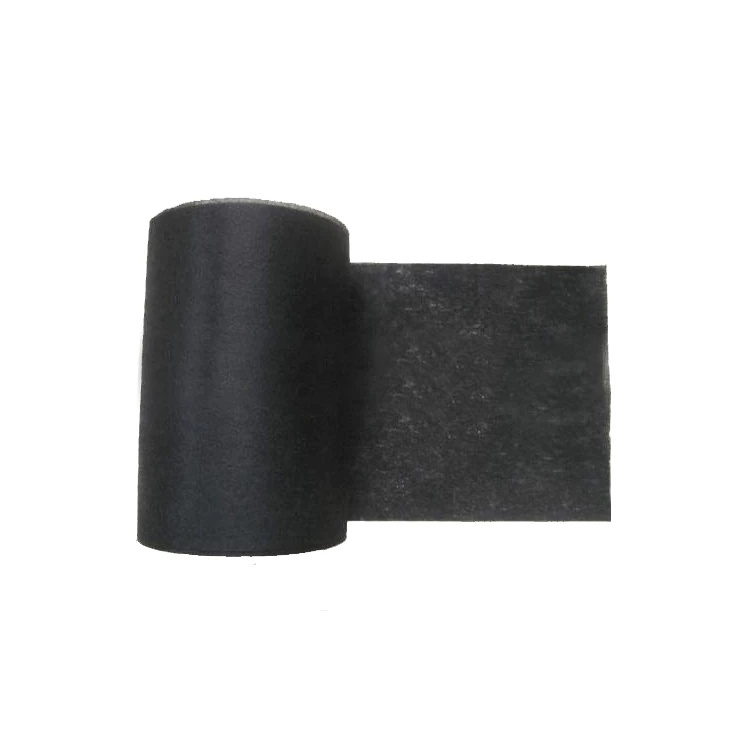

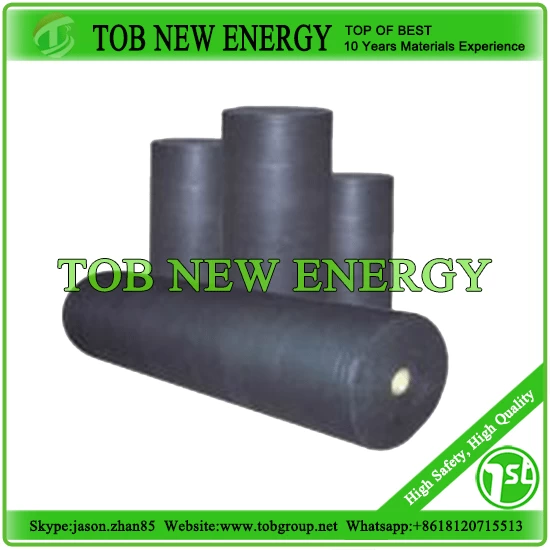

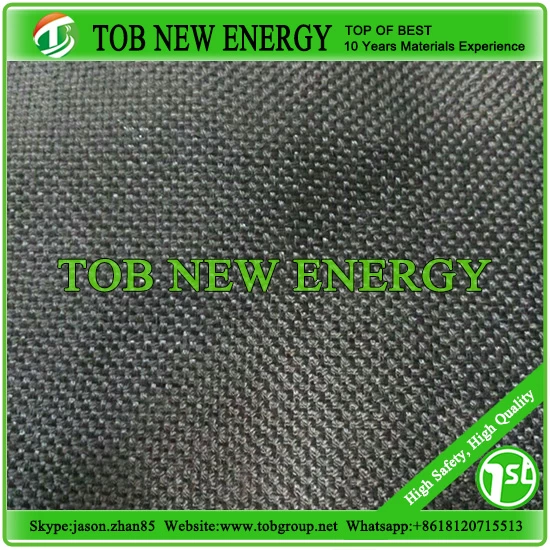

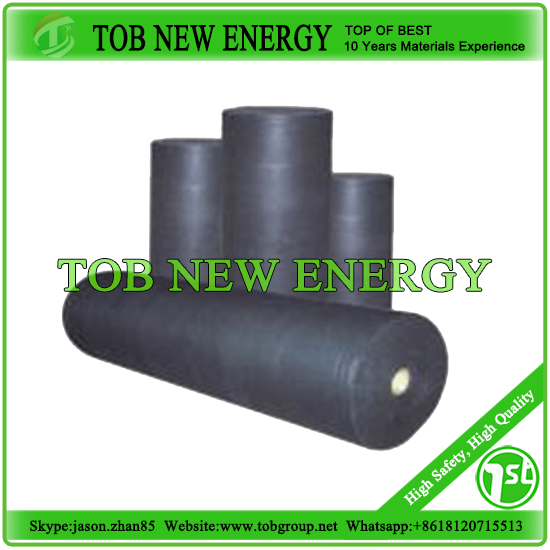

Conductive carbon cloth TOB-CH-C-10
|
|
Item
|
Standard
|
Result
|
|
Length impedance (≤10cm)
|
2-15Ω.cm
|
10Ω.cm
|
|
Carbon content ( %)
|
≥95%
|
≥95%
|
|
H2O (%)
|
＜0.3
|
＜0.15
|
|
G/m2
|
200±10g/m2
|
200g
|
|
Specific surface area
|
1000m2/g
|
1000m2/g
|
|
Tensile strength
|
600-800 MPa
|
700 MPa
|
|
Thickness
|
0.30±0.1mm
|
0.30mm
|
|
Length
|
100m
|
100m
|
|
Width
|
1.0m
|
1.0m
|
|
Water imbibition (min/cm)
|
1min/10cm
|
1min/15-20cm
|
