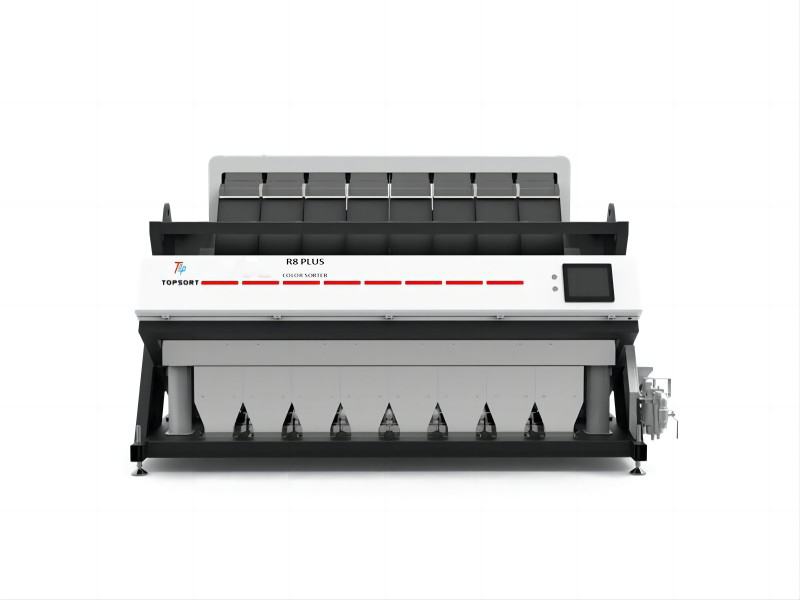

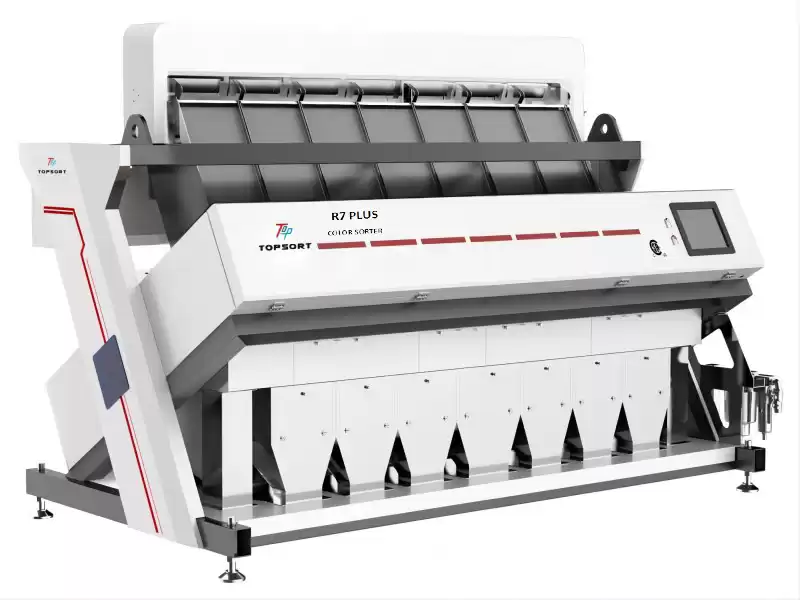

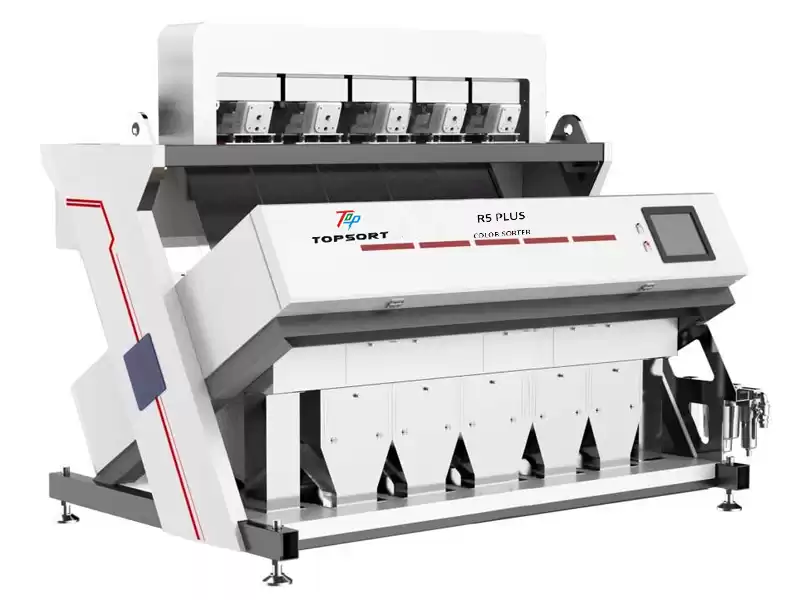

High-end RC series color sorter machine integrates advanced visible sorting technologies.
The design of every detail of the product fully considers the user's usage habits, makes operation and maintenance simple and convenient.
R PLUS Series Multifunction Color Sorter Features
1. Smart Quality Inspection
Online, automatic, digital and intelligent quality management is realized through online inspection to raw materials, finished products and wastes, as well as real time uploading the data to control system with various mobile terminals.
2. Cloud high-dimensional technology identifies material fingerprint with intelligent perception. Cloud quality sorting leads the future.
3. VNIR multi-spectral deep fusion sensing technology with excellent color recognition ability and excellent biometric recognition ability ensure rejecting yellow rice without carrying chalky rice and rejecting chalky rice without carrying yellow rice. At the same time, it realizes the separation of non-rice impurities. Technology makes everything possible.
4.Expandable and Compatible Design:Expandable 3-lens structure,compatible with 4-lens algorithm
Product Advantages
Technology Parameters
| Model |
Thoughput(T/H) |
Carryover Rate(Bad:Good) |
Accuracy(%) |
Voltage(V/HZ) |
Power(KW) |
Weight(KG) |
Dimension(mm) |
| R3 PLUS |
2-3.5 |
>30:1 |
99.99% |
220/50/60 |
2.2 |
960 |
1856*1829*1893 |
| R4 PLUS |
2.5-4 |
>30:1 |
99.99% |
220/50/60 |
2.9 |
1120 |
2171*1829*1893 |
| R5 PLUS |
3-5 |
>30:1 |
99.99% |
220/50/60 |
3.7 |
1280 |
2489*1829*1893 |
| R6 PLUS |
3.5-6 |
>30:1 |
99.99% |
220/50/60 |
4.4 |
1440 |
2801*1829*1893 |
| R7 PLUS |
4-7 |
>30:1 |
99.99% |
220/50/60 |
5.2 |
1600 |
3116*1879*1893 |
| R8 PLUS |
4.5-8 |
>30:1 |
99.99% |
220/50/60 |
5.9 |
1800 |
3431*1879*1893 |
| R10 PLUS |
5-10 |
>30:1 |
99.99% |
220/50/60 |
7.3 |
2150 |
4071*1879*1893 |
Why Choose TOPSORT Color Sorter Machine
Top technology
♠ Latest deep learning technology, to achieve excellent color selection, type selection and material sorting functions, to overcome the traditional color sorting models can not sort small spots, small worm holes, small short teeth, small wrinkled skin, etc.
♠ Ultra HD imaging technology to see subtle defects with 4 times higher resolution；
♠ High computing power deep learning platform with 4 times more data processing power；
♠ Light source processing system, using low-temperature concentrated LED light source, intelligent dimming, 16 million kinds of color mixing, energy saving and more durable
♠ Intelligent operation platform, easy to operate, easy to grasp the real human-machine dialogue, intelligent docking；
Top quality
Equiped with imported famous brand key components to guarantee the reliability.Professional production team, each step is inspected by professional quality inspectors before moving on to the next process Before shipping the machine,our engineer will test and save parameters,make sure they are in good condition.
Free Training
We supply complete training for all customers for free,we train in the following ways:
1. Engineers go to customer site to explain how to adjust, use and maintain the machine.
2. Customers can also come to our factory to learn the knowledge related to the machine.
3. Online remote control training or video training is available if customer no need send engineer.
Competitive Price
Competitive price thanks to the mass production and lean production
Remote Control For Global
Machine equipped with WIFI device, online solve software parameters setting problems.
Fast Delivery
Safe stock of standard parts of the machine guarantees the quick delivery of the machine
Wealth of experience
More than 18 years of professional manufacturing experience, more than 10 years exporting experience overseas.Products are exported to more than 100 countries and regions. We can give you best sorting solutions according to your raw material .
FAQ
Question 1: What are your advantages compared with your competitors?
Answer:With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price. 2). Good customer service: Fast response to any inquiry or question. 3). On-time delivery.
Question 2: Are you a manufacturer?
Answer: Yes, we are glober manufacturer with more than 18 years' color sorter producing and export experience.
Question 3: How to install and use the machine?
We will supply the installation instructions or videos and our engineers will train the operators.
Question 4. How long about the guarantee period?
Two years. The warranty period starts on the day of delivery.We supply lifelong software upgrade services for our customers.
Question 5: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual, test report and other data sheets related shall be provided by us.
