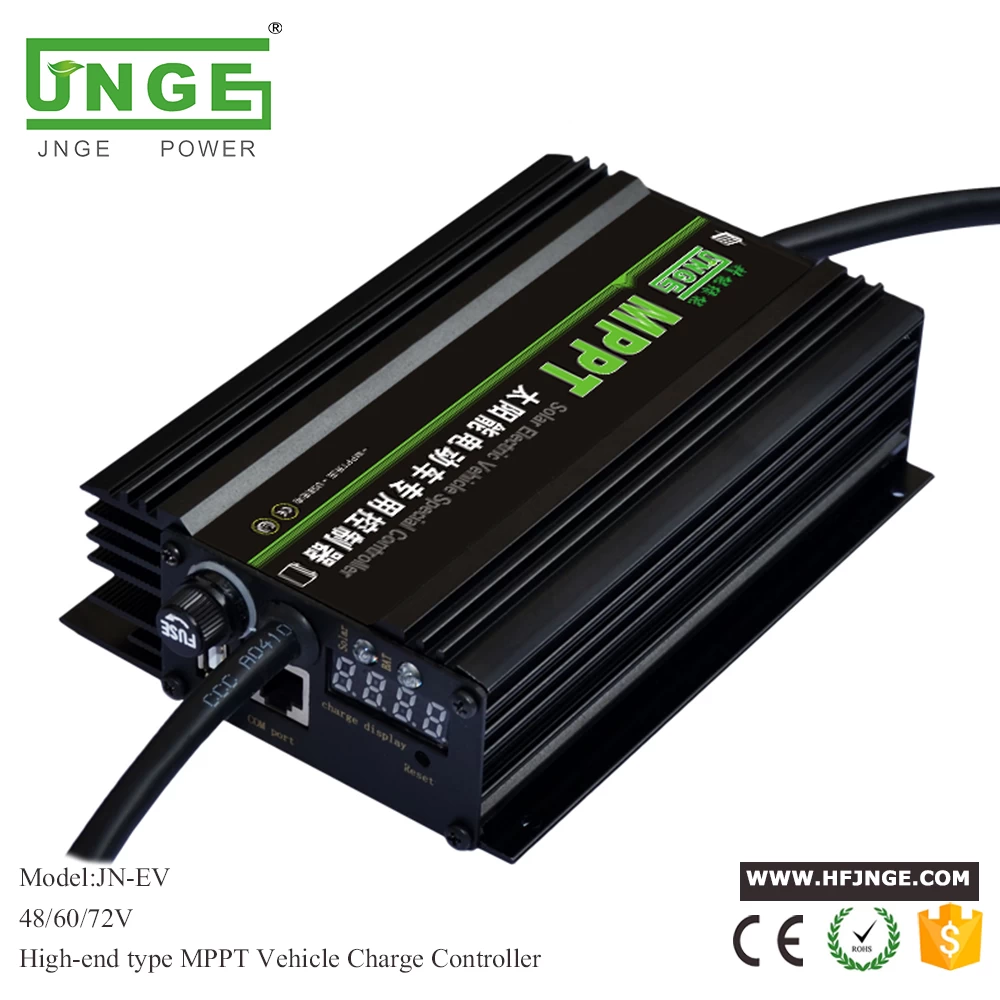

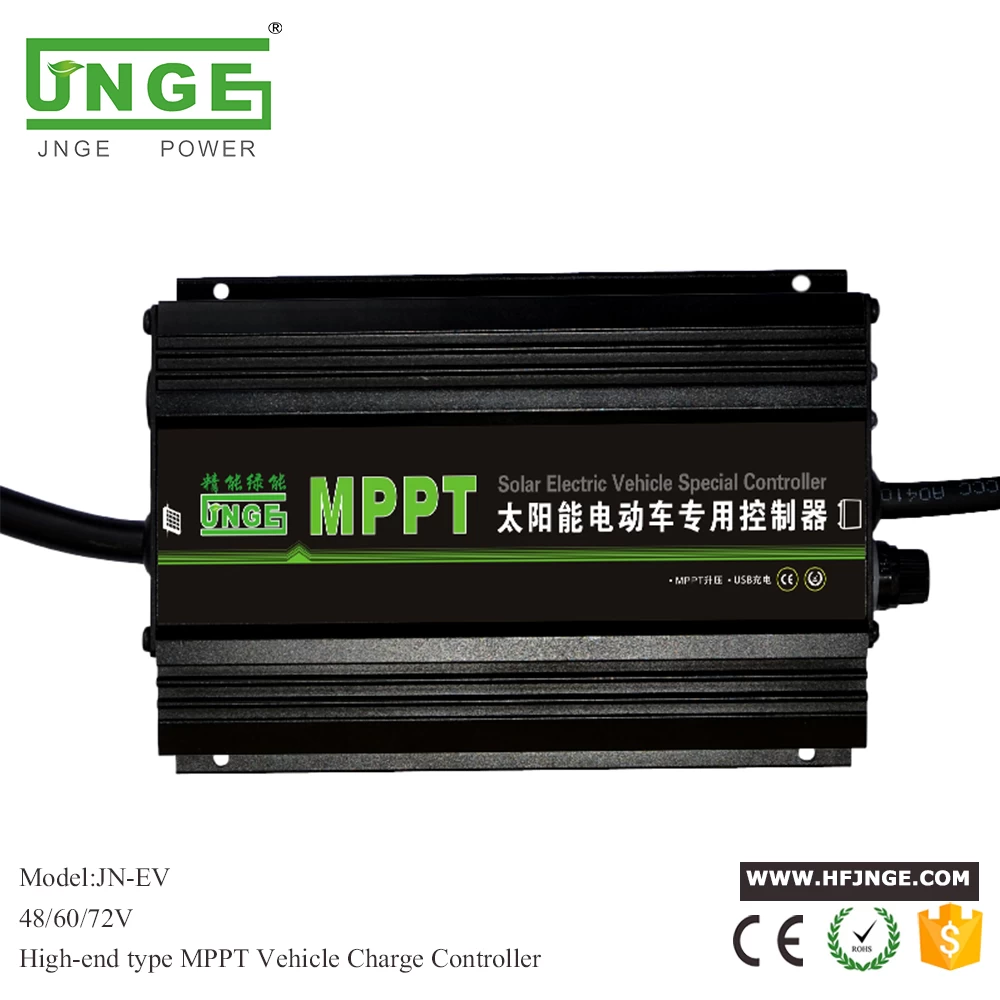

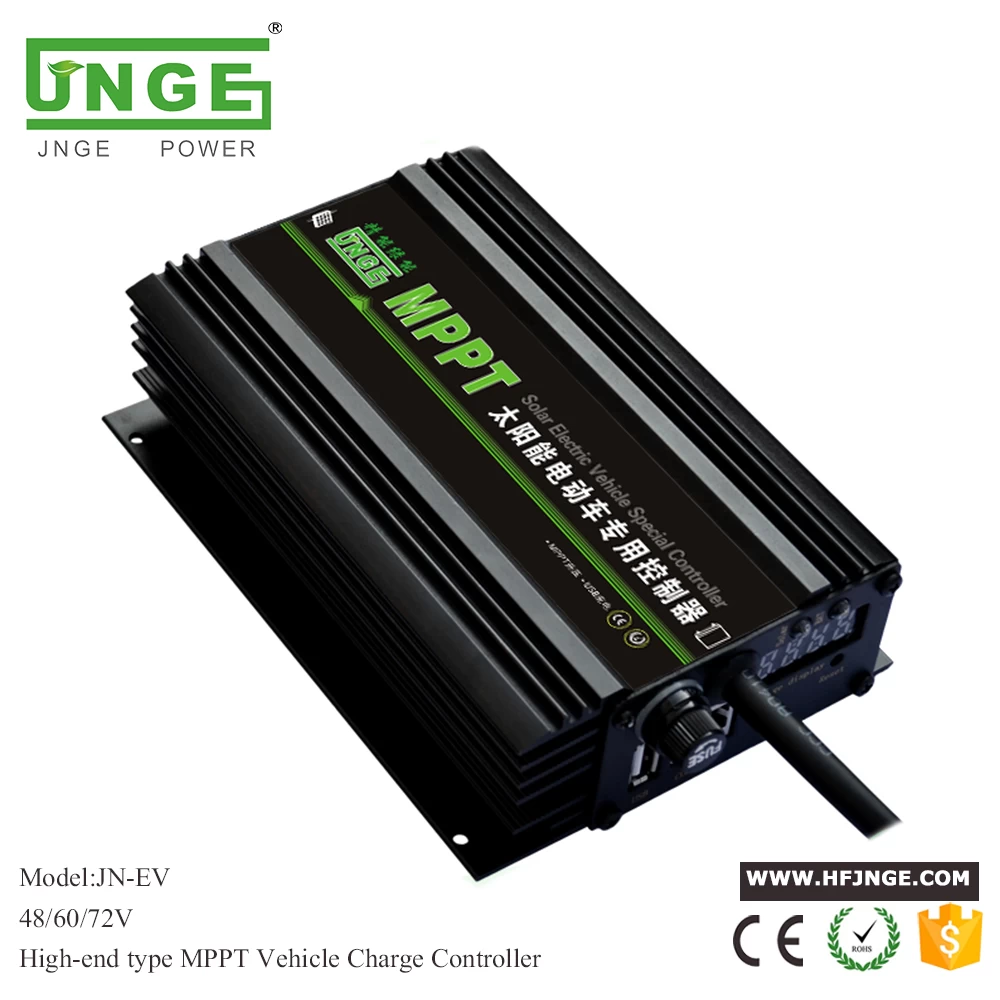

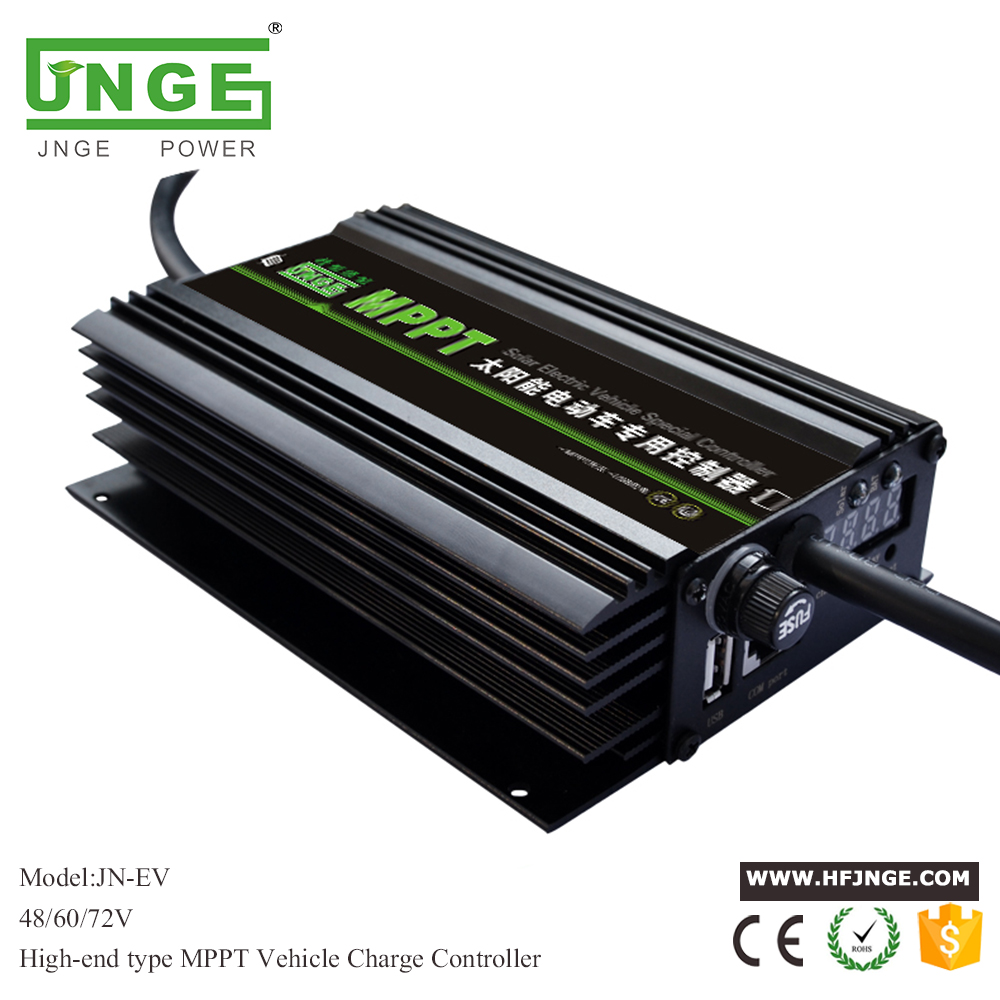

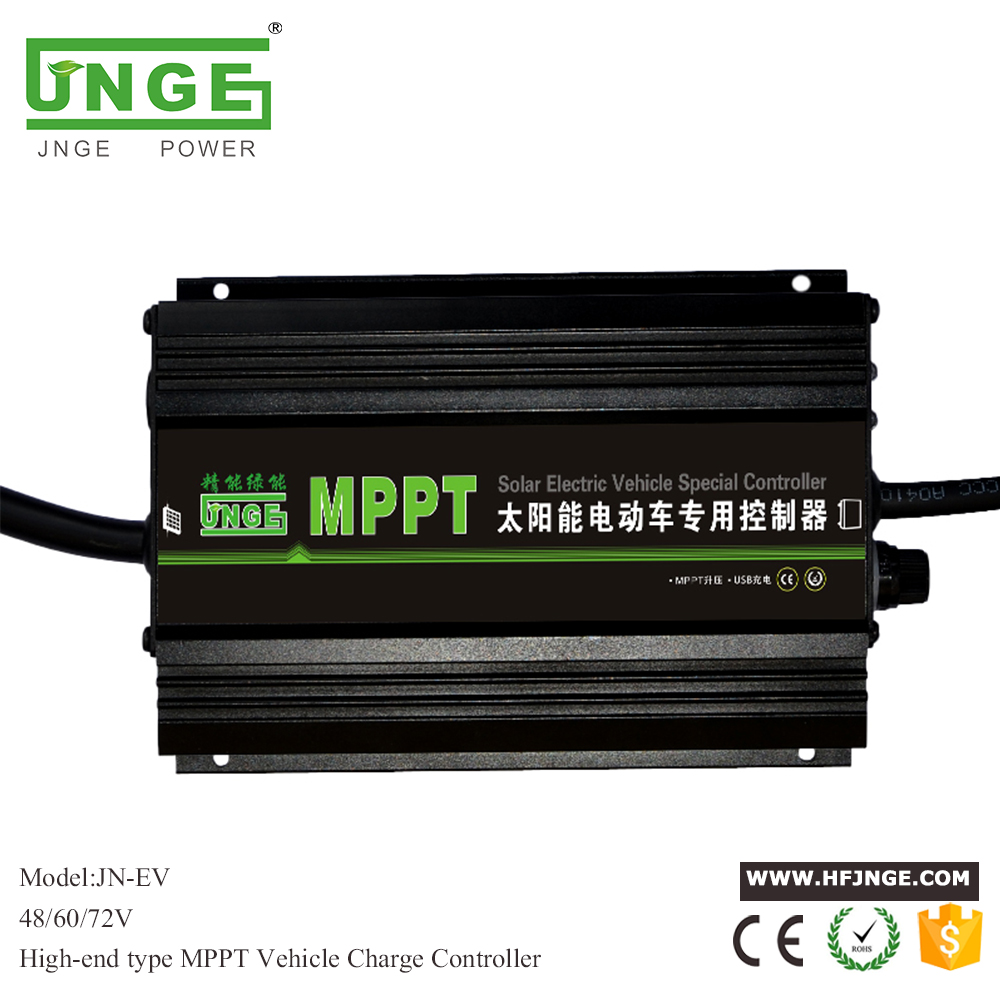

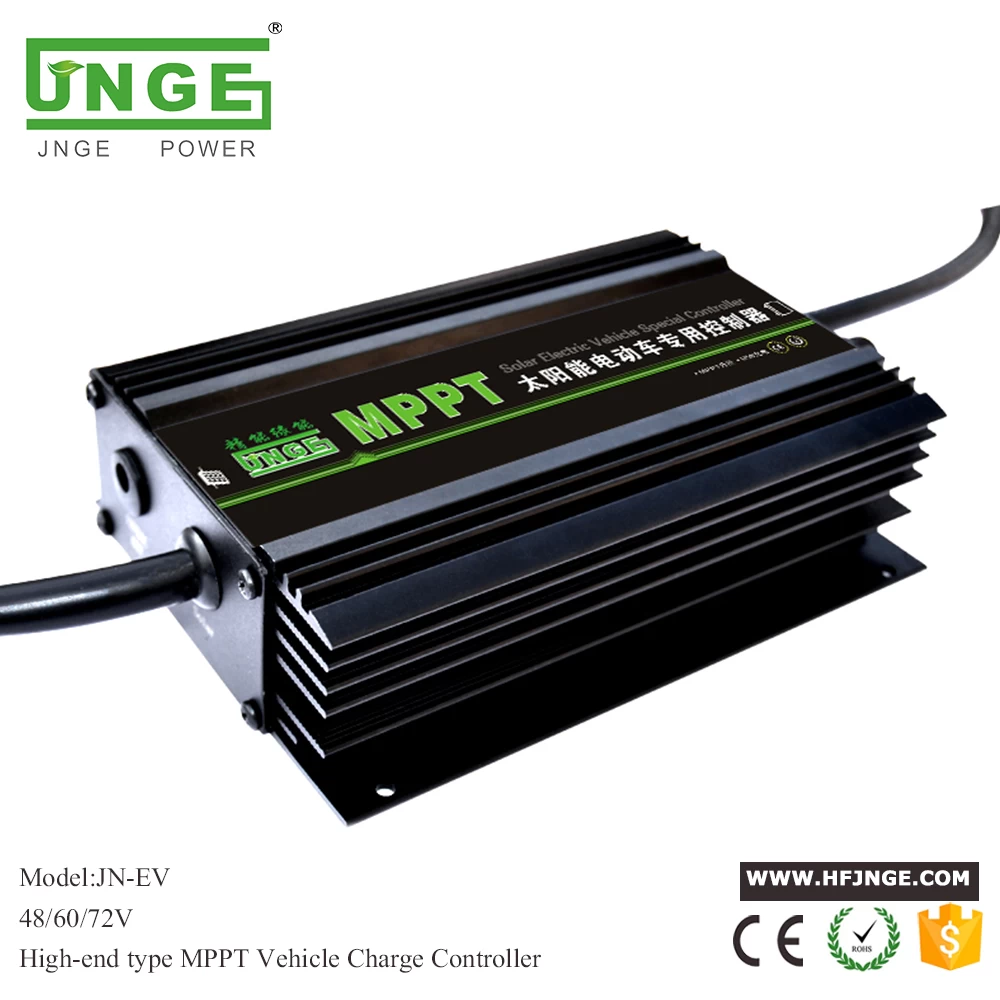

High-end type MPPT solar Electric vehicle special controller with USD and DC supply
Main feature:
1.High performance booster MPPT charging ways.
2. The system uses solar panel power supply, reduce the power consumption of the battery.
3. The LED status indicator.
4. Digital tube current-time display charging current, battery voltage, and solar energy input voltage, running status be clear at a glance.
5.Complete over-charge, anti-recoil, anti-reverse, and short circuit protection.
6. The DC 12V 6W output load, and humanized design USB output, the users can directly connect the USB interface to charge their phone.
7.Internal uses short-circuit jump needle design, can easily switch 48v and 60v battery (Order 72v battery need explain in advance).
8. The system USES a fool type design, the user does not need any settings.
9. The system USES RJ45 communication interface, to realize the remote monitoring.
10. One-click system reset function, add a layer of protection for the system.
Technical parameter :
|
PV open circuit voltage
|
16V～50V
|
|
MPPT Voltage range
|
16V～45V
|
|
MPPT efficiency
|
≥99%
|
|
Efficiency
|
≥95%
|
|
No-load loss
|
< 5mA
|
|
Solar max. input power
|
18V200W,36V400W
|
|
Communication distance
|
≥5m
|
|
Battery
|
48Vor 60Vor 72V
|
|
Over-voltage protection
|
48V-58V，60V-72V,72V-87V
|
|
12VDC power
|
6W
|
|
USB charge power
|
5W
|
|
system reset
|
One-click reset
|
|
Anti-reverse protection
|
When the battery positive and negative reverse connection, the fuse will fuse, the user to replace 10A, φ5×20 glass tube fuse.
|
|
Working temperature
|
-35℃ - +65℃；
|
|
Net Weight/
Gross weight
|
0.65Kg
0.90Kg
|
|
Size
|
153×111×43(mm)
|
